2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box

2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box

  • High Light

    IP30 Fiber Optic Termination Box

    ,

    FTB Fiber Optic Termination Box

    ,

    NAP Optical Termination Box

  • Material
    PC+ABS
  • Color
    White
  • Max Capacity
    2core
  • Max. Fusion
    1core
  • Fiber Type
    Singlemode Multimode
  • Dimension
    115*80*25mm
  • Adapter
    2 SC Or 1 LC Duplex
  • Input Cable Diameter
    5.8mm
  • Output Cable Diameter
    2*1.6mm Or 2*3.0mm Flat Cable
  • Application
    Ftth Indoor Network
  • Mounting Way
    Wall Mount With Screw
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB86P
  • Minimum Order Quantity
    500pc
  • Price
    Negotiable
  • Packaging Details
    100pcs/box
  • Delivery Time
    7days
  • Payment Terms
    T/T, L/C, Western Union

2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box

2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box

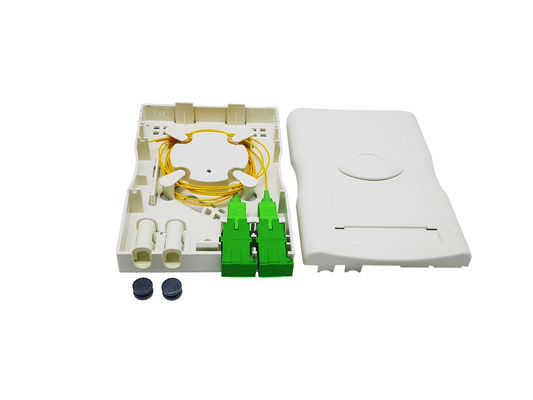

2Core FTTH NAP FTB Optica Roseta Wall Outlet Faceplate White IP30 Terminal Box SC Adapter Pigtail





The optical rosette acts as a termination point of the optical network, it use direct connectorization or fusion splice in a pre-connectorized pigtail. It can be installed on the wall, and adapt variety of optical connection styles LC/SC, maximum 2 cores.

2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box 02 Core FTTH NAP FTB IP30 Fiber Optic Termination Box 1

Features

  • It can be installed on any vertical flat surface or on a 4x2 ‘box embedded in wall;
  • Compact dimension, light weight, special design
  • Easy handling, no special tools needed;
  • Identification Label behind the cover;
  • The fiber optic reserve is inside the product;
  • Allows accommodation of 40mm or 60mm fusion splice protectors;
  • Capacity to store 20cm of optical cord with 3mm diameter;
  • Complies with what is specified in the recommendations of the IEC 61755-1 standard;
  • The lid is closed with a single screw in stainless steel and with a rotate cover to prevent dust.
  • Five accesses for input and output of cables or optical cords (patch cords): 2 lower,1 top, 1 side and 1 access in the back cover;



Specification



Model FTB86P
Dimension (H*W*D) 115*80*25mm
Max.Capacity 2 core (single fiber) or mechanical splices
Cable type Flat/ indoor round cable
Maximum input cable diameter φ5.8mm
Outlet cable diameter 2*1.6mm or2*3.0mm flat cable
Adapter 2 SC
Color white
Material PC+ABS
Protection level IP30
impact protection IK01
Fiber type single mode & multimode
Guarantee 12 months
Standards

Degree of protection: IEC 60529;

Temperature variation: IEC 61300-2-22;

Telcordia GR-771.



Application

FTTH internal environment



Product details

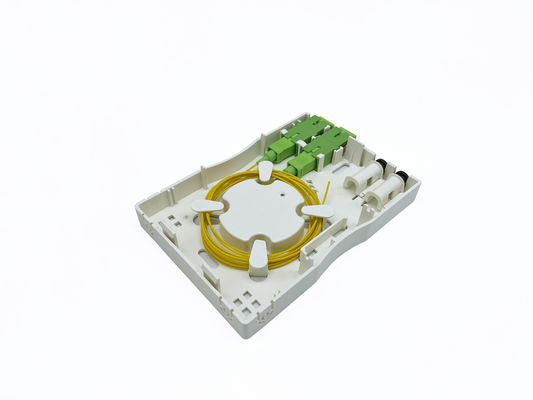

2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box 2

The NAP roseta  have unuct port rubber seal for cable entry or exit, there are 2 SC couplers can be use, but without flange, shutter adapters can be used too. And there is logo print block and position for better OEM application, if you need please share AI, CDR, pdf, or jpg file, we will do the best for you.

2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box 3



There is cable ports at both sides and at back of the box, which ensure flexible fiber distribution and management. when use, please use tools to cut off the block, then can use.

2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box 4

At front of the box, there is cable entry or adapter output fix location; Fiber optic cable in and out at the same plane, the operation is more convenient and fast, each other does not affect each other, the structure is reasonable and clear;

2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box 5

The box with a screw lock to fix the cover and bottom, the stainless steel expansion screw is firm and reliable. It is covered with a specially customized dust cover, which has good protection, effectively avoids man-made damage.





Standard accessories

04 plastic tapes, 02 fixing screws, 02 screws for closing the cover.

2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box 6



Operation Instructions



Use adapters and connectors, to be acquired separately

2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box 7



Do the splice using the supplied splice protection sleeves with 40 mm long and diameter 3 mm (when contracted), this product must be acquired separately.



2 Core FTTH NAP FTB IP30 Fiber Optic Termination Box 8
