FTB86J Ftth RJ11 Module Fiber Optic Termination Box

FTB86J Ftth RJ11 Module Fiber Optic Termination Box

  • High Light

    RJ11 Fiber Optic Termination Box

    ,

    FTB86J

    ,

    Ftth Optical Termination Box

  • Color
    White
  • Material
    ABS+PC
  • Size
    70*115*15mm
  • Installation
    Wall Mount With Screws
  • BOX TYPE
    Terminal Box
  • Application
    FTTH
  • Cable Port
    6pcs
  • Cable Diameter
    2x3mm Or 0.9mm
  • Cable Exit
    1SC Adapter, 1 RJ11 Module
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    FTB86J
  • Minimum Order Quantity
    100PCS
  • Price
    negotiable
  • Packaging Details
    1pc/plastic bag, 200pcs/box
  • Delivery Time
    4days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    100k pcs / month

FTB86J Ftth RJ11 Module Fiber Optic Termination Box

FTB86J Ftth RJ11 Module Fiber Optic Termination Box



RJ11 Module fiber Optic Termination ftth Box SC Adapter Nap Cassette Faceplate





This wall outlet is an indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fiber port. It can also used RJ11 modules with telephone, it is widely used in CATV network, fiber and copper network.



FTB86J Ftth RJ11 Module Fiber Optic Termination Box 0



Features

  • Made of high quality brand new ABS+PC, anti-collision, flame retardant, resistance to impact.
  • All the materials complied with ROHS standard.
  • Fiber cable inlets in 3 directions, supports the cable inlets for different scenarios.
  • white color, compact size, large storage and management area.
  • max. 1SC or 1RJ11 module fix on both sides
  • wall mount screws included during delivery.


Specification

Model FTB86J
Dimension(H×W×D) mm 70*117*19MM
Max.capacity 1SC+1 RJ11
Humidity 93%(+30°C)
Connect Models Fusion splicing, Mechanical Splicing, FMC
Material ABS+PC
Air Pressure 70KPa~106KPa
Working temperature -25~+60°C
Installation Models Wall Mounted
Drop cable (Flat) Indoor Flat Drop cable 2mm×3mm
Color White



FTB86J Ftth RJ11 Module Fiber Optic Termination Box 1

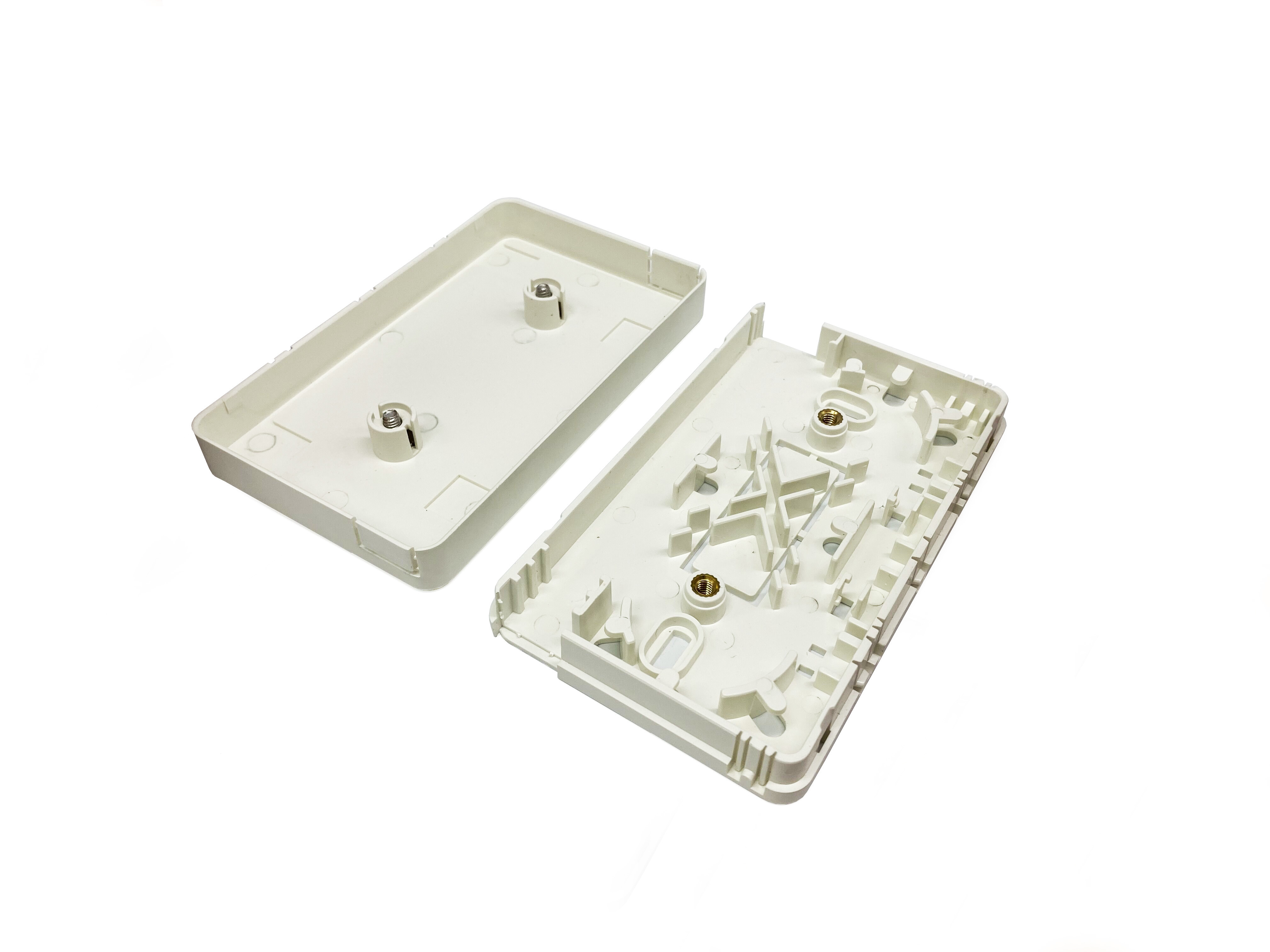

                                    EMPTY BOX

FTB86J Ftth RJ11 Module Fiber Optic Termination Box 2

                       BOX + 1pc SC adapter +1 pc RJ11 module

FTB86J Ftth RJ11 Module Fiber Optic Termination Box 3

                    can print logo on lide, 2screws to fix the lid on the bottom.





Standards Compliance

  • TIA/EIA 568.C, Optical Fiber Cabling Components Standard
  • IEC61754, Fiber optic connector interfaces Standard
  • ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
  • GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
  • RoHS (Directive on Restriction of Hazardous Substances. )



Wall-mounted installation



Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box; to match up the holes and use bolt to fasten.
