4 8 16 Channel Coarse SMF 28E Fiber Optic Termination Box
Coarse Wavelength Division Multiplexer Module (CWDM)
Features
Low insertion loss
High channel isolation
High stability and reliability
Application
CWDM system
Metro/Access network
CATV fiber optic system
Specification
Parameter | 4ch | 8ch | 16ch | |||
Channel wavelength (nm) | 1271,129,1311,......,1551,1571,1591,1611 | |||||
Channel space(nm) | 20 | |||||
Channel bandwidth (nm) | λc±6.5 | |||||
Channel flatness(dB) | ≤0.4 | |||||
Insertion loss (dB) | ≤2.0 | ≤3.0 | ≤5.0 | |||
Isolation | Demux | adjacent | ≥30 | |||
Non-adjacent | ≥40 | |||||
Mux | adjacent | ≥15 | ||||
Non-adjacent | ≥15 | |||||
Channel uniformity (dB) | ≤1.0 | |||||
Directivity (dB) | ≥55 | |||||
Return loss (dB) | ≥50 | |||||
PDL (dB) | ≤0.15 | ≤2.0 | ||||
Wavelength thermal stability(nm/°C) | ≤0.003 | |||||
Insertion loss thermal stability(dB/°C) | ≤0.005 | |||||
Power handling (mW) | ≤500 | |||||
Operating temperature (°C) | 0~+70 | |||||
Storage temperature (°C) | -40~+85 | |||||
Package dimension (mm) L*W*H | 100*80*0 (abs) | 141*115*18(abs) | ||||
110*95*7.5(metal) |

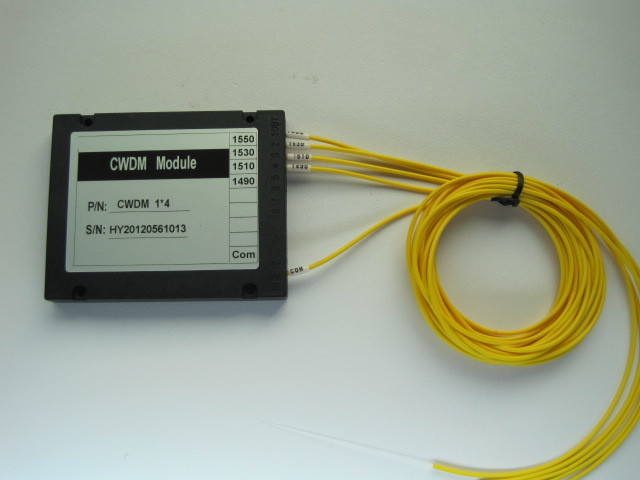

CWDM 4channel (1490 1510 1530 1550nm) -2mm 1meter

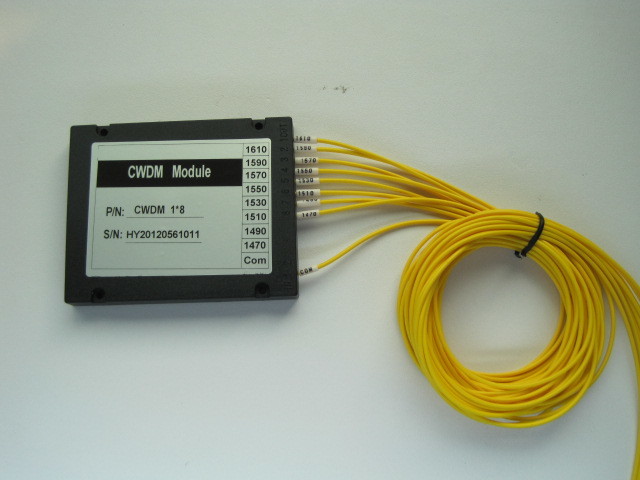

CWDM 8channel (1470 1490 1510 1530 1550 1570 1590 1610nm) -2mm 1meter
Order information
CWDM | Type | Port type | wavelength | Pigtail | Fiber | Length | connector |
M=mux D=Demux |
4=4ch 8=8ch 16=16ch |
1271=1271nm 1791=1291nm ... ... 1611=1611nm |
900=900um loos tube 2000=2mm loose tube 3000=3mm loose tube |
SMF-28e |
1=1m X=Specify |
NE=none FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LA=LC/APC LC=LC/UPC |
