Fiber Optic Termination Box
Created with Pixso. Durable Fiber Optic Termination Box 48 Port Wall Mount IP30 Protection ISO Approval

Durable Fiber Optic Termination Box 48 Port Wall Mount IP30 Protection ISO Approval

Brand Name: YINGDA
Model Number: FDB0248C
MOQ: 1PCS
Price: NEGOTIABLE
Delivery Time: 7-10DAYS
Payment Terms: T/T, Western Union, L/C
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
Pc+abs
Color:
Grey
Fusion Splice:
Max. 96cores Single Fiber
Max. Sc Adapter:
48 SC
Max. Splitter:
4pcs ABS 1:16 Plc Splitter Module
Tray Qty:
Max. 6pcs
Application:
Wall Mount
Features:
Optical Distriubtion Box ODB
Packaging Details:
1pc/carton box, 4pcs/carton
Supply Ability:
10000PCS PER MONTH
Highlight:

fiber optic junction box

,

fiber optic distribution box

Product Description

48 Port Wall Mount Fiber Optic Multi-operator Distribution Hub Plastic Termiantion Box


It is an optical distribution box for Fiber to The Home application, pooling module for splicing, coupling ,and stirring up to 48 optical fibers. The modules can be stacked to support configuration of greater capacity or to allow the pooling between building operators and commercial operator. It allows the connection between the cable coming from the outside and the cable of the riser.



Features

  • Separate compartments for splicing and patching. Each compartment has a door closed by a triangle key system
  • Possible scalability depending on the number of operators addressing the building
  • Optical cable access left with lashing system
  • Standardized dimensions, according to TELEFONICA recommendations.

Specification

Model FDB0248C
Dimension(W*H*D) mm 450*180*150
Net weight 3.2kg
Splice tray qty 6 pcs
Max capacity 96 cores (6*16F) + 48 SC adapters
Splitter qty Max. 4 pcs 1:16 PLC splitter
Colour Grey
Working temperature -25°C ~ 55°C (5 to 95% Humedad relativa)
Protection Level IP30



Product Detail



Durable Fiber Optic Termination Box 48 Port Wall Mount IP30 Protection ISO Approval 0    Durable Fiber Optic Termination Box 48 Port Wall Mount IP30 Protection ISO Approval 1

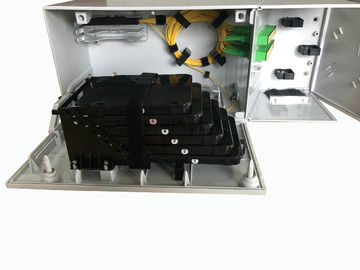

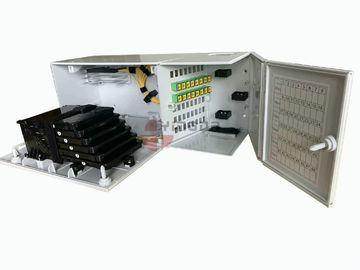

2door open with special triangle  design, anit-thief;

left for splitter, fusion, the rightside for distriubtion, different area, multi-function.



Durable Fiber Optic Termination Box 48 Port Wall Mount IP30 Protection ISO Approval 2    Durable Fiber Optic Termination Box 48 Port Wall Mount IP30 Protection ISO Approval 3



max. 6pcs 16cores splice tray, overlap, ABS material, black color.

max. 4pcs ABS module plc splitter fixtion slots.at the top left side.

max. 48pcs SC adapter port for distirubtion.



Durable Fiber Optic Termination Box 48 Port Wall Mount IP30 Protection ISO Approval 4     Durable Fiber Optic Termination Box 48 Port Wall Mount IP30 Protection ISO Approval 5

cable ports: 2round, 1 uncut ports with rubber seal. 2 holes for cable entry an exit at top and bottom with brush to protect the dust from outside.

enough cable fixture rings all over the box for better fiber cable management.





Box Dimension

Size A*B*C (mm) Wall Installation SizeD*E(mm) Cable entry size(mm)
478*180*163 115*228 20

Durable Fiber Optic Termination Box 48 Port Wall Mount IP30 Protection ISO Approval 6





Wiring Diagram

Durable Fiber Optic Termination Box 48 Port Wall Mount IP30 Protection ISO Approval 7
