ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color

ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color

  • High Light

    fiber optic closure

    ,

    splitter distribution box

  • Material
    ABS+PC
  • Color
    Gray
  • Dimension
    345*220*95mm
  • Cable Entry
    1 Mid Span, 2 Cable Plugs Dia:13.5mm
  • Cable Exit
    16 Pieces SC Reinforced Adapters
  • Splice Tray
    5pc 24cores Fusion Tray
  • Box Type
    Fiber Splice Splitter Box
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0216Y-10804SA
  • Minimum Order Quantity
    10pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 10pcs / master box
  • Delivery Time
    7-10days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    10k pices per month

ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color

16 Cores IP65 ABS SC Reinforced Connector Fiber Optic Cable Splitter Distribution Box





Quick Details of  Fiber Access Terminal

  • Max capacity: 96cores
  • 16pcs Huawei  Mini SC hardened adapters output
  • 5pcs splice trays
  • 1x2 1x4 1x8 1x16 steel tube splitter
  • 4*buckles to lock
  • outdoor IP65 wall pole mount



FDB0216Y fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Features

  • Water-proof design with IP-68 Protection level.
  • Integrated with flap-up splice cassettes with splitter tube holder
  • Maximum 96F splice capacity
  • Plug-and-play installation, easy for maintenance and expansion.
  • Fiber bend radius control more than 40mm.
  • 180 degree access with buckled lock structure.
  • 2pcs 1*8 or 1*16 PLC splitter can be installed in splice tray as option.
  • 16 pcs of pre-installed Huawei compatible reinforced water-proof SC adapter
  • 1 mid- span cable entrance (10-16.5mm) for uncut cable and 2 reserved cable entrance for distribution cable (8-16.5mm).

Specification

Model FDB0216Y
Dimension(L*W*D) mm 345*220*95
Cable port 1 express port (mid span), 2 cable glands
Max capacity 96 cores 4*24fiber tray
Max. Reinforced SC Adapter qty 16 pcs Mini SC coupler
Max. PLC splitter 2 pcs 1:8 or 1pc 1:16 block less splitter
Net weight 1.2kg
Color Gray, black
Waterproof grade IP65
Material Pc+abs



Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube,

key, wrench, rubber seal for cable entrance.



Optional Accessories

Pole mounted kits, Aerial hanging kits, plc splitter, Opti-tap adapters





Application

  • Wall-mounted, Pole-mounted, Aerial-hanging Installation
  • Suitable for pre-connectorized drop cable with reinforced connectors



Product details

ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color 0ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color 1



  Outer apperance:splitter distribution box+1x4+1x8 plc splitter  /  Box+ FTTH drop cable pre-terminateed with Opti-tap SC connectors



ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color 2ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color 3

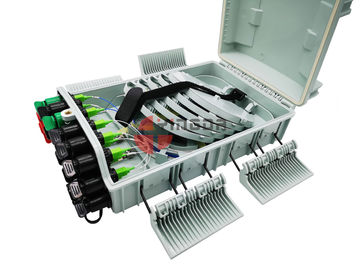

   Side view:  2 buckles at both sides, 5 pcs splice tray for fiber fusion or splitting and storage

                       the lid and the bottom is closed with 4buckles and 1 screw rod.



ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color 4ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color 5

Cable port: 1 express port for mid span,cable can entry without cutting.

                    16 pcs SC reinforced adapters IP68 waterproof, it connect the ouputs of the splittler pigtail and SC mini adapters

                     can use different color adapter lid to distinguish input, outputs.



ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color 6      ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color 7



Splice tray: total 5 pieces, each can fusion max. 24cores, and in the middle with slot for plc splitter stainless steel tub fixtion.

                     during transporation, there will be nylon tie to protect the tray from broken.

ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color 8ABS SC Reinforced Connector Fiber Optic Splitter Box 16 Cores IP65 Gray Color 9

       Wall Mount with 2 metal sheets                   Pole Mount with 2 metal sheets+2 metal ring
