Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted

Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted

  • High Light

    fiber optic distribution box

    ,

    fiber optic terminal box

  • Material
    ABS+PC
  • Color
    White
  • Cable Port
    2 In 8 Out
  • Fusion Capacity
    8 Cores
  • Connector
    SC/APC
  • Input Diameter
    12 Mm
  • Output Diameter
    2*3.0 Mm
  • Features
    Laser Mark, Or OEM , 2 Removable Cover
  • Application
    Wall Mounted Indoor
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB008-SA08
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable
  • Packaging Details
    1 pc / box, 60 pcs / carton box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C

Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted

Indoor 8 Ports Wall Mounted CPE Fiber Optic Distribution Terminated Cable Joint Box



FTB-008 Mini plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



The cover of the box is fixed with screws into the bottom, and the front lid of the outputs to adapter is hinged with the upper parts, and it is fixed with screws to the bottom. Opening of the lid will not affect the movement of the other parts of the box, this unique design makes the box more safe, nice and humanity when installation on site and afterwards possible maintenance.



Specification:

Model FTB-008
Dimension (H*W*D) 170*130*40mm
Cable ports 2 in, 8 out
Cable dimeter In:12 mm, out: 2*3.0 mm
Installation Wall mounted indoor
Max. Fusion Capacity 4cores (bunchy fiber)
Splice tray 1 piece
Material ABS+PC
Color White
Max. Splitter 1x2,1x4,1x8, 2x2, 2x4 steel tube PLC splitter
Max. Adapter

8 pieces SC simplex coupler, without falange



Features

  • 2inlet, 8outlets
  • Max. 8 ftth drops, 8SC, 8 cores for fusion
  • Life span 20years, IP54.
  • The both cover is removable.
  • Can use PLC splitter mini module 1x2,1x4,1x8
  • High strength engineering plastic, compact size, light weight
  • All the materials brand new,non toxic and dermatologically safe.



How to use the box on-site construction?

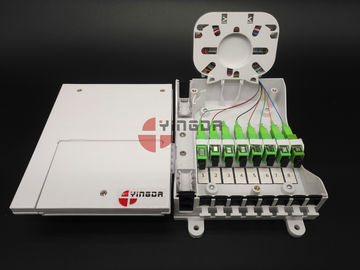

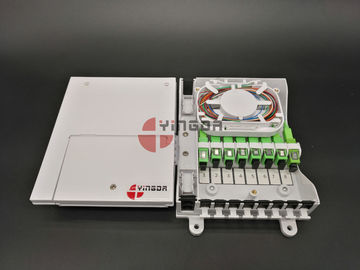

1. you can use 8 cores pigtails SC 0.5meter, and 8SC adapters for fusion, and then connected with ftth drop cable.

Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted 0Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted 1

Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted 2Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted 3

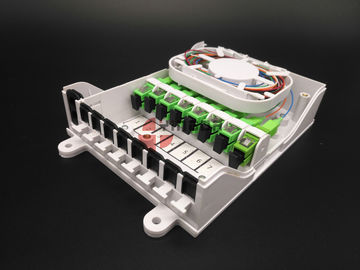

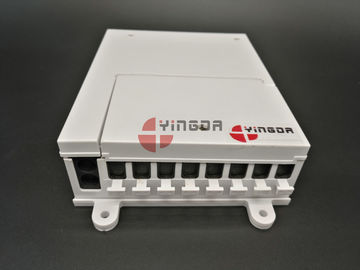

2. you can use plc splitter mini module type. 900um 0.5meter for fiber splitting, then connect with ftth drop cable distribution.

Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted 4Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted 5



Standard package:

The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.

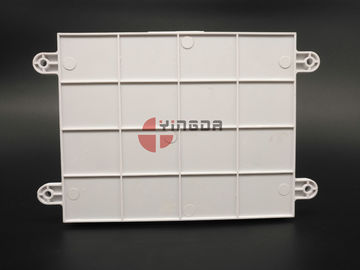

Product Details:

Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted 6Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted 7

Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted 8Indoor 8 Ports CPE Fiber Optic Distribution Terminated Cable Joint Box Wall Mounted 9



Accessories like below:

  • Cable nylon ties
  • Heat shrinkable tube
  • Wall mount expansion screws
  • Sealing of inputs or outputs
  • Adapters or plc splitter optional pre-terminated at factory
  • English or Spanish instruction manual
