RJ11 Module fiber Optic Termination  ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet

RJ11 Module fiber Optic Termination ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet

  • High Light

    fiber optic junction box

    ,

    fiber optic distribution box

  • Color
    White
  • Material
    ABS+PC
  • Size
    70*115*15mm
  • Installation
    Wall Mount With Screws
  • BOX TYPE
    Terminal Box
  • Application
    FTTH
  • Cable Port
    6pcs
  • Cable Diameter
    2x3mm Or 0.9mm
  • Featuere
    RJ11 Module Port+optical Port
  • Fiber Mode
    Single Mode
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    FTB86I-R
  • Minimum Order Quantity
    100PCS
  • Price
    negotiable
  • Packaging Details
    1pc/plastic bag, 200pcs/box
  • Delivery Time
    4days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    100k pcs / month

RJ11 Module fiber Optic Termination ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet

RJ11 Module fiber Optic Termination ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet





This wall outlet is an indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fiber port. It can also used RJ11 modules with telephone, it is widely used in CATV network, fiber and copper network.



RJ11 Module fiber Optic Termination  ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet 0



Features

  • Made of high quality brand new ABS+PC, anti-collision, flame retardant, resistance to impact.
  • All the materials complied with ROHS standard.
  • Fiber cable inlets in 3 directions, supports the cable inlets for different scenarios.
  • white color, compact size, large storage and management area.
  • max. 2 SC or LC duplex couplers
  • wall mount screws included during delivery.


Specification

Model FTB86J
Dimension(H×W×D) mm 70*117*19MM
Max.capacity 1SC+1 RJ11
Humidity 93%(+30°C)
Connect Models Fusion splicing, Mechanical Splicing, FMC
Material ABS+PC
Air Pressure 70KPa~106KPa
Working temperature -25~+60°C
Installation Models Wall Mounted
Drop cable (Flat) Indoor Flat Drop cable 2mm×3mm
Color White

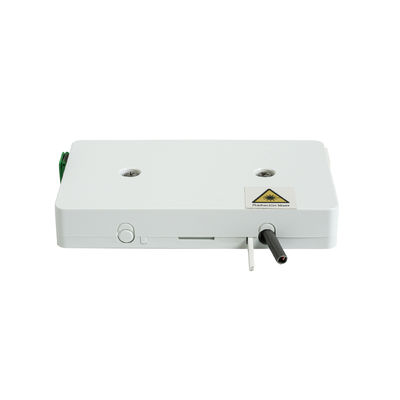

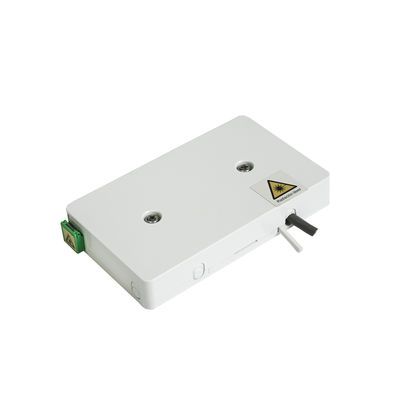

RJ11 Module fiber Optic Termination  ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet 1RJ11 Module fiber Optic Termination  ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet 2

The box is very small size and thin height, but can mix optical and data function in a box, which meet fiber to copper network installation.

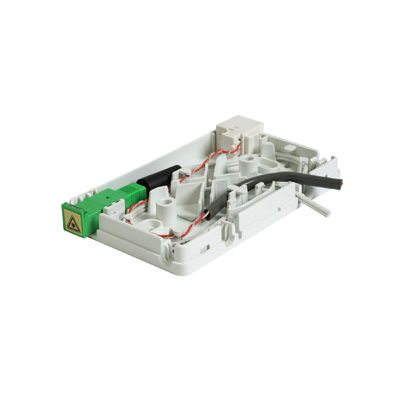

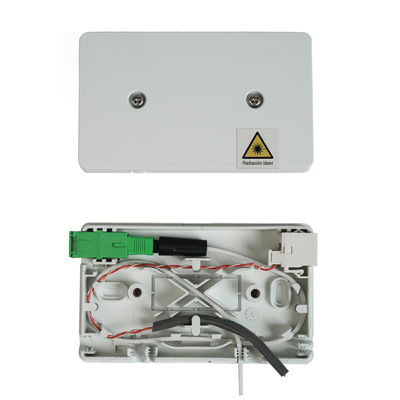

RJ11 Module fiber Optic Termination  ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet 3RJ11 Module fiber Optic Termination  ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet 4



The adapter port can use SC simplex optical coupler, and data port is RJ11 module, white color, international standard, not special requirements or tools need.

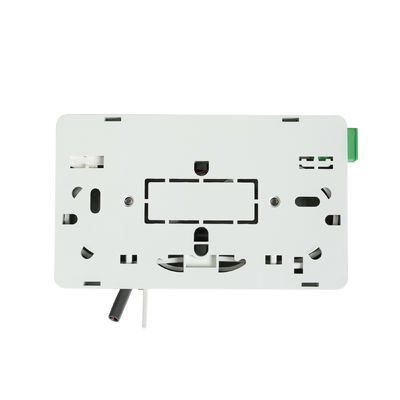

RJ11 Module fiber Optic Termination  ftth Box SC Adapter Nap Cassette Faceplate Wall Mounted Outlet 5

The cover and bottom is connected by both sides clips, also can fix by 2screws on top of the lid. It is quite easy and fast to open and close.

there is square position for a logo print or sticker, better OEM choice.





Standards Compliance

  • TIA/EIA 568.C, Optical Fiber Cabling Components Standard
  • IEC61754, Fiber optic connector interfaces Standard
  • ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
  • GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
  • RoHS (Directive on Restriction of Hazardous Substances. )



Wall-mounted installation



Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box; to match up the holes and use bolt to fasten.
