2 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount

2 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount

  • High Light

    fiber optic junction box

    ,

    fiber optic distribution box

  • Color
    White
  • Material
    ABS+PC
  • Size
    70*115*15mm
  • Installation
    Wall Mount With Screws
  • BOX TYPE
    Terminal Box
  • Application
    FTTH
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    FTB86I-LCA-Duplex
  • Minimum Order Quantity
    100PCS
  • Price
    negotiable
  • Packaging Details
    1pc/plastic bag, 200pcs/box
  • Delivery Time
    4days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    100k pcs / month

2 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount

2 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount





This wall outlet is an indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fiber port.



Features

  • Made of high quality brand new ABS+PC, anti-collision, flame retardant, resistance to impact.
  • All the materials complied with ROHS standard.
  • Fiber cable inlets in 3 directions, supports the cable inlets for different scenarios.
  • white color, compact size, large storage and management area.
  • max. 2 SC or LC duplex couplers
  • wall mount screws included during delivery.


Specification

Model FTB86I
Dimension(H×W×D) mm 70*116*15MM
Max.capacity 2 SC
Humidity 93%(+30°C)
Connect Models Fusion splicing, Mechanical Splicing, FMC
Material ABS+PC
Air Pressure 70KPa~106KPa
Working temperature -25~+60°C
Installation Models Wall Mounted
Drop cable (Flat) Indoor Flat Drop cable 2mm×3mm
Color White



Product details

2 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount 02 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount 1

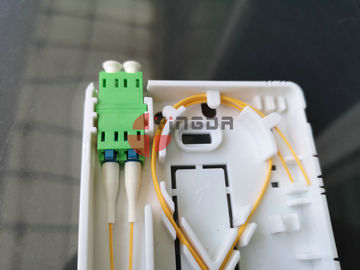

the box is completed with LC/APC duplex adpaters without flange, can fusion 2cores single fiber.

 2 pieces wall mount expansion screws is put inside of the box before delivery.



2 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount 22 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount 3

The box is long size, and large fibre storage and management system. it can use 2 pieces lc duplex adapters.



2 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount 42 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount 5

the box is brand new material:ABS+PC. and front side have 2 cable ports, each side 2pcs cable ports.



Standards Compliance

  • TIA/EIA 568.C, Optical Fiber Cabling Components Standard
  • IEC61754, Fiber optic connector interfaces Standard
  • ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
  • GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
  • RoHS (Directive on Restriction of Hazardous Substances. )



Wall-mounted installation



Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box; to match up the holes and use bolt to fasten.
