White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB

White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB

  • High Light

    fiber optic junction box

    ,

    fiber optic distribution box

  • Color
    White
  • Material
    ABS+PC
  • Size
    70*115*15mm
  • Installation
    Wall Mount With Screws
  • BOX TYPE
    Terminal Box
  • Application
    FTTH
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    FTB86I
  • Minimum Order Quantity
    100PCS
  • Price
    negotiable
  • Packaging Details
    1pc/plastic bag, 200pcs/box
  • Delivery Time
    4days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    100k pcs / month

White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB

White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB

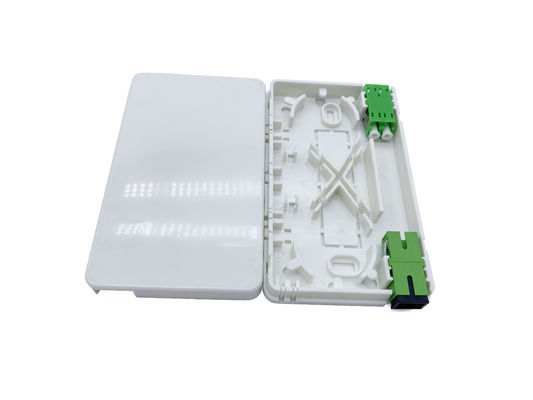

White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB 0

This wall outlet is an indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fiber port.



Features

  • Made of high quality brand new ABS+PC, anti-collision, flame retardant, resistance to impact.
  • All the materials complied with ROHS standard.
  • Fiber cable inlets in 3 directions, supports the cable inlets for different scenarios.
  • white color, compact size, large storage and management area.
  • max. 2 SC or LC duplex couplers
  • wall mount screws included during delivery.


Specification

Model FTB86I
Dimension(H×W×D) mm 70*116*15MM
Max.capacity 2 SC
Humidity 93%(+30°C)
Connect Models Fusion splicing, Mechanical Splicing, FMC
Material ABS+PC
Air Pressure 70KPa~106KPa
Working temperature -25~+60°C
Installation Models Wall Mounted
Drop cable (Flat) Indoor Flat Drop cable 2mm×3mm
Color White



Product details

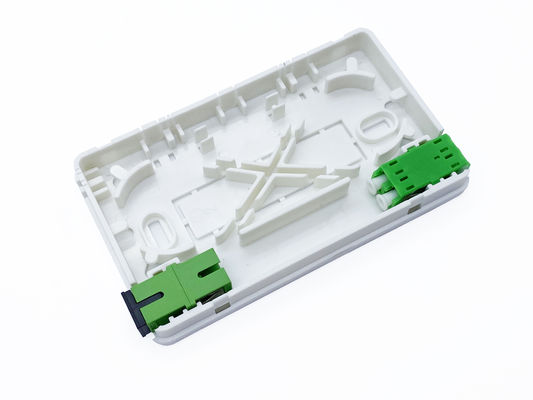

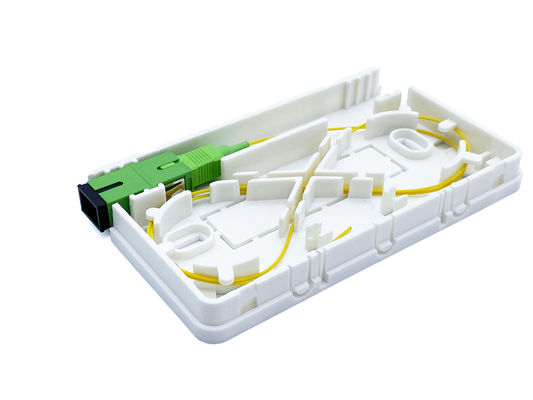

White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB 1White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB 2

1SC adapter port, 2 pcs ftth soft cable or drop cable 2x3mm. both sides and front have cable ports.

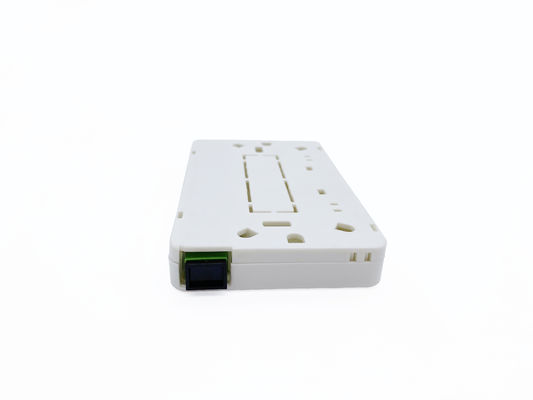

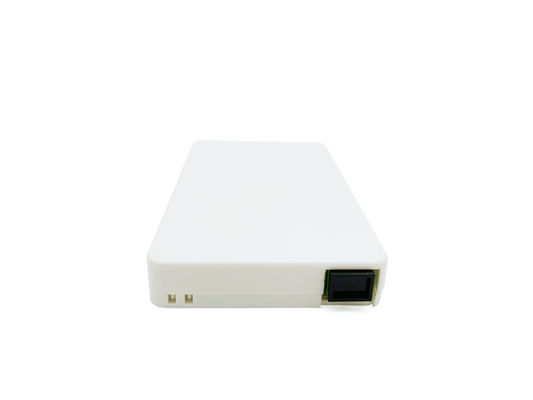

White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB 3White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB 4

the box is 2clips for open and close, tightly closed. back is wall mount holes for screws.

White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB 5White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB 6

2 pieces SC adapters, 2 pieces Pigtail SC/APC 0.5meter G657A1 LSZH; the lid and cover is seperated.

White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB 7White 2SC Mini Roseta Fiber Termination Box 2 Port Wall Mounted ABS+PC Alloy OTB ODB 8

there is large cable routing area, fast and easy to construct. it is better than 86 box.





Standards Compliance

  • TIA/EIA 568.C, Optical Fiber Cabling Components Standard
  • IEC61754, Fiber optic connector interfaces Standard
  • ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
  • GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
  • RoHS (Directive on Restriction of Hazardous Substances. )



Wall-mounted installation



Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box; to match up the holes and use bolt to fasten.
