SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp

Place of Origin china
Brand Name yingda
Certification ISO
Model Number FTB86
Minimum Order Quantity 500pcs
Price negotiable
Packaging Details 1pc/plastic bag, 50pcs/inner box, 200pcs/carton box
Delivery Time 3-5days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 500k pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PC ABS COLOR WHITE
Size 86*86*23mm Application Ftth Indoor Wall Mounted
Fusion Capacity 1cores Adapter Qty 1 SC
Product Name Fiber Optic Termination Box
Highlight

fiber optic junction box

,

fiber optic distribution box

Leave a Message
Product Description

Ftth Box 2 ports SC/APC Fiber Optic Socket Panel With Metal Cable Clamp Indoor Wall Mount





Feature

  • Standard 86 type panel, small size and simple operation
  • Large arc-shaped winding column to avoid the potential damage risks
  • UL94 V1 flame retardance complied (UL94 V0 is available upon request)
  • Multi-function optical fiber socket for a variety of cables and multi-mode access
  • Flexible termination methods: splicing + pigtail, mechanical splice + pigtail, fast connector on site.



Cable structure

SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 0

Application



  • Wall mount
  • Suitable for 2*3mm FTTH Drop Cable



Configuration



Material Size Max. Capacity Empty Weight Loaded Weight Color
PC+ABS

H*W*D (mm)

86*86*27

SC: 2 ports LC: 4 ports 0.2kg 0.3kg

White





Product pictures



SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 1   SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 2

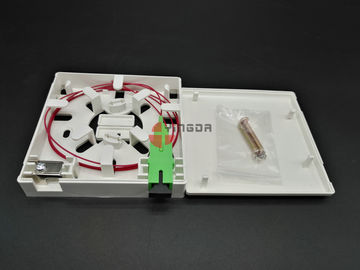

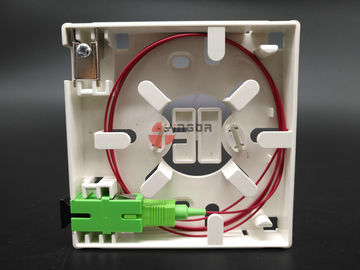

Outlet is fully load with 1pc SC/APC or 1pc SC/UPC adapter and 1pc SC pigtail 0.5meter 0.9mm for on-site fusion splice. It can be done at factory before delivery.



Accessory: 2pcs wall mount screw



SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 3   SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 4



Middle 2pcs white cable fixtion can ben taked off during on-site construction. And there is palce to hold mechanical splicer or heatshrink tube.

SC adapter can be with flange or without flange, or with shutter type.

the left port is with 1pc metal cable clamp(clip) to fix the cable tightly, no loose or flip out.



SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 5   SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 6

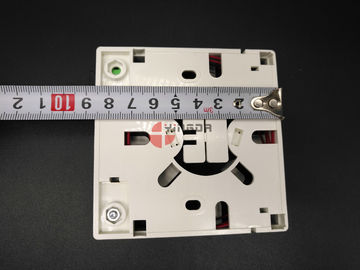

box is small size 86*86*23mm, and cable entry at both sides, can be indoor 3mm 2mm or 0.9mm.

wall mount holes is at back.



SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 7SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 8

Small size, and high strength material: PC+ABS, PP can be optional.

there is enogu space for fiber storage and management.

indoor use only.



SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 9SC/APC Wall Mount Fiber Termination Box Socket Panel 2 Ports With Metal Cable Clamp 10



Package information:  1pc / plastic bag, 50 pcs/ small box, 200 pcs / carton box.





We have many types of 86 ftth box for wall mounted indoor cable distributino and termination. see below in details:
