FTTH 1 core SC Fiber optical information face plate NAP Indoor

MOQ: 5000pcs
Price: 0.18USD-4.29USD
Standard Packaging: 200pcs/carton box
Delivery Period: 5days
Payment Method: Western Union, T/T, L/C, MoneyGram
Supply Capacity: 100k pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
yingda
Certification
ISO,SGS
Model Number
FTB86H-SU01
Material:
PC+ABS
Color:
White
Size:
148.3*89.8*16mm
Max Capacity:
1 SC, 1core For Fusion
Suitable For Cable:
2*3mm Ftth Cable Or Indoor Cable
Install Method:
Indoor Wall Mount
Highlight:

fiber optic junction box

,

fiber optic distribution box

Product Description

FTTH 1 core SC Fiber optical information face plate NAP Indoor

MODEL: FTB86H



It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO. With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer’s choice. Cable management can be connected without cutting(with express port). All modules are free of welding.



FTTH 1 core SC Fiber optical information face plate NAP Indoor 0   FTTH 1 core SC Fiber optical information face plate NAP Indoor 1

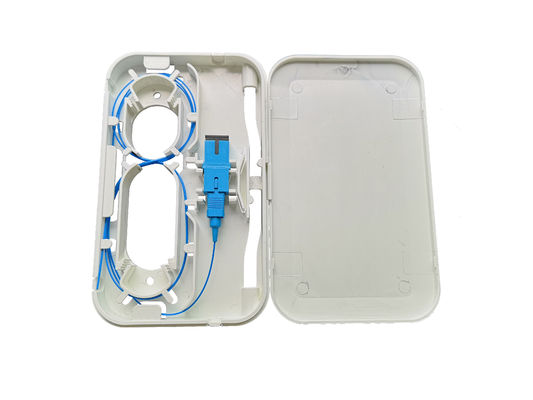

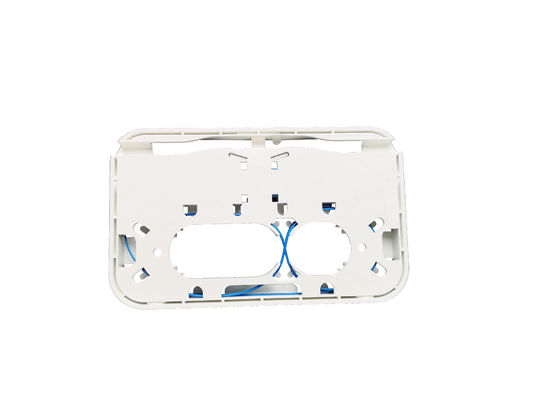

   complete with SC/UPC adapter and pigtails                        back of fully load



FTTH 1 core SC Fiber optical information face plate NAP Indoor 2   FTTH 1 core SC Fiber optical information face plate NAP Indoor 3

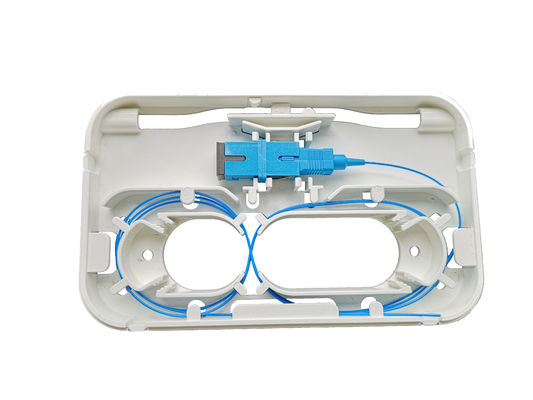

Internal design of 1SC adapter fixtion and large area of storage, the  main cable enter the box from bottom.



FTTH 1 core SC Fiber optical information face plate NAP Indoor 4   FTTH 1 core SC Fiber optical information face plate NAP Indoor 5

            press the side to open the box                                 cable enter and exit at both sides



FTTH 1 core SC Fiber optical information face plate NAP Indoor 6   FTTH 1 core SC Fiber optical information face plate NAP Indoor 7

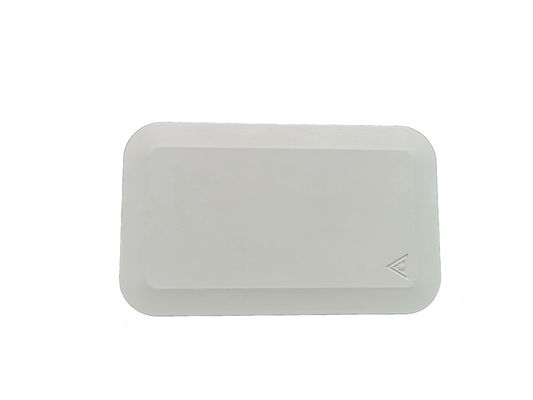

adapter with flange or flangeless both ok                                      white lid with laser mark





Specification

Model FTB86H
Dimension(LxWxH)mm 148.3*89.8*16
Installation Wall mounting (indoor & outdoor)
Cable entry Supporting uncut
Max. Cable diameter 2*3mm
Adapter qty 1pc SC or LC duplex
Net weight / g 68.2
Net weight/carton box 15kgs
Package information 208pcs/carton box, carton size: 520*360*390mm, gross weight/ carton: 19.5kgs, net weight/ carton: 15kgs






Working area:

.The telecommunication network, metropolitan area network, optical fiber communication system.
.Optical testing equipment/instrument.
.CATV optical fiber, optical fiber sensor.
.Optical fiber broadband access network, FTTH optical fiber.
.Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.



Performance index:



Item Technical data
Application 3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter 125μm ( 652 & 657 )
Tight cladding diameter 250μm & 900μm
Mode of application Single mode & duplex mode
Tensile strength >50 N
End-use temperature -40~+85℃
Adaptor SC & LC duplex
Insertion loss ≤0.2dB(1310nm & 1550nm)
output 1 port



Configuration table:



Table 1 Model and configuration

Model Size(Pic 1) Max Capacity Installation Size(Pic 2)
A*B*C(mm) SC LC D (mm)
FTB86H 89.8*148.3*16 1 2 102





Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
0%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

1
1*A
Canada Apr 28.2025
Helpful (3)
Excellent product, complete Items as specified. Special thanks to ms. Milla for such Great service.
L
L*k
France Oct 25.2023
Helpful (8)
Excellent product, good material quality! Easy to installtion, suitable for mini sc adapter and flat drop cable...
1
1*e
Morocco Sep 6.2022
Helpful (5)
This enclosure worked perfectly, well designed tray inside for spooling excess fiber. Solid post / clamp to secure jacket .Very happy with product , would buy again.
