IP54 Outdoor Fiber Termination Box , Wall Mount Fiber Termination Box For FTTH Drop Cable
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | ABS+PC | Color | White |
|---|---|---|---|
| Dimension | 235*125*45 Mm | Application | Ftth Indoor Use |
| Installation Method | Wall Mount IP54 | Drop Cable Size | 2*3 Mm Flat Drop Cable |
| Adapter Qty | 8 Pcs SC/APC Coupler | Splitter Qty | 1:8 Steel Tube Splitter |
| High Light | fiber optic junction box,fiber optic distribution box |
||
Product Description
White IP54 Plastic Mini 1x8 1x4 1x2 Optical Fiber PLC Splitter Distribution Box for FTTH Drop Cable
Model:FTB008A
FTB008A plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.
The entry 2 ports can use multi-fiber cable maximum diameter 12mm, 8 pcs outputs for ftth drop cable. Meanwhile, unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.
Features:
- The lid of the box have round edges, and closed by screws. Opening of the lid will not affect the movement of the other parts of the box. Both cover is removable.
- All the metal parts is steel stainless AISI-303 and resistant to the corrosion in normal
- temperature.
- All the materials used is non toxic and dermatologically safe.
- The materials used for manufacturing these boxes can use for a minimum period of 20 years.

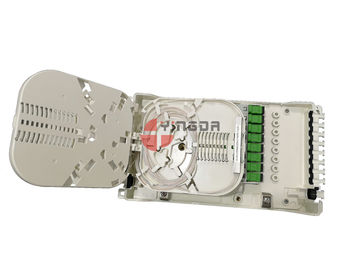

- Unique design of 3 layers stray: splitter tray, splice tray, fiber management tray.
- Adapter panel on the bottom is rotate by a metal rod, convenient and fast to installation
- The feeder cable can go through the box no need cuttting, better choice for ftth on-site construction.
Product details

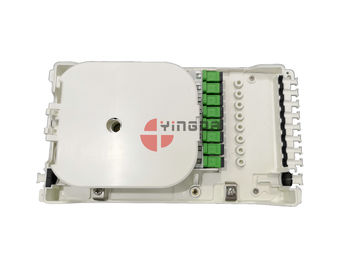

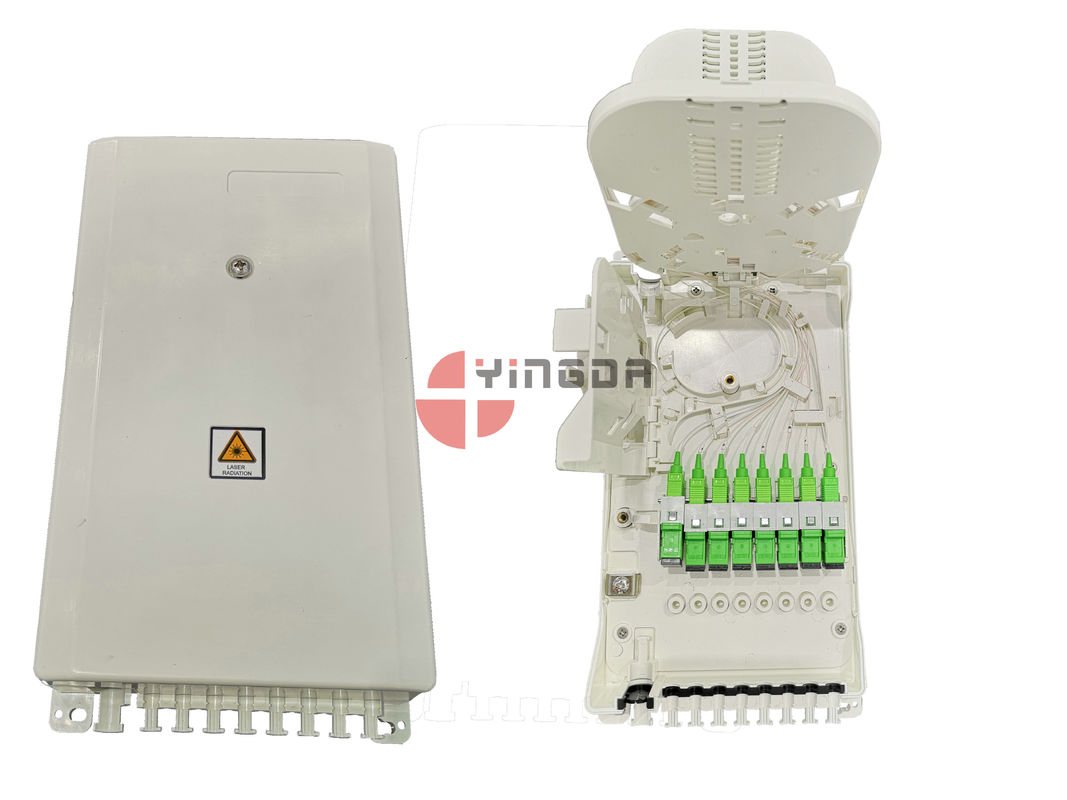

Box is totally enclosed with screws, laser mark on top. 2 cable inputs, 8 outputs

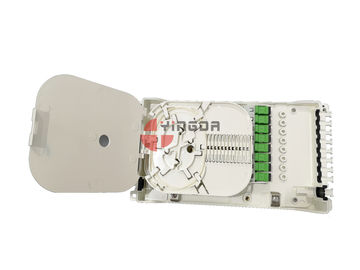

Special uniqui design of 2cover, big is for whole box, small is for trays; if fully load, on-site construction can only open one cover to connect the drop cable with the adapter is ok.
accessory bag can be put inside or outside of the box;

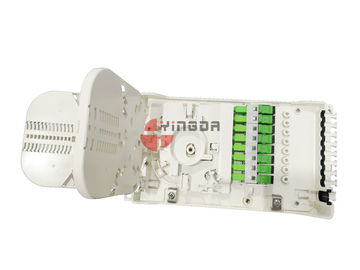

bottom is for splitter outputs to connect the adapter for fiber distribution. the adapter holder is rotate, 1 2 3 4 5 6 7 8 mark on the bottom is easy to install and future use.
Specification:
| Model | FTB008A |
| Dimension | 235*125*45 mm (H*W*D) |
| Cable ports | 2 inlet, 8 outlet |
| Cable dimeter | In:12 mm, out: 3 mm |
| Installation | Wall mount |
| Max. Fusion | 24 single fibers |
| Splice tray | 1 pc splice tray, 1 pc splitter tray, 1 pc tray for fiber management |
| Material | ABS+PC |
| Color | Gray |
| PLC Splitter | 1x2,1x4,1x8 mini module plc splitter 0.9mm 1meter |
| Max. Adapter | 8 pcs SC simplex, shutter with flange all ok. |
Standard package:
The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.
Accessories like below:
- Cable nylon ties
- Heat shrinkable tube
- Wall mount expansion screws
- Sealing of inputs or outputs
- User manual
- Adapters or plc splitter
