White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores

White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Material
    Plastic
  • Dimension
    130*133*35mm
  • Color
    White
  • Max. Capacity
    12 Cores
  • Outport
    12 SC Ports
  • Input
    Cable Gland(optional)
  • Splice Tray
    Plastic, 1pc
  • Adapter
    12pcs SC Simplex
  • Adapter Plate
    Cold Rolled Steel
  • Flame Rating
    UL94-V0
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    DIN-P
  • Minimum Order Quantity
    100pcs
  • Price
    Negotiable
  • Packaging Details
    60sets/carton
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union

White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores

White Indoor Fiber Optic DIN Terminal Box, Plastic Termination Box 12 Cores



Fiber optic Din terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.



Features

  • Standard size, light weight and reasonable structure
  • Material: PC+ABS, adapter plate: cold rolled steel, it can be replace
  • Flame Rating: UL94-V0
  • Cable tray can be overturn, easy to manage.
  • Optional adapter and adapter plate.

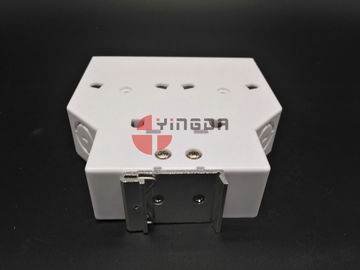

  • Din guide rail, easy to install on rack panel in cabinet.



Specification

Model Adapter Adapter Quantity Max. Capacity
DIN-P12-SCS SC simplex 12 12
DIN-P6-SCS SC simplex/LC duplex 6/12 6
DIN-P6-SCD SC duplex 6 12
DIN-P6-STS ST simplex 6 6



Application

  • Telecommunications subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN
  • CATV



Cable Manage

White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 0White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 1



More details



White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 2White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 3

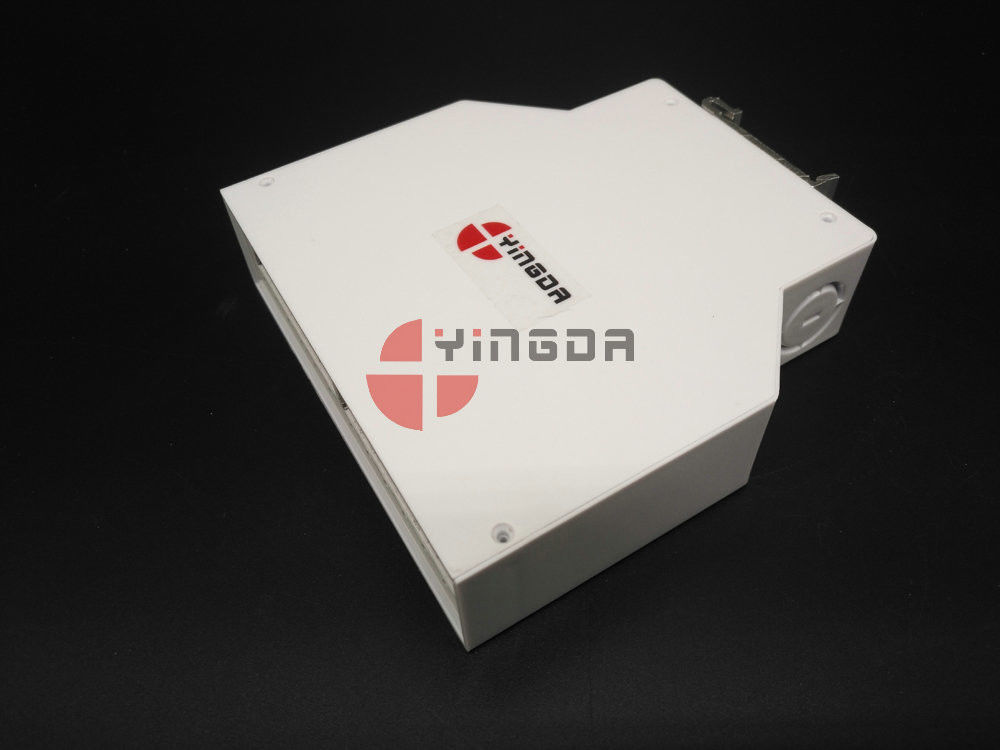

  • This box body is made of ABS & PC. The adapter plate is made of cold rolled stell which can install 12 SC simplex adapters.



White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 4White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 5

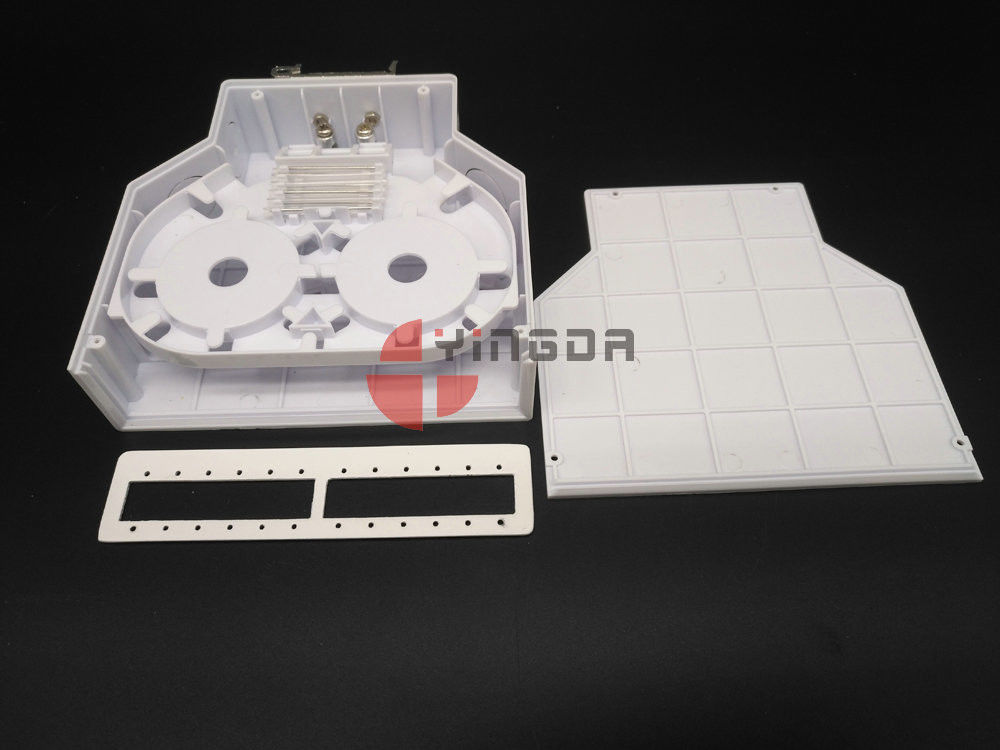

  • The inside of box includes a splice tray, which can splice max. 12 cores.



White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 6White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 7

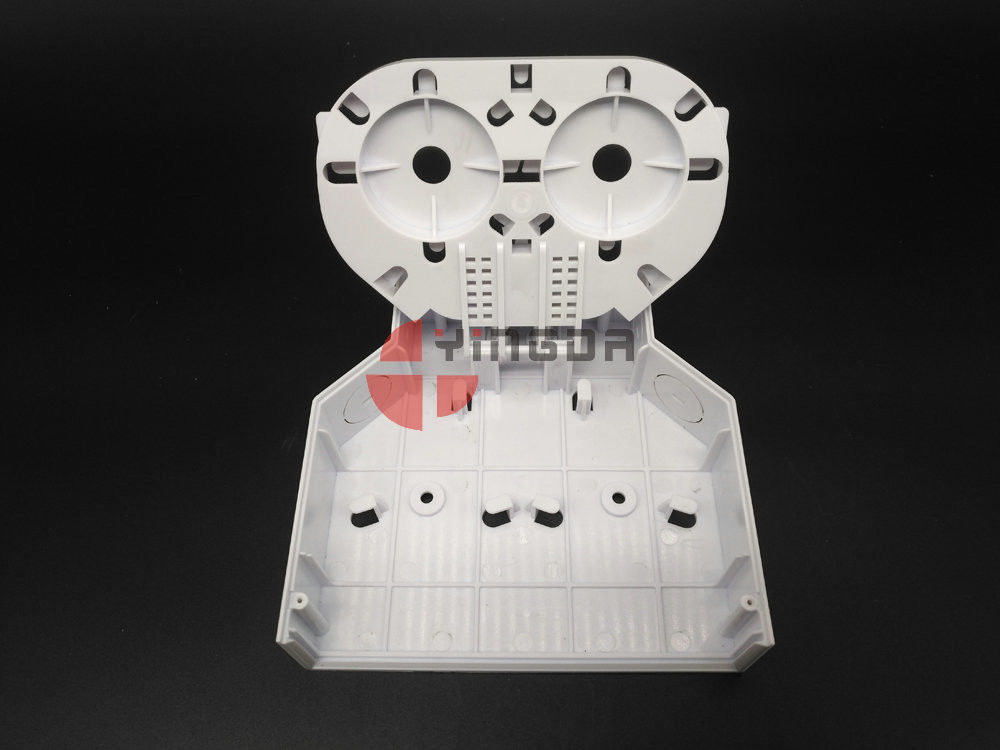

  • Splice tray showing.



White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 8White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 9

  • The cold rolled steel adapter plate can be taken out and replace.



White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 10White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 11

  • The cable entry can install cable gland.



Box Size

White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 12

White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 13



Packing info:

Carton Size G.W Remark
16.5*15.5*4.5cm 0.4KG(around) With bubble pack
48.5*47*35cm 24KG(around) 60sets/carton



Rack Frame(optional)

White Indoor Fiber Optic DIN Terminal Box , Plastic Termination Box 12 Cores 14



Rack Frame spec. (optional)

Name Model Size Capacity
Rack frame DRB-002 482.6*88*180mm 12set
