DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Material
    ABS+PC
  • Dimension
    130*133*35mm
  • Color
    White
  • Output
    12 SC Simplex Ports
  • Adapter Plate
    Cold Rolled Steel
  • Splice Tray
    1 Pcs
  • Flame Rating
    UL94-V0
  • Application
    Indoor
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    DIN-P
  • Minimum Order Quantity
    100pcs
  • Price
    Negotiable
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union, L/C

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails



Fiber optic Din terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.



Features:

  • Standard size, light weight and reasonable structure
  • Material: PC+ABS, adapter plate: cold rolled steel, it can be replace
  • Flame Rating: UL94-V0
  • Cable tray can be overturn, easy to manage.
  • Optional adapter and adapter plate.
  • Din guide rail, easy to install on rack panel in cabinet.



Specification

Model Adapter Adapter Quantity Max. Capacity
DIN-P12-SCS SC simplex 12 12
DIN-P6-SCS SC simplex/LC duplex 6/12 6
DIN-P6-SCD SC duplex 6 12
DIN-P6-STS ST simplex 6 6



Size

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 0

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 1



Product Pictures

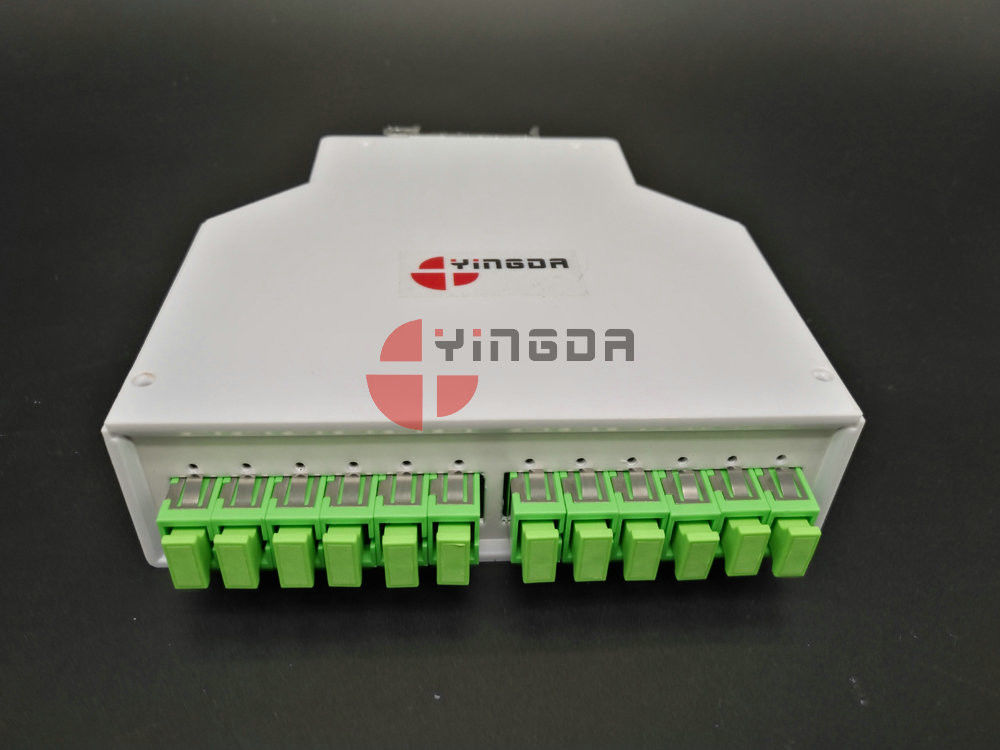

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 2DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 3

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 4DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 5

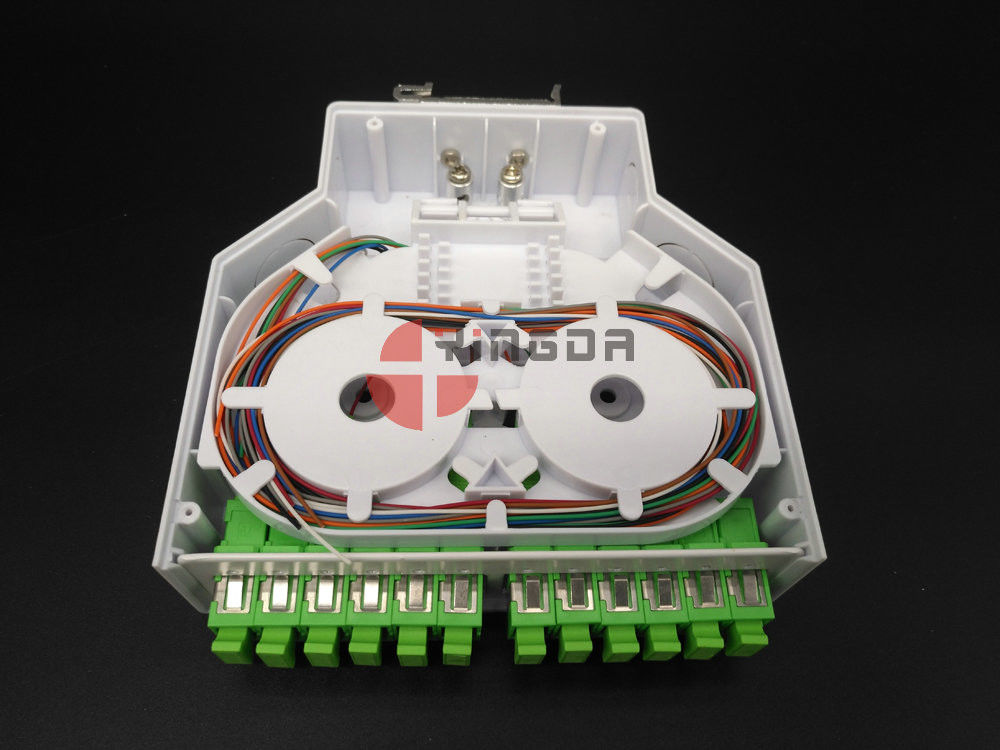

  • The box consists of cover, 1pc of splice tray, box body, 1 pc of adapter plate.
  • Adapter plate is made of cold rolled steel, which can accomodate max. 12pcs SC simplex adapters.



DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 6DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 7

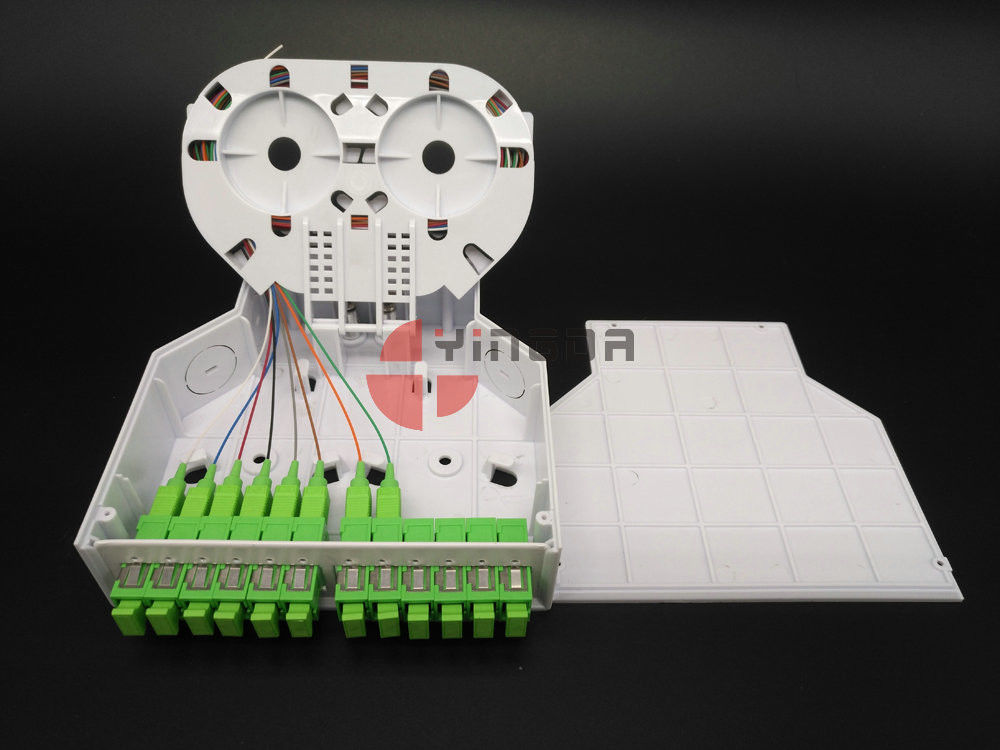

  • The splice tray can coil and splicing fibers.



DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 8DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 9

  • Insert the connector of pigtails into adapters, then splicing the pigtails and other cables on the splice tray.



DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 10DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 11

  • The cold steel rolled adapter panel can be taken out.



DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 12DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 13

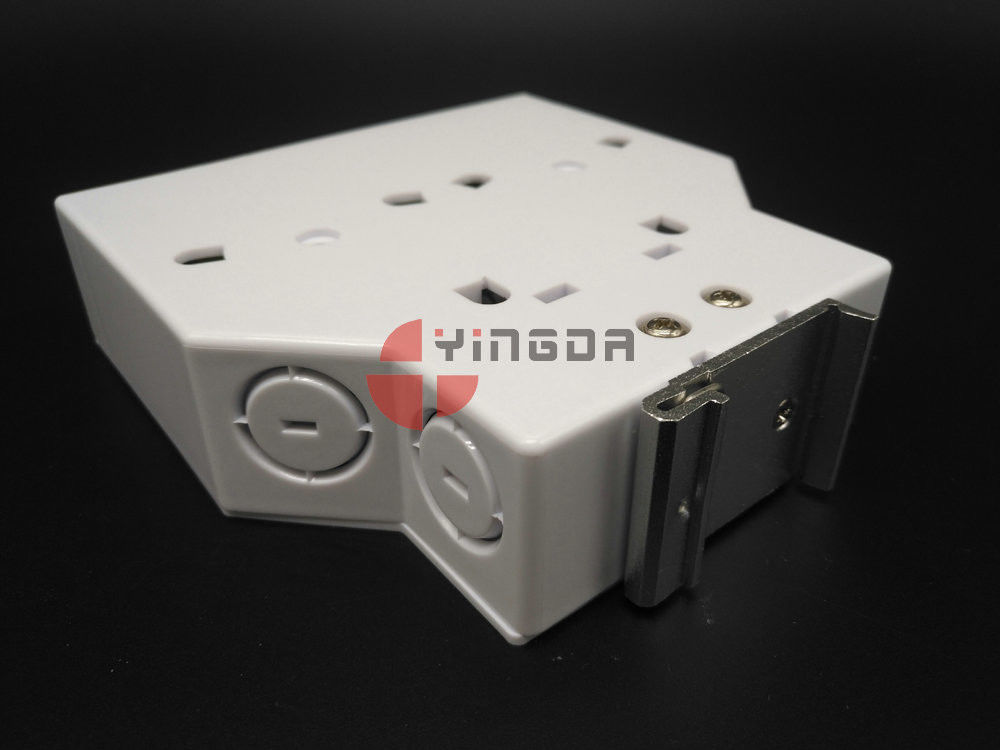

  • Like the red circle marked, cable gland can be installed here.



DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 14DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 15

  • Actual measurement data.



More details

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 16DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 17

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 18DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 19



Application:

  • Telecommunications subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN
  • CATV



Cable Manage:

DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 20DIN Plastic Fiber Optic Terminal Box 12 Ports SC/APC Adapters and Pigtails 21





Packing informations

  Carton Size G.W Remark
Inner box 16.5*15.5*4.5cm 0.4KG(around) With bubble pack
External box 48.5*47*35cm 24KG(around) 60sets/carton



Rack Frame spec(optional):

Name Model Size Capacity
Rack frame DRB-002 482.6*88*180mm 12set
