Pole & Wall Mounted Fiber Optic Distribution Box 24 Ports with 1x16 PLC Splitter IP65

The fiber access termination closure is able to hold up to 24 subscribers and 96 splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Specifications

Product Details

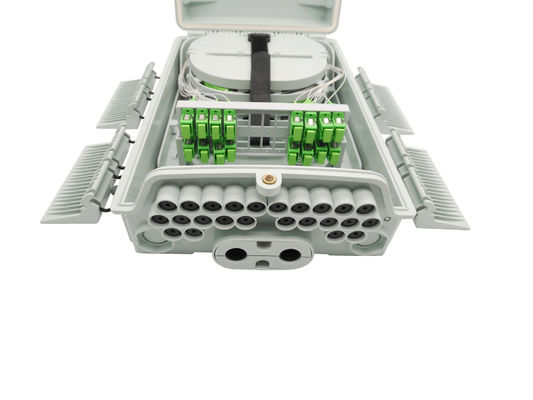

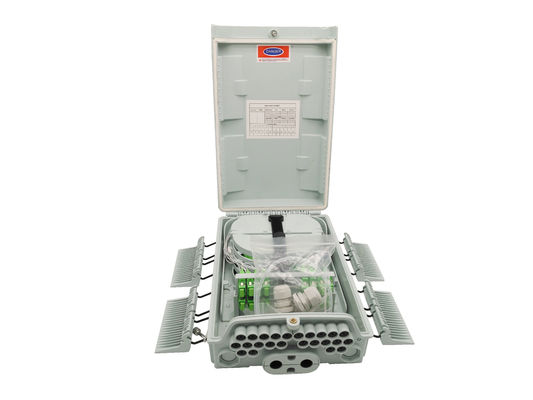

• 24cores ODB box enclosure internal is splice tray and adapter holders design, which is quite popular and easy for FTTH access network,details see below:

• It is made by ABS & PC to splice and connect fibers in FTTX network system with IP65 waterprof and dustproof grade.

• The distibution box use key and buckles to close the box.
• There are 4pcs splice trays which can be flipped up, each tray is for 24 splicing fibers,maximum 96cores fusion splice is available. The s plice trays are hold tight with cable ties.
•  1piece adapter panel can hold max. 24pcs SC simplex adapters. if have different splitter like 1x2 and 1x8, then can install input and output at different sides.
• On the bottom of box, it is designed to coil and store fibers.

• This box has 24 outputs for ftth flat drop cable 2x3mm or 2x5mm, 1 uncut port and 2 round cable glands PG13 diameter 12.5mm which will be installed now before delivery on the box.
• The plug in the outlet can be taken out.

• There are two ways to install PLC splitter on this box.

         1. Put the splitter tube in the splice tray slot which have been set, and input of connectors in the tray too.

         2. Put the splitter tube in the box bottom slots, and the connectors insert into the adapter on the bottom slot.

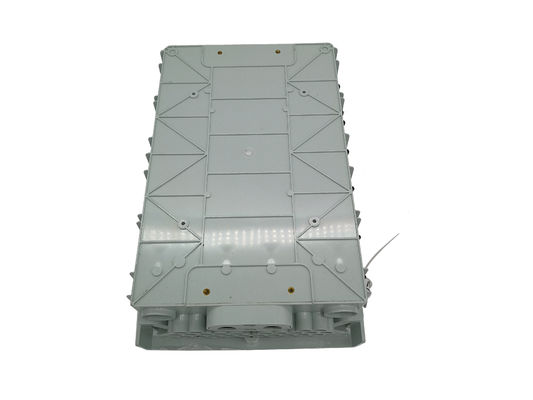

• The metal plates installed on the back of the box with 4pcs screws for wall mounting. If need pole mount, add 2pcs steel tape ring.

• Accessories and packing box.

Application

• Wall mounting and pole mounting installation
• FTTH pre-installation and filed installation
• 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable
