3 Ports 4 Cores FTTH Mini Termination Box ABS for 7-10mm and 2x3mm Drop Cable Entry ROHS

3 Ports 4 Cores FTTH Mini Termination Box ABS for 7-10mm and 2x3mm Drop Cable Entry ROHS

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Material
    ABS
  • Color
    Milk Yellow
  • Capacity
    4 Cores SC, 8 Cores LC
  • Splitter Qty
    1pcs 1*4 Mini Splitter
  • Adapter Qty
    4pcs SC Simplex Or LC Duplex
  • Mechanical Splicer
    4 Pcs
  • Cable Port
    3in 4out
  • Application
    Ftth Indoor With Shutter Dust-proof
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    FTB104E
  • Minimum Order Quantity
    200PCS
  • Price
    contact sales for details
  • Packaging Details
    1pc/box,20pcs/carton box
  • Delivery Time
    1week
  • Payment Terms
    T/T, Western Union

3 Ports 4 Cores FTTH Mini Termination Box ABS for 7-10mm and 2x3mm Drop Cable Entry ROHS

3 Ports 4 Cores FTTH Mini TerminationBox ABS for 7-10mm and 2x3mm Drop Cable Entry ROHS

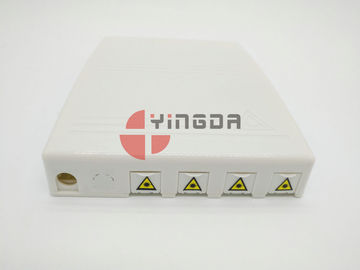

FTB104E optical fiber wall mount box is used in the end termination of residential building and villas to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles like SC or LC, wall mount with screws, with front shutter in each of adapter for dustrproof, humanity design but at reasonable price. All is brand new material ensure longer life span and high strength.



Features:

Ø Indoor wall mount application.

Ø Max capacity: 4 core, 1 X 4 PLC splitter and 4 Mechanical Splice for drop cable.

Ø Input Port Suitable Cable diameter 7-10mm.

Ø ABS Plastic and ROHS proof.



Specification:



Model FTB104E
Dimension 180*130*30.4mm
Max capacity 3ports+4 drop cable ports
Max. Capacity of the tray 1 tray 4-8 FO
Adapter 4 SC Simplex
PLC splitter Steel tube 1x4
Mechanical splicer 4 pcs



More details:

3 Ports 4 Cores FTTH Mini Termination Box ABS for 7-10mm and 2x3mm Drop Cable Entry ROHS 0 3 Ports 4 Cores FTTH Mini Termination Box ABS for 7-10mm and 2x3mm Drop Cable Entry ROHS 1

Bottom with tray, tray for fusion and fiber management ; tray is flip over, can be taken off by hand



3 Ports 4 Cores FTTH Mini Termination Box ABS for 7-10mm and 2x3mm Drop Cable Entry ROHS 2 3 Ports 4 Cores FTTH Mini Termination Box ABS for 7-10mm and 2x3mm Drop Cable Entry ROHS 3

  Side for cable entry and out, 3in ,4out ;  standard accessories:nylon tie,screws,sealing,sleeve,etc
