Fiber Optic Termination Box
Created with Pixso. 4 Port Fiber Optic Termination Box OTB FTB104E Plastic White for FTTH Drop Cable 2*3MM

4 Port Fiber Optic Termination Box OTB FTB104E Plastic White for FTTH Drop Cable 2*3MM

Brand Name: yingda
Model Number: FTB104E
MOQ: 200PCS
Price: contact sales for details
Delivery Time: 1week
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
ABS
Color:
Beige
Capacity:
4cores SC, 8cores LC
Splitter Qty:
1pcs 1*4 Micro Splitter
Adapter Qty:
4SC Simplex
Mechanical Splicer:
4pcs
Sample:
Ok
OEM:
OK
Packaging Details:
1pc/box,20pcs/carton box
Highlight:

fiber optic terminal box

,

fiber optic distribution box

Product Description

4 Port Fiber optic terminal box OTB FTB104E Plastic White for FTTH Drop Cable 2*3MM





Description:



The product is used in the end termination of residential building and villas to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles.



4 Port Fiber Optic Termination Box OTB FTB104E Plastic White for FTTH Drop Cable 2*3MM 04 Port Fiber Optic Termination Box OTB FTB104E Plastic White for FTTH Drop Cable 2*3MM 1

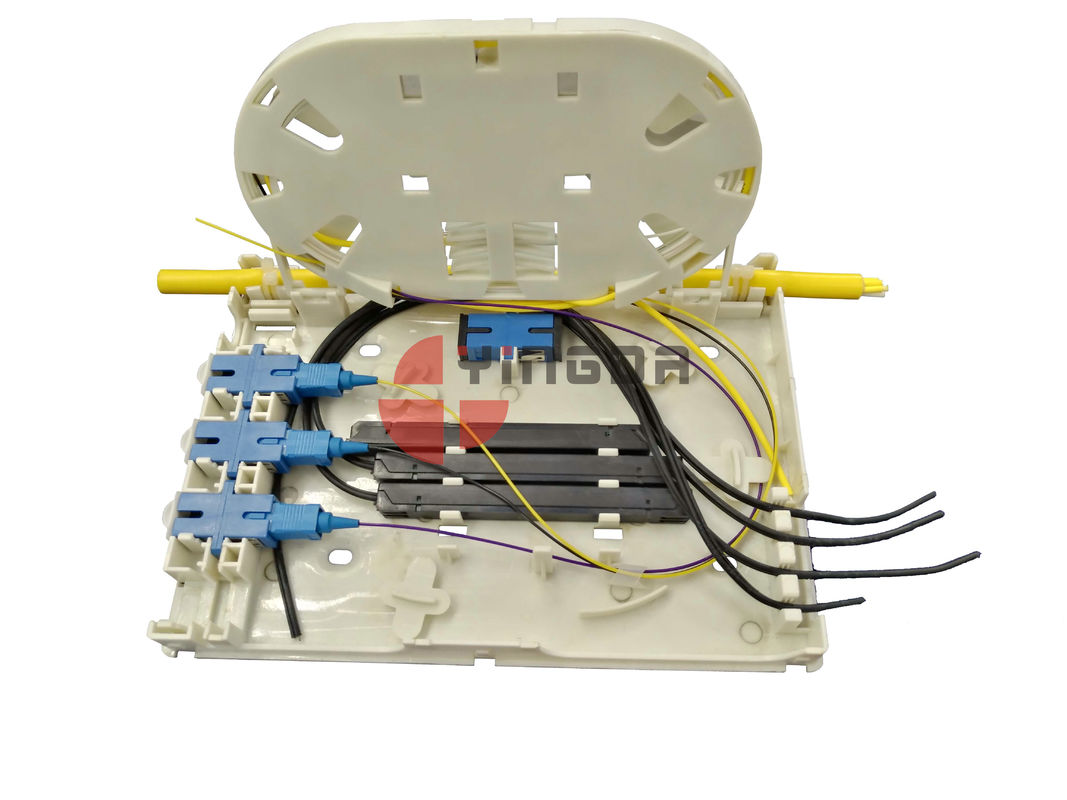

Splice tray: with splitter tube holder and                                    4pcs drop cable outputs

heatshrinkble fixtures,

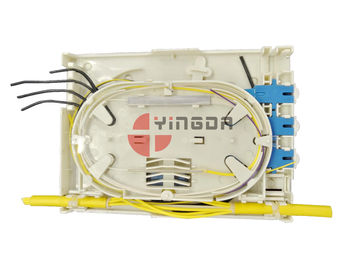

4 Port Fiber Optic Termination Box OTB FTB104E Plastic White for FTTH Drop Cable 2*3MM 24 Port Fiber Optic Termination Box OTB FTB104E Plastic White for FTTH Drop Cable 2*3MM 3

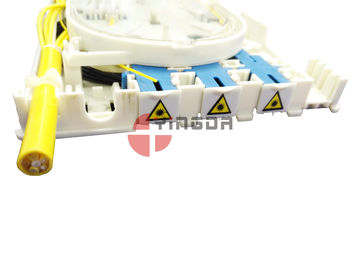

4pcs SC adaptr output is with dustproof cover                       left 2pcs cable input, right 1pcs cable input





Features:

Ø Indoor wall mount application.

Ø Max capacity: 4 core, 1 X 4 PLC splitter and 4 Mechanical Splice for drop cable.

Ø Input Port Suitable Cable diameter 7-10mm.

Ø ABS Plastic and ROHS proof.



Specification:

NO. Name Specification Unit Quantity
1 FTB104E 180*130*30.4mm set 1
2 Mechanical Splicer φ2.0mm, φ3.0mm, φ0.90 mm cable and FTTH drop cable 2x3mm set 4
3 PLC splitter PLC-1X4 set 1
