Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box

Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box

Products - Fiber Optic Termination Box
  • High Light

    fiber optic junction box

    ,

    fiber optic distribution box

  • Max Capacity
    24 Cores
  • Box Type
    Fiber Optic Distribution Box
  • Dimension
    246.5*193*53.2mm
  • Material
    ABS
  • Color
    White
  • Adatper Ports
    24pcs SC Simplex
  • Cable Ports
    2 Ports At Both Side In Front
  • Application
    Ftth Wall Mount Indoor Use
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB0224B
  • Minimum Order Quantity
    100PC
  • Price
    Negotiable
  • Packaging Details
    1pc/box,20pcs/carton box
  • Delivery Time
    1week
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100k pcs / month

Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box

  • Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box
  • Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box
  • Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box
  • Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box
  • Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box
Get Price Contact Now

Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box





Features

  • Indoor wall mount with screws
  • Cable entry without cutting;
  • Two kinds of fiber modules; The one is for max. 24fibers splicing, the other is for 1pc PLC 1X16 or 2pcs 1x8 STEEL TUBE SPLITTER+4~8 fo splicing.
  • 24pcs SC simplex adapter for distribution
  • All operation in front of box, easy to operate and maintainance for on-site working.
  • Compact size, light weight, user friendly interface and cable management design
  • Enough space for fiber fusion, management and storage
  • There is longer cover for adapters to prevent inner fiber broken or from dust and humidity



Specification



Model FTB0224B
Dimension: 246.5*193*53.2mm
Material: ABS
Adapter port: 24SC SX
Splice tray: 1module 12-24FO
Max. Capacity: 24FO
Cable ports: 2 ports
Color White



Packing



Model Carton Size (L*W*H) G.W./Carton (kg) Quantity/Carton
FTB0224B 54*43*36cm 18 20pcs



Product details:

Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box 0Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box 1

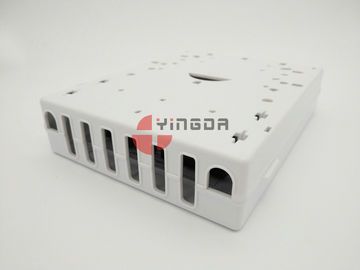

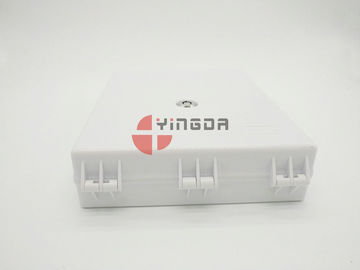

2 cable ports at both sides, immediate 6ports for 24adapters; bottom with wall mount holes



Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box 2Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box 3

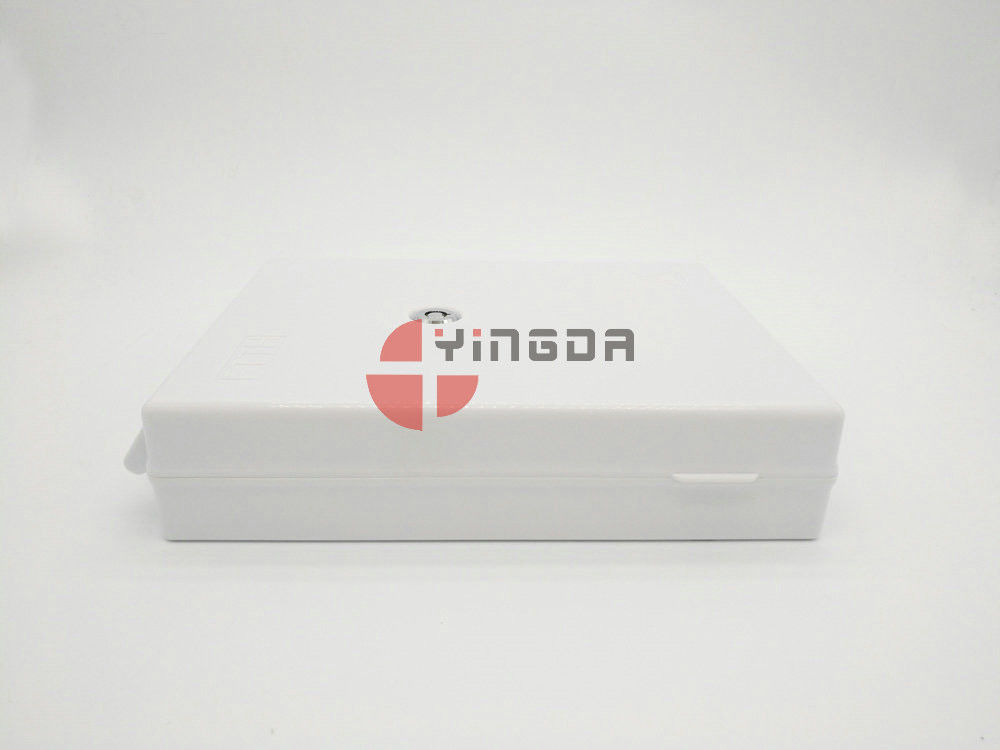

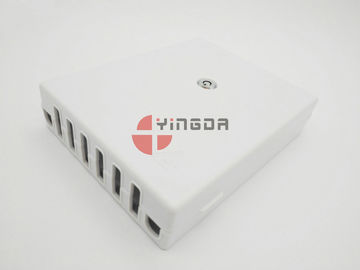

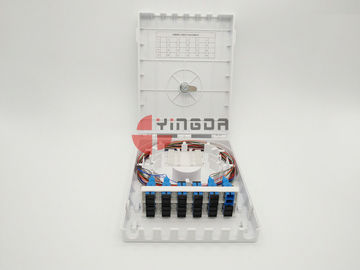

box side view, fully load with 16pcs SC/UPC pigtails 1mts and 24 pcs SC/UPC simplex adapters



Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box 4Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box 5





Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box 6Optical Terminal Box OTB White ABS Plastic Indoor Wall Mount 24 Fibers Distribution Splice Box 7
