24 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front

24 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front

  • High Light

    fiber optic terminal box

    ,

    fiber optic distribution box

  • Max Capacity
    24 Cores
  • Box Type
    Fiber Optic Distribution Box
  • Model
    OTB-24A
  • Material
    ABS
  • Color
    White
  • Adatper Ports
    24 Ports
  • Cable Ports
    2 Ports At Both Side In Front
  • Application
    Ftth Wall Mount Indoor Use
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB0224B
  • Minimum Order Quantity
    100PC
  • Price
    Negotiable
  • Packaging Details
    1pc/box,20pcs/carton box
  • Delivery Time
    1week
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100k pcs / month

24 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front

24 Cores Fiber Optic Distribution Box for Fiber To The Home Fusion Splice and Splitter Termination



FTB0024B terminal Box is made of high-quality ABS Plastic material. It’s mainly used for indoor wall-mounted installation. Box cover with locks, which prevent illegal open the box. It is suitable for fiber optic cable & pigtail splicing and protection.



Features

  • Total box is enclosed with keys and buckles, anti-thief, anti-UV;
  • It is amde of high strength plastic ABS, longer life span;
  • All operation in front of box, easy to operate and maintainance for on-site working.
  • Compact size, light weight, user friendly interface and cable management design
  • Enough space for fiber fusion, management and storage
  • There is longer cover for adapters to prevent inner fiber broken or from dust and humidity
  • With two kinds of fiber modules interchangeable, one module for 24cores splice, another module
  • Max. for 2pcs ¢15 mm cable input, supporting uncut cable go through the box;
  • Can install 1*16 PLC splitter or 2 pcs 1*8 PLC splitter;
  • Standard adapter panel is plastic type with 24 SC simplex Ports;
  • 12 SC simplex ports or 12 FC simplex port metal adapter panel are optional;

Protection rate: IP22;



Specification



Model FTB0224B
Dimension(W*H*L) 246.5*193*53.2mm
Max. Capacity 24 cores / single fiber
Adapter panel 1pc 24pcs SC simplex
PLC splitter 1pc 1*16 or 2pcs 1*8 steel tube splitter
Cable ports 2 inports, 24outports
Cable diameter ¢15 mm or ftth drop cable 2x3mm
Material ABS
Color White
Protection rate IP22

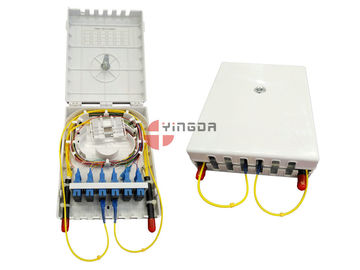

FTB0224B 24Port Terminal Box fully load with adapter and pigtails:

24 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front 024 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front 124 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front 224 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front 3

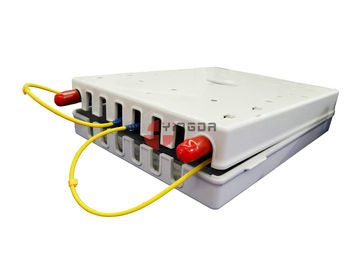

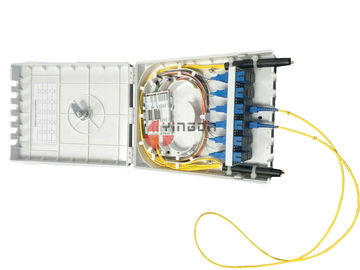

white box, with laser mark,anti-UV,                        cover and bottom is hinge and key connected



24 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front 424 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front 5

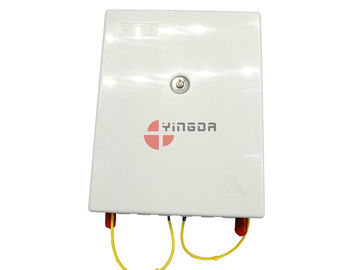

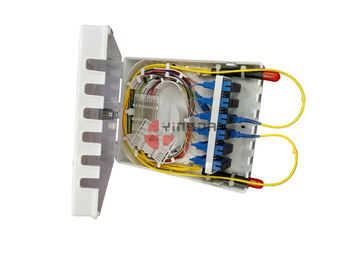

2 cable entry at each side Dia.15mm, 24pcs adapter ourports, simplex adaptor is fix b screws



24 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front 624 Cores Fiber Optic Termination Box 2 Ports At Both Side In Front 7

Fiber optic fusion splice module with splice holders, bottom with wall mount screws holes





Packing



Model Carton Size (L*W*H) G.W./Carton (kg) Quantity/Carton
FTB0224B 54*43*36cm 18 20pcs
