24 Cores Fiber Optic Distribution Box for Fiber To The Home Fusion Splice and Splitter Termination Enclosure

Name: 24 Cores Fiber Optic Distribution Box for Fiber To The Home Fusion Splice and Splitter Termination Enclosure
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FTB0224B
Price: 2.18 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FTB0224B
MOQ:	100PC
Price:	0.18USD-4.29USD
Delivery Time:	1week
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Max Capacity:

24 Cores

Box Type:

Fiber Optic Distribution Box

Model:

OTB-24A

Material:

ABS

Color:

White

Adatper Ports:

24 Ports

Cable Ports:

2 Ports At Both Side In Front

Application:

Ftth Wall Mount Indoor Use

Packaging Details:

1pc/box,20pcs/carton box

Supply Ability:

100k pcs / month

Highlight:

fiber optic terminal box

fiber optic distribution box

Product Description

24 Cores Fiber Optic Distribution Box for Fiber To The Home Fusion Splice and Splitter Termination

FTB0024B terminal Box is made of high-quality ABS Plastic material. It’s mainly used for indoor wall-mounted installation. Box cover with locks, which prevent illegal open the box. It is suitable for fiber optic cable & pigtail splicing and protection.

Features

Total box is enclosed with keys and buckles, anti-thief, anti-UV;
It is amde of high strength plastic ABS, longer life span;
All operation in front of box, easy to operate and maintainance for on-site working.
Compact size, light weight, user friendly interface and cable management design
Enough space for fiber fusion, management and storage
There is longer cover for adapters to prevent inner fiber broken or from dust and humidity
With two kinds of fiber modules interchangeable, one module for 24cores splice, another module
Max. for 2pcs ¢15 mm cable input, supporting uncut cable go through the box;
Can install 1*16 PLC splitter or 2 pcs 1*8 PLC splitter;
Standard adapter panel is plastic type with 24 SC simplex Ports;
12 SC simplex ports or 12 FC simplex port metal adapter panel are optional;

Protection rate: IP22;

Specification

Model	FTB0224B
Dimension(WHL)	246.519353.2mm
Max. Capacity	24 cores / single fiber
Adapter panel	1pc 24pcs SC simplex
PLC splitter	1pc 116 or 2pcs 18 steel tube splitter
Cable ports	2 inports, 24outports
Cable diameter	¢15 mm or ftth drop cable 2x3mm
Material	ABS
Color	White
Protection rate	IP22

FTB0224B 24Port Terminal Box real pictures:

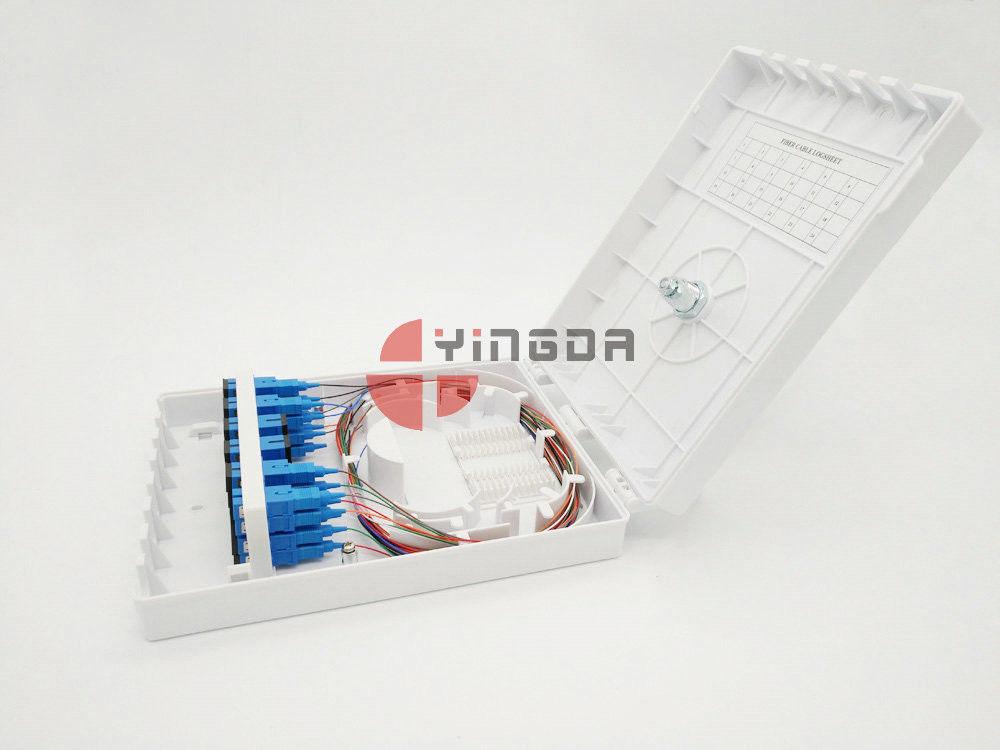

24 Cores Fiber Optic Distribution Box for Fiber To The Home Fusion Splice and Splitter Termination Enclosure 0

white, box with hinge, ftth mark anti laser mark, 24adaper ports,2 cable entry

24 Cores Fiber Optic Distribution Box for Fiber To The Home Fusion Splice and Splitter Termination Enclosure 2

adapter panel for simplex coupler, need screws, box bukcles at sides, stainless steel metal parts

24 Cores Fiber Optic Distribution Box for Fiber To The Home Fusion Splice and Splitter Termination Enclosure 4

24pcs splice module,and enough fiber storage fiber management and storage view

24 Cores Fiber Optic Distribution Box for Fiber To The Home Fusion Splice and Splitter Termination Enclosure 6

key from bottom view, it lock the whole box key from top view, anti-thief

Packing

Model	Carton Size (LWH)	G.W./Carton (kg)	Quantity/Carton
FTB0224B	544336cm	18	20pcs
