24 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount

24 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Material
    PC+ABS
  • Color
    White
  • Cable Entry
    2 For Uncut Ports
  • Cable Exit
    24 Pcs For Figure 8 Drop Cable Or Indoor 3mm Cable
  • Dimension
    200*150*46mm
  • Type
    Fiber Optic Splice Box
  • Application
    Outdoor Wall Mount / Pole Mount
  • Adapter Qty
    4 Pcs SC Duplex Adapter
  • Max. Capacity
    24 Fibers / Cores
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FTB208 FTB0224
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    10pcs/box,60pcs/carton
  • Delivery Time
    7days
  • Payment Terms
    Western Union, T/T

24 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount

FTTH Uncut Drop Cable Fiber Optic Customer End Termination Box PC+ABS White 2 In 24 Out





This terminal box is widely used in FTTH access network, telecommunication networks, CATV networks, Data communications networks, Local area networks, it can be used as a splice box or splitter box on demand.



Product outer appearance:



24 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount 024 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount 1

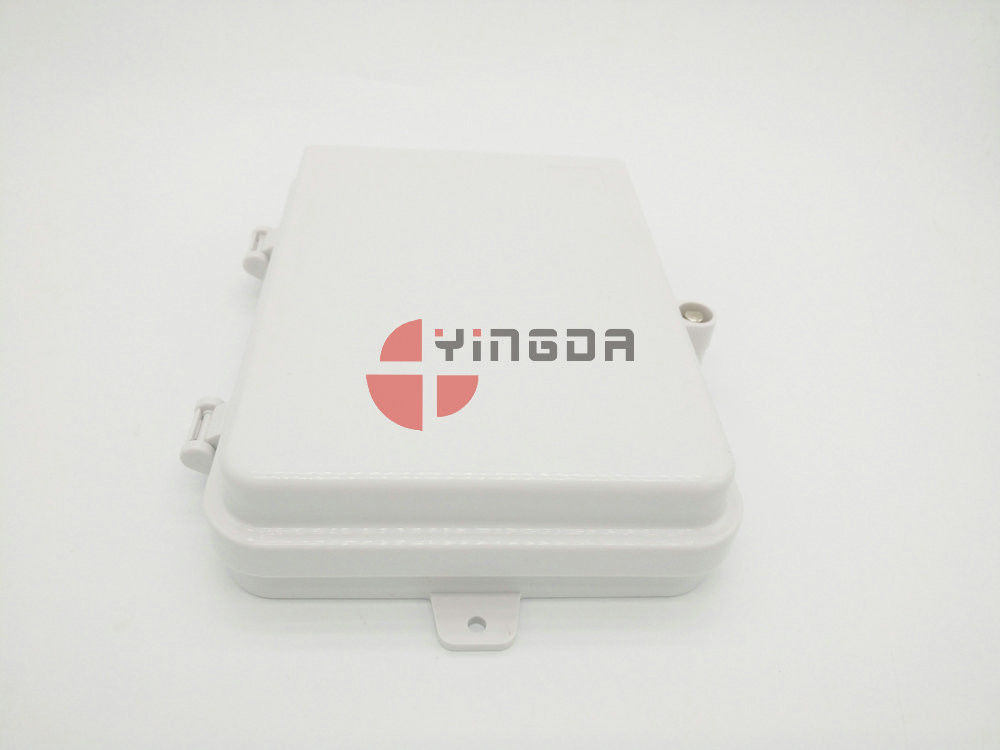

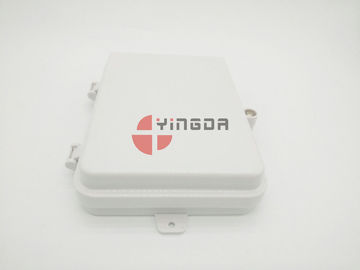

                       Front: key & buckles                                    Back: hinges for cover and bottom

24 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount 224 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount 3

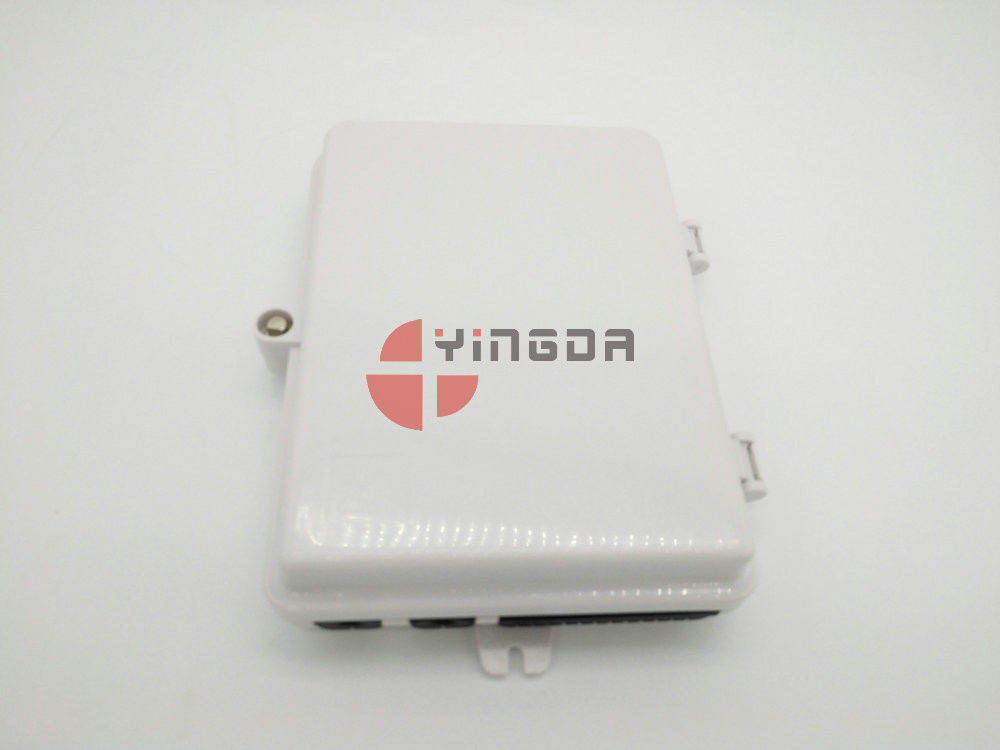

                       Top: wall mount hole                                       Bottom: wall mount with screws



Features

  • it use industry standard user interface, can max hold 8pcs SC adapter
  • It is made of high impact plastic PC alloy.
  • It can accommodate 1x4, 1x8 PLC splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • 2 inports for uncut feeder cable, 24 outports for FTTH drop cable
  • Up to 24pcs FTTH figure 8 drop cable
  • Outdoor wall mount or pole mount application



Specification



Model

Dimension

(W*D*H) mm

Max. Capacity Cable ports Cable diameter(mm)
FDB208 200*150*46

PLC 1:8(1pc)

PLC 1:4(2pc)

2inputs,

24outputs

In:Ø10, out:Ø2*3
FTB0224 200*150*46 24 cores



Product details:



24 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount 424 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount 5

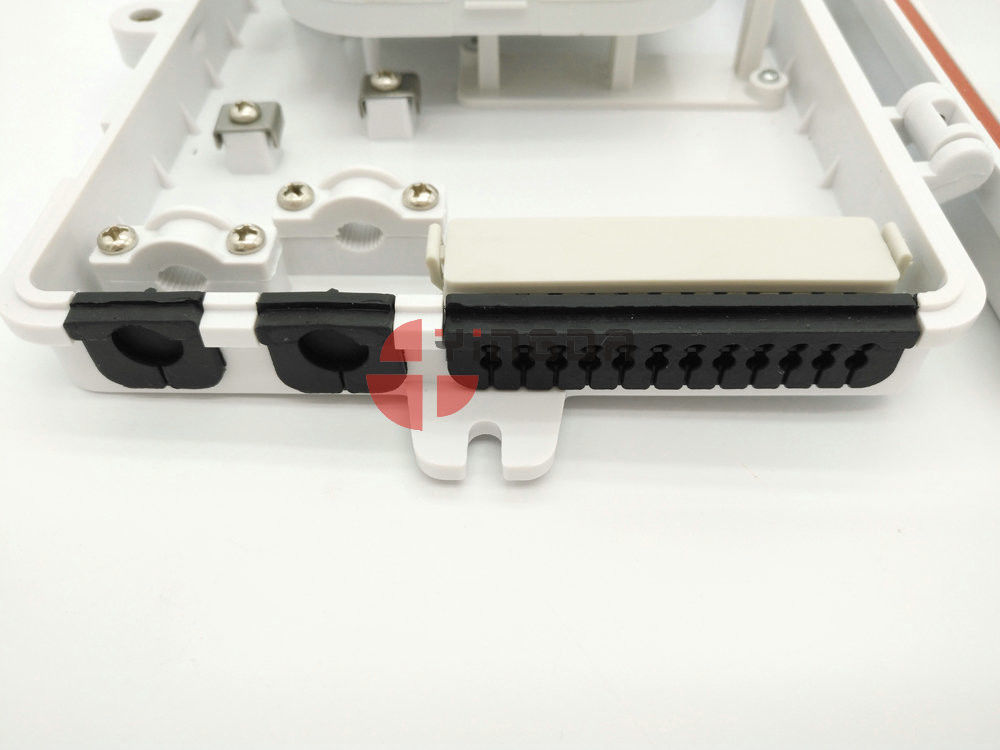

 Cable outports: 24pcs FTTH drop cable 2x3mm or indoor 3mm round soft cable

24 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount 624 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount 7

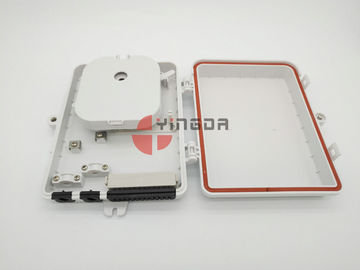

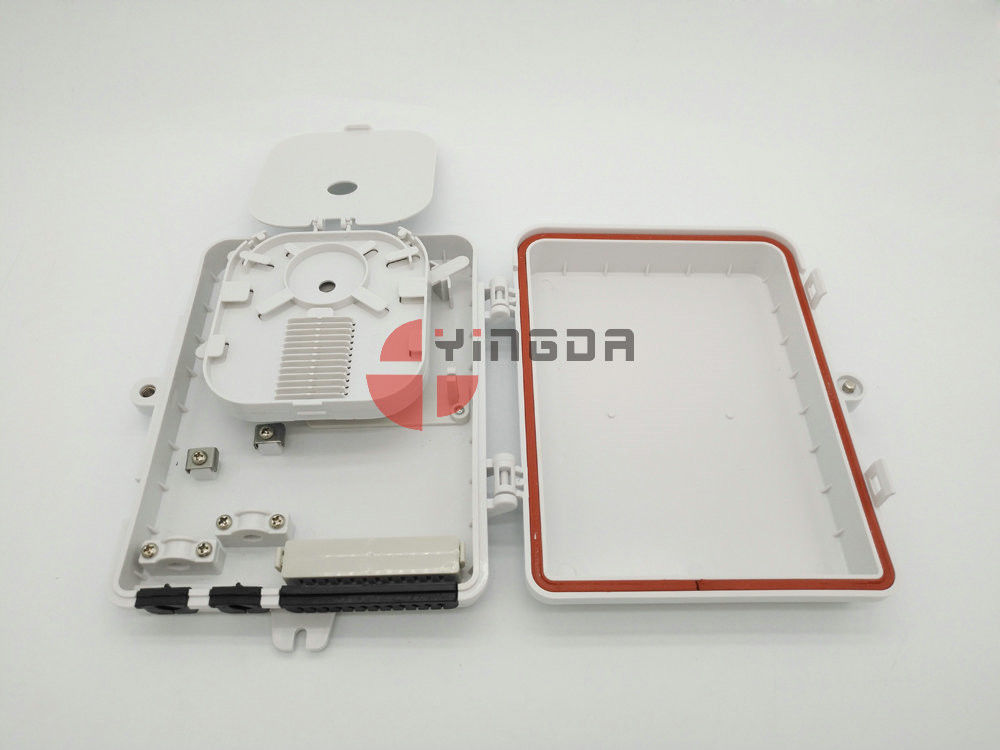

splice tray: 2pcs, each hold 12 cores single fiber, with splice holder. Under the splice tray, there is cable management  rods

24 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount 824 Ports FTTH Drop Cable Fiber Optic Termination Box for Distribution Feeder Cable Wall Mount 9

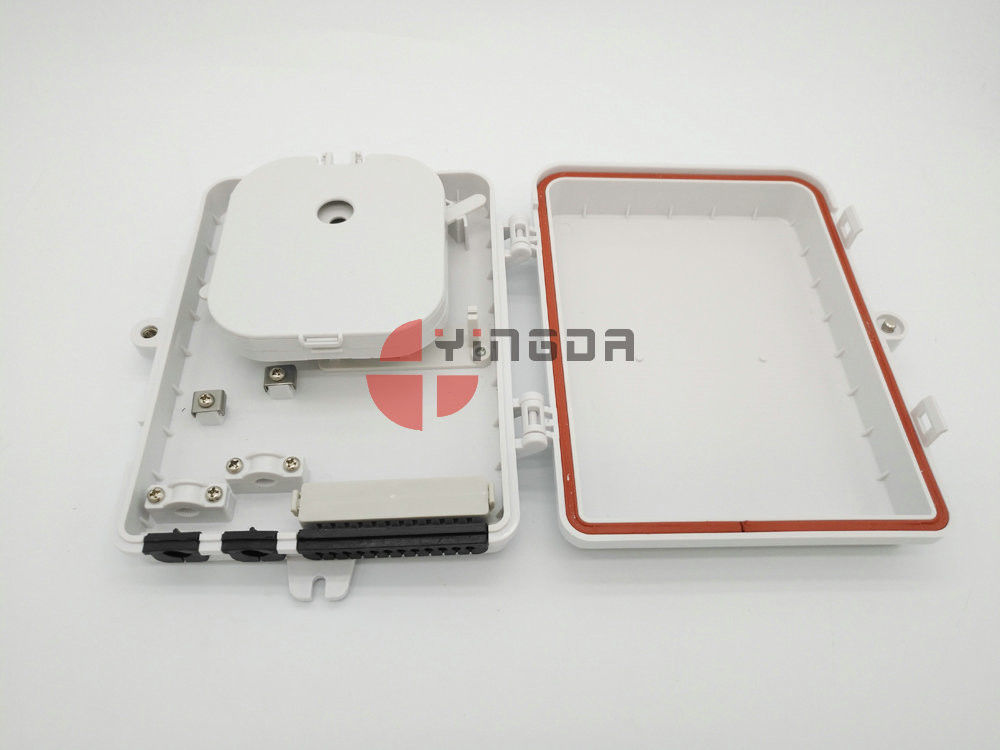

There is red waterproof ring to prevent from water and dust.  adapter panel is fix on the box with screws, but adapter no need screws to fix, only clip in,max. 4pcs SC duplex or LC quad couplers.



Fully load with adapter, splitter or pigtails at factory is ok.



Welcome any inquiry.
