Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White

  • Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White
  • Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White
  • Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White
  • Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White
Place of Origin china
Brand Name yingda
Certification ISO
Model Number FTB86N
Minimum Order Quantity 500pcs
Price negotiable
Packaging Details 1pc/box, 200pcs/carton
Delivery Time 5-7days
Payment Terms T/T, Western Union

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color White Dimension 90*90*16mm
Type Socket Panel Application End User Wall Outlet
Material Pc+abs Capacity 2cores
Sleeve 40mm Or 45mm
High Light

fiber optic terminal box

,

fiber optic junction box
Leave a Message
Product Description

Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White





FTB86N is used in the end termination of residential buildings and villas, to fix and splice with pigtails.

It can be installed on wall, may adapt variety of optical connection styles, optical fiber can be

managed effectively.



Features



  • Small size, light weight, pleasant appearance
  • Cable entry and exit in front not at back, easy to operate and managment
  • Set strengthen device and fiber optic cable mounting seat
  • May adapt SC/ LC duplex connectors
  • Optical fiber can be managed effectively
  • 2pcs FTTH drop cable outports
  • Maximum fusion 2 fibers
  • Indoor wall mount

Specification



Model FTB86N
Dimension (W*D*H)mm 90*90*16
Max. Capacity 2core (single fiber)
Cable ports 2pcs SC + 2 drop cable ports
Cable diameter(mm) 2*Φ3mm drop cable or indoor cable
Adapter 2pcs SC
Color White
Material

PC+ABS





Product distribution and stucture as below:

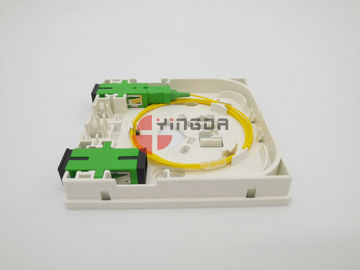

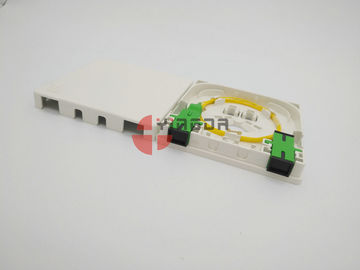

Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White 0    Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White 1

The box cover and bottom is seperated, and with clips at both sides for box close.

 ABS+PC material, high strength and anti-dust, it is more stable and solid, longer life time

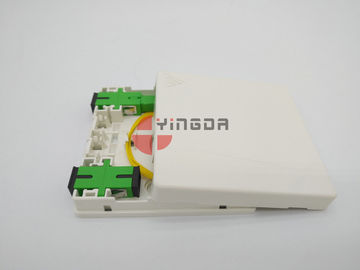

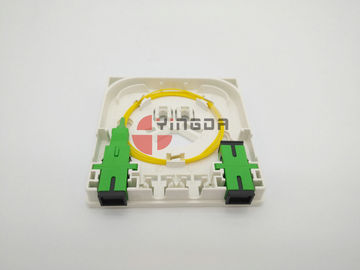

Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White 2   Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White 3



The box can hold 2 pieces SC adapter with flange and 2 pieces pigtials for fusion splice inside. it has 2 piece white cable clamp on the bottom, when u need, pls take it off and use it. it has places for heatshrink protection tube, max. can use 40mm length.



Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White 4   Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White 5

the whole box is enclosed before delivery, and the cable entry port is in front of the box, you can manage fusion, cut cable and entry in front, more easy and quick to make construction on site.



2pcs wall mount holes on the back of the bottom. with holes for air in and out.





Standard accessories

sleeve - 2pcs

wall mount screws - 2sets



Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White 6   Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White 7



Pack information:

1 piece / plastic bag,  50 pieces / small cardborad box, 200 pieces / shipping cardboard box.





We make a lot of fiber optic socket for wall  mount instalation. pls see below:

Indoor Face Plate Of Fiber To The Home Wall Socket Panel 2 Ports SC ABS+PC White 8
