 2 Port Fiber Optic Termination Box With SC/APC fiber optic junction box

 2 Port Fiber Optic Termination Box With SC/APC fiber optic junction box

  • High Light

    fiber optic terminal box

    ,

    fiber optic distribution box

  • Color
    White
  • Dimension
    90*90*16mm
  • Type
    Socket Panel
  • Application
    End User Wall Outlet
  • Material
    Pc+abs
  • Capacity
    2cores
  • Sleeve
    40mm Or 45mm
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    FTB86N
  • Minimum Order Quantity
    500pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 200pcs/carton
  • Delivery Time
    5-7days
  • Payment Terms
    T/T, Western Union

 2 Port Fiber Optic Termination Box With SC/APC fiber optic junction box

2 Port Fiber Optic Termination Box With SC/APC Pigtails & Adapters Anti-Fire, Anti-UV





FTB86N is used in the end termination of residential buildings and villas, to fix and splice with pigtails.

It can be installed on wall, may adapt variety of optical connection styles, optical fiber can be

managed effectively.



Features



  • Small size, light weight, pleasant appearance
  • Cable entry and exit in front not at back, easy to operate and managment
  • Set strengthen device and fiber optic cable mounting seat
  • May adapt SC/ LC duplex connectors
  • Optical fiber can be managed effectively
  • 2pcs FTTH drop cable outports
  • Maximum fusion 2 fibers
  • Indoor wall mount



Product details

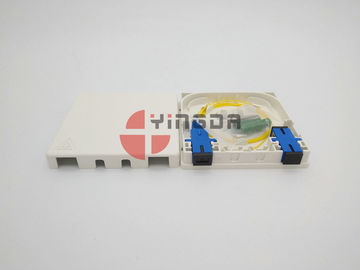

 2 Port Fiber Optic Termination Box With SC/APC fiber optic junction box 0

                                              TOP & BOTTOM

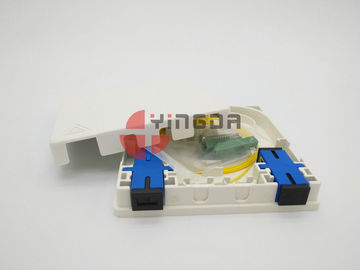

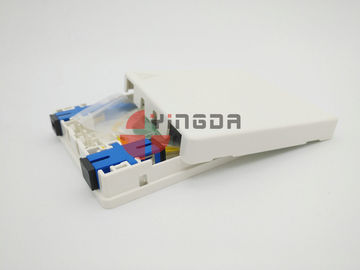

 2 Port Fiber Optic Termination Box With SC/APC fiber optic junction box 1 2 Port Fiber Optic Termination Box With SC/APC fiber optic junction box 2

                           FRONT                                                            LEFT SIDE

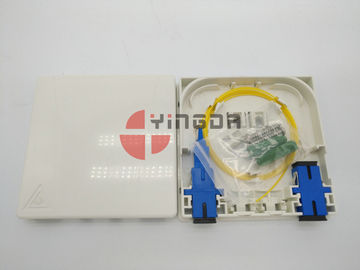

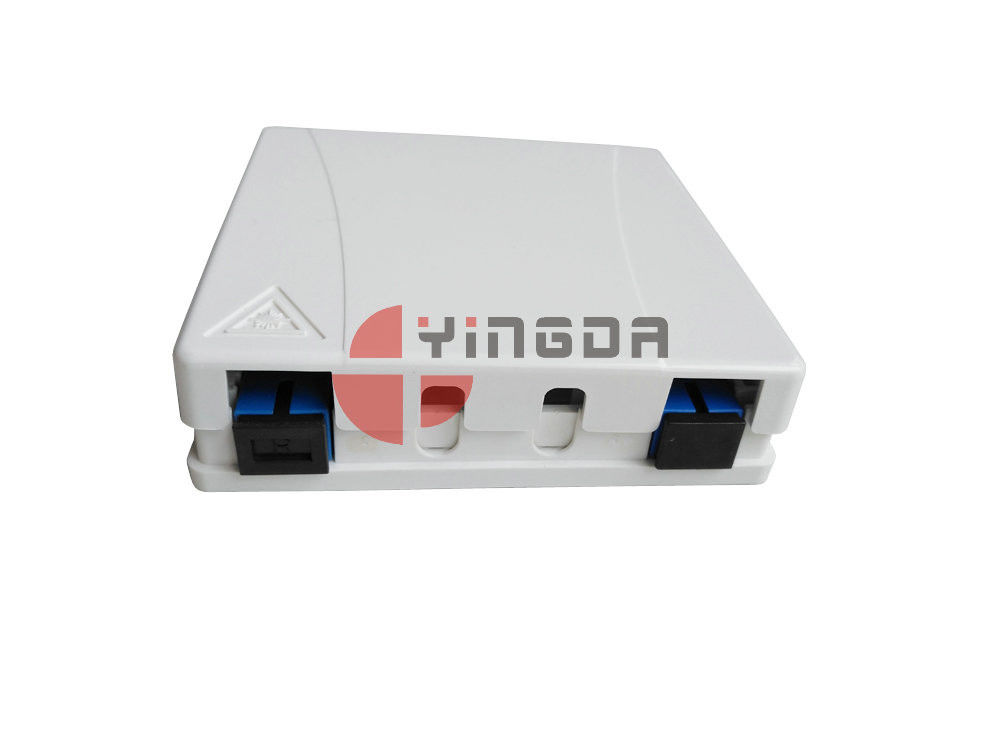

 2 Port Fiber Optic Termination Box With SC/APC fiber optic junction box 3 2 Port Fiber Optic Termination Box With SC/APC fiber optic junction box 4

                             BACK                                                             RIGHT SIDE



Specification



Model FTB86N
Dimension (W*D*H)mm 90*90*16
Max. Capacity 2core (single fiber)
Cable ports 2pcs SC + 2 drop cable ports
Cable diameter(mm) 2*Φ3mm drop cable or indoor cable
Adapter 2pcs SC
Color White
Material PC+ABS



Standard accessories

sleeve - 2pcs

wall mount screws - 2sets
