FTTH Socket Panel In Buildings Wall Mounting With Screws Front Cable Exit Outlet

FTTH Socket Panel In Buildings Wall Mounting With Screws Front Cable Exit Outlet

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Color
    White
  • Dimension
    90*90*16mm
  • Type
    Socket Panel
  • Application
    End User Wall Outlet
  • Material
    Pc+abs
  • Capacity
    2cores
  • Sleeve
    40mm Or 45mm
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    FTB86N
  • Minimum Order Quantity
    500pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 200pcs/carton
  • Delivery Time
    5-7days
  • Payment Terms
    T/T, Western Union

FTTH Socket Panel In Buildings Wall Mounting With Screws Front Cable Exit Outlet

New FTTH Socket Panel In Buildings Wall Mounting With Screws Front Cable Exit Outlet





Used in the end termination of residential buildings and villas, to fix and splice with pigtails.

It can be installed on wall, may adapt variety of optical connection styles, optical fiber can be

managed effectively.



Features

Small size, light weight, pleasant appearance

Cable entry and exit in front not at back, easy to operate and managment

Set strengthen device and fiber optic cable mounting seat

May adapt SC/ LC duplex connectors

Optical fiber can be managed effectively

2pcs FTTH drop cable outports

Maximum fusion 2 fibers

Indoor wall mount



Specification

Model FTB86N
Dimension (W*D*H)mm 90*90*16
Max. Capacity 2core (single fiber)
Cable ports 2pcs SC + 2 drop cable ports
Cable diameter(mm) 2*Φ3mm drop cable or indoor cable
Adapter 2pcs SC
Color White
Material PC+ABS



More product show

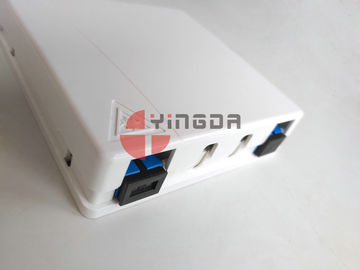

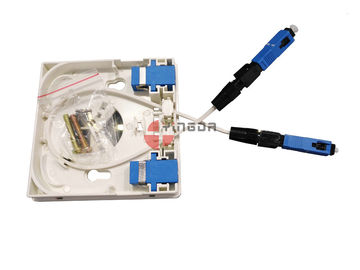

FTTH Socket Panel In Buildings Wall Mounting With Screws Front Cable Exit Outlet 0FTTH Socket Panel In Buildings Wall Mounting With Screws Front Cable Exit Outlet 1



                                  TOP                                                          BOTTOM

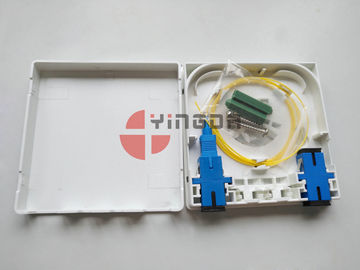

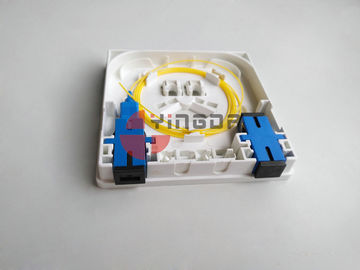

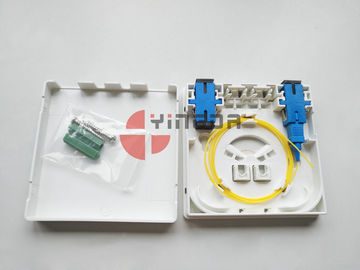

FTTH Socket Panel In Buildings Wall Mounting With Screws Front Cable Exit Outlet 2FTTH Socket Panel In Buildings Wall Mounting With Screws Front Cable Exit Outlet 3

                              FRONT                                                           INTERNAL
