Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Splitter Box
Created with Pixso. 12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65
Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65

Brand Name: YINGDA
Model Number: FDB0212C
MOQ: 200pcs, first order accept small order
Price: 1.0USD-18.6USD
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
PC+ABS
Capacity:
12 Fibers
Adapter Qty:
8piece SC
Split Ratio:
1x2,1x4,1x8 Blockless Splitter
Color:
Gray
Size:
250*190*39mm
Connector Insertion Loss:
<0.2dB
OME Or Sample:
Ok
Cable Port:
2inlet，12outlet，express Inputs
Cable Diameter:
16mmfor Inputs, 3mm For Outputs
Packaging Details:
1pc/box, 20pcs/carton box
Supply Ability:
50k per month
Highlight:

optical distribution box

,

splitter distribution box

Product Description

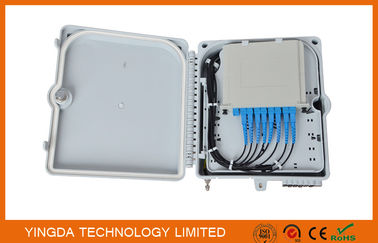

12Cores Fiber Distribution Box, Optical Splitter Module Junction Box Outdoor Pole Mounting Gray ABS for FTTH IP65





This ftth box terminates up to 2 fiber optic cables, offers space for splitters and up to 12 fusions, allocates 8 pcs of SC adapters with 1x8 PLC splitter module and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.



Features

  1. ABS/PC material used ensures the body strong but light weight.
  2. Total enclosed before shipment, and ready for wall mount, installation kits included.
  3. Adapter slots design, not need special screws or tools
  4. LGX module max. can hold 1x2, 1x4, 1x8 blockless PLC splitter
  5. Space saving:Double-layer design for easier installation and maintenance: Lower layer for splitters and over length fiber storage; Upper layer for splicing, cross-connecting and fiber distribution.
  6. Cable fixing units provided for fixing the outdoor optical cable.
  7. Accommodates both cable glands or un-cut ports( tie-wraps)
  8. There is clip design to close the box, also lock provided for extra security
  9. Outdoor protection Level: IP65.


Application

  • CATV Networks
  • FTTH access network.
  • Local Area Networks
  • Telecommunication Networks
  • Data Communications Networks

12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65 0



Specifications



Model FDB-0212C
Dimension (W*H* D) 235*200* 60mm
Splitter 1x2,1x4,1x8 MICRO Splitter
Material Pc+Abs
Color White/gray/black
Adapter Max. 8pcs
Fusion Max. 12cores
Cable diameter 16mm or 2*3.0mm drop cable
Operation conditions Temperatures:-40℃ -- 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa


Standard accessory

  • Terminal box X1 unit
  • Keys for lock X2 keys
  • Wall mount installation accessories X1 set

More pictures

12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65 112 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65 2

12 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65 312 Cores Fiber Distribution Box , Optical Splitter Module Junction Box for FTTH IP65 4

Tags:

splitter distribution box

optical distribution box

fiber optic closure
