Fiber Optic Termination Box
Created with Pixso. SC LC Fiber Optic Wall Outlet For Indoor White ABS Material

SC LC Fiber Optic Wall Outlet For Indoor White ABS Material

Brand Name: yingda
Model Number: FTB86L
MOQ: 100 PCS
Price: Negotiation
Delivery Time: 5-8days
Payment Terms: Western Union, MoneyGram, T/T
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Max Capacity:
2 Cores
Outport:
Adapter Port Or Drop Cable
Material:
ABS + PC
Color:
White
Applicable:
FTTH Drop Cable, Indoor Cable, Round Cable
Size:
80*102*25mm
Adapter:
2 X SC SM SX
Structure:
Inner Clip Design With Cover
Fiber Mode:
Single Mode, Multimode
Customer LOGO:
OK
Packaging Details:
92 pcs per carton box
Highlight:

SC LC Fiber Optic Wall Outlet

,

Indoor Fiber Optic Wall Outlet

,

ABS Material Fiber Optic Wall Outlet

Product Description

2ports SC LC Fiber Optic Termination Box For Indoor Wall Mounted With Cassette White ABS Material



FTTH Fiber Socket is specially designed for FTTH (Fiber to The Home) for indoor application.

It is an indoor terminal applied in the FTTX network to connect the drop cable and ONU devices.

FTB86L wall socket is used in the end termination of residential buildings and villas to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles.

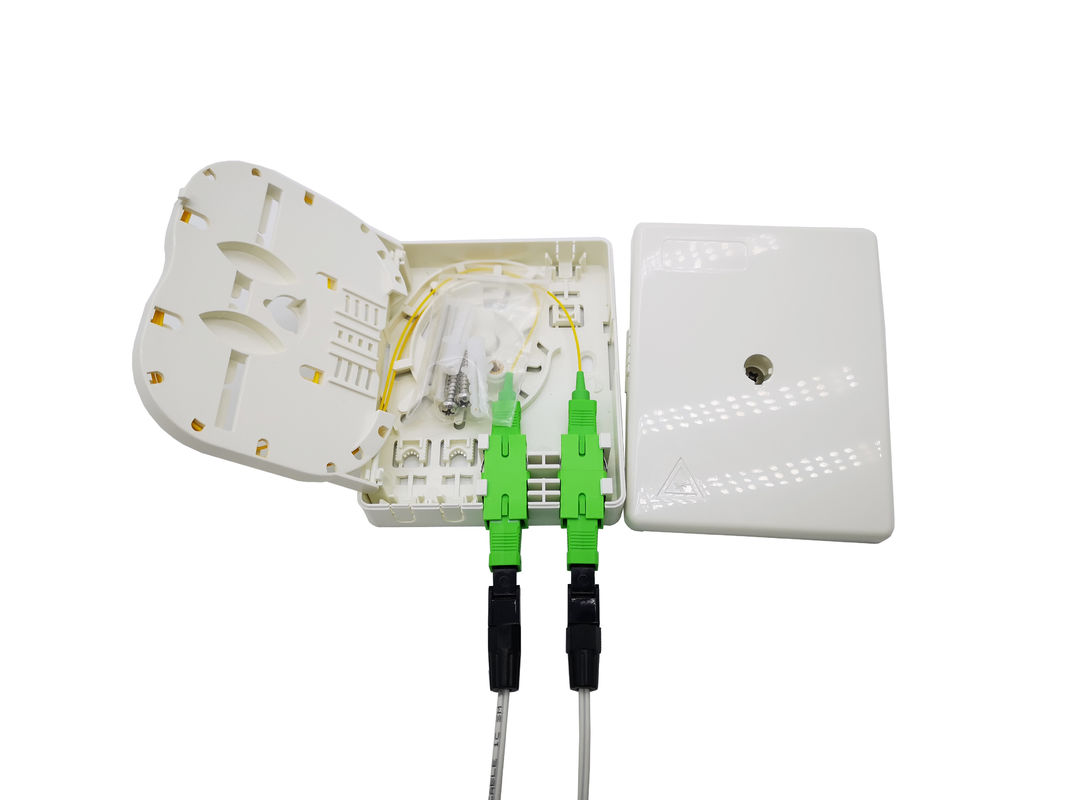

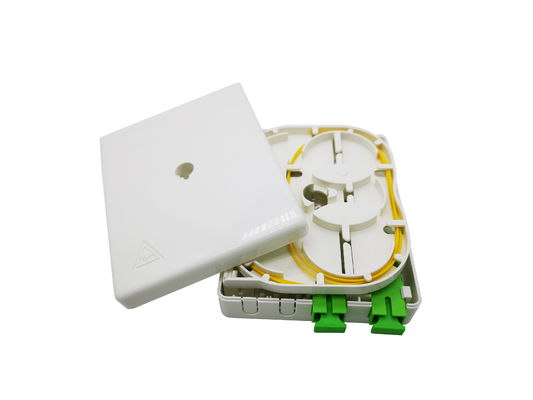

SC LC Fiber Optic Wall Outlet For Indoor White ABS Material 0SC LC Fiber Optic Wall Outlet For Indoor White ABS Material 1



Features:



      FTTH indoor wall mount, home or work area

      Embedded surface frame, easy to install and disassemble

      Integrated with splice cassette and cable management rods, manager fiber in a reasonable fiber radius condition

      Suitable for 2pc SC/LC duplex adapter, 4sleeve slot

      ABS+PC plastic, dust-proof,and ROHS proof, IP45 protection level

      Laser mark on lid, 1 anti falling screw in the middle to fix the lid with the bottom tightly.

      Unscrew the screw, and press both sides with strips to open the box.

      Top left logo print position reserved.





Applications:

  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data Communication Network

More photos showing

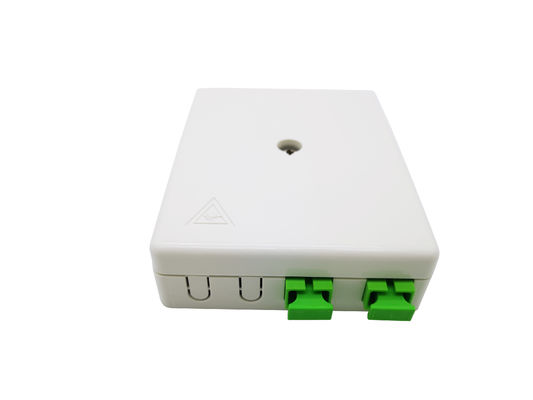

SC LC Fiber Optic Wall Outlet For Indoor White ABS Material 2

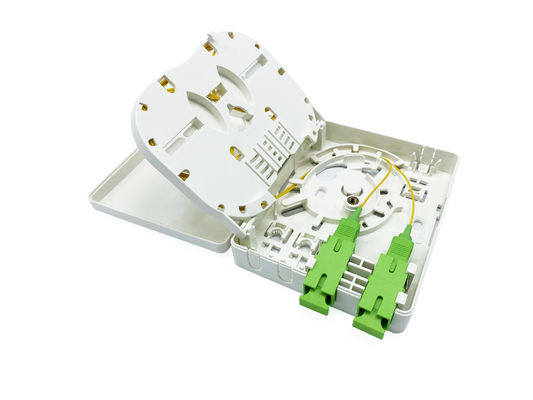

SC LC Fiber Optic Wall Outlet For Indoor White ABS Material 3



Specification

Model FTB86L
Dimension (W*D*H) 102*80*25mm
Max.Capacity 2 core (single fiber)
Cable ports 2 pcs
Cable diameter φ2.0mm.φ3.0mmφ0.9mm cable and FTTH drop cable 2x3mm
Adapter 2 SC / LC duplex

Packaging information



Model Carton quantity Net weight/ctn Gross weight/ctn Carton size
FTB-86L 102pcs 7.6kgs 8.22kgs 43*28.5*26cm










Other Fiber to Home Fiber Optic Wall Socket can be offered:

SC LC Fiber Optic Wall Outlet For Indoor White ABS Material 4





YINGDA TECHNOLOGY LIMITED Main products: Fiber Optic Termination Box, Wall Outlet,

 MPO MTP Cable assembly, FTTH terminal box, Splitter,Coupler, Adaptor, Fiber Optic Patch cord,

Optical Fiber Pigtails, Fiber Optic Connectors, Fiber Optic patch panel, Wall mount box, FTTH

drop cable, and other optical device accessories.



Welcome any inquiry at home and abroad at : sales@ydpcable.com.
