MTP MPO Cable
Created with Pixso. Simplex Fiber Cable , MPO / MTP - LC Harness Patch Cord Cable 0.9mm SM
Name
  • Name
  • Name
  • Name
  • Name

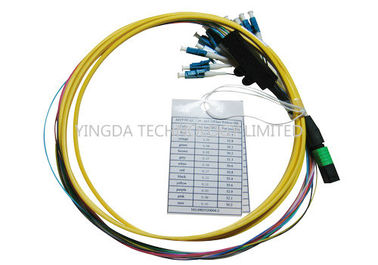

Simplex Fiber Cable , MPO / MTP - LC Harness Patch Cord Cable 0.9mm SM

Brand Name: YINGDA
Model Number: MPOf-12LC-OM2-03
MOQ: 100 pcs
Price: 0.2USD-100USD
Delivery Time: 7days after payment
Payment Terms: Western Union,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Connector:
MPO MTP Male
Fiber Type:
OS1 9/125UM
Cable Type:
Bundle Cable
Fiber Count:
12 Fibers LC Simplex
Insertion Loss:
<0.3dB
Package:
Vacuum Packing
Packaging Details:
1 pc/ box, 160 pcs/carton box
Supply Ability:
10,000 pcs per month
Highlight:

MPO fanout cable

,

mpo patch cable

Product Description

12 Fibers Breakout MPO / MTP -LC Harness Patch Cord Cable 0.9mm SM



MPO SM fiber cable description


YINGDA MPO / MTP Fan-out patch cords are simplex multifiber Cable using the MPO / MTP connector in fiber counts of 4, 8, 12, 24 or 48. There is Male or Female MPO / MTP connectors on each end, the other end is standard connectors like FC, SC, ST, LC,etc, connect both is break-out kits, which can be round or square type, all on customer request.


MPO Available in 4~48 fibers versions as well as multi-mode (62.5/125, 10G OM2 / OM3 / OM4, Bend-insensitive fiber, etc.) and singlemode (G652D, G657A1 etc.) fiber types.


YINGDA products are 100% tested at our factory to deliver optimal performance and reliability.


Features

  1. MPO / MTP connector interface patchcord.
  2. Choices of different cable structure to cater for different installation needs.
  3. Available in 4/8/12/24/48 cable fibers from round or ribbon optical cable.
  4. Improves and simplifies fiber routing, decreases fiber management space.
  5. Comply with IEC 61754-7, Telcordia GR-1435-CORE, RoHS.


Specification

Single mode

Multimode

Insertion Loss

≤0.3dB

≤0.3dB

Return Loss

≥50dB (PC)

≥20dB

Repeatability

≤0.1

≤0.1

Durability

≤0.2 dB typical change, 1000 matings

≤0.2 dB typical change, 1000 matings

Interchangeability

≤0.2dB

≤0.2dB

Tensile strength

≥10kg

≥10kg

Operating Temperature

-40 to + 80°C

-40 to + 80°C

Storage Temperature

-40 to + 80°C

-40 to + 80°C


Application


  1. installation in horizontal patch extension from consolidation point to the workstation outlets.
  2. High Density Fiber Management.
  3. Telecommunications networks and Broadband / CATV networks.
  4. DACS.
  5. LAN/WAN Premises


Order information


P/N

Description

MPOmA-12LC-S62

MPO Fan-out patch cord, OS2 (G652D),

MPO/APC Male-12xLC UPC 1m Yellow

MPOmA-62LC-S62

MPO Fan-out patch cord, OS2 (G652D),

MPO/APC Male-6xDuplex LC UPC 1m Yellow

MPOmA-12LC-S67

MPO Fan-out patch cord, SM (G655A),

MPO/APC Male-12xLC UPC 1m Yellow

MPOmA-62LC-S67

MPO Fan-out patch cord, SM (G655A),

MPO/APC Male-6xDuplex LC UPC 1m Yellow

MPOm-62LC-S62-U

MPO Fan-out patch cord, OS2 (G652D),

MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot

MPOm-62LC-S67U

MPO Fan-out patch cord, SM (G655A),

MPO/APC Male-6xDuplex LC UPC 1m Yellow uni-boot

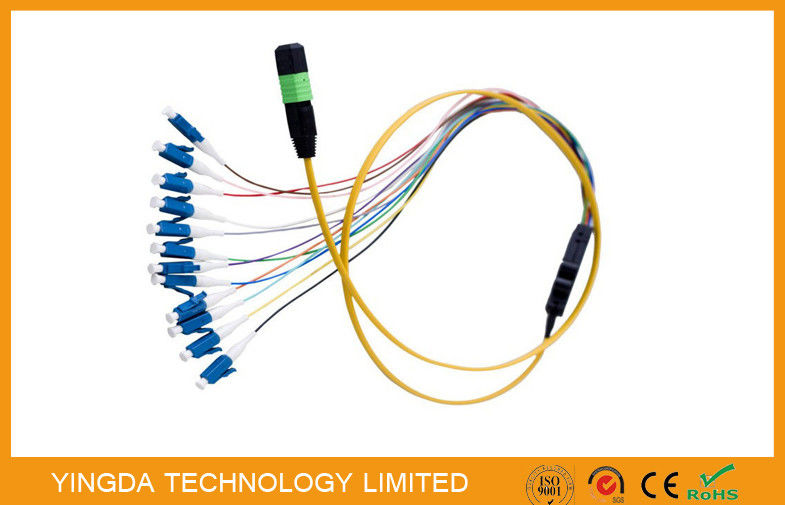

Assembly cable structure

Simplex Fiber Cable , MPO / MTP - LC Harness Patch Cord Cable 0.9mm SM 0


Simplex Fiber Cable , MPO / MTP - LC Harness Patch Cord Cable 0.9mm SM 1
