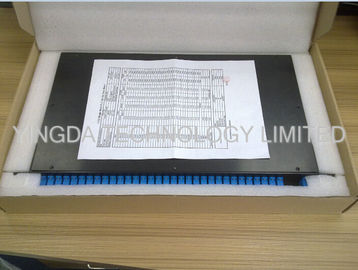

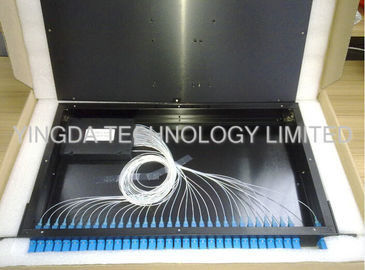

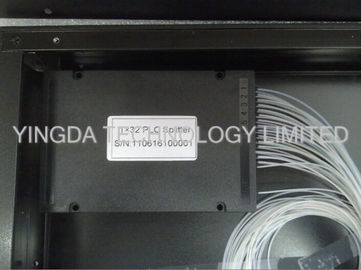

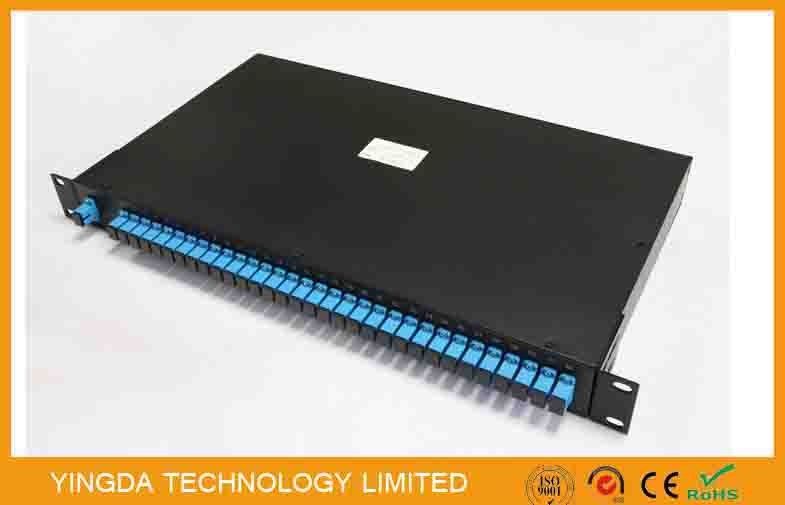

Rack Mount 19" 1 * 32 Fiber Optic PLC Splitter , Planar Lightwave Circuit Splitter

Place of Origin SHENZHEN,CHINA
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number FSM-132/SC
Minimum Order Quantity 100 pcs
Price negotiable
Packaging Details 1pc/ box, 5 pcs/carton box
Delivery Time 5-8days after payment
Supply Ability 10,000 pcs per month
Product Details
Size 1U Rack 19inch Split Ratio 1*32 Splitter Module
Connector SC/UPC Simiplex Fiber Type Single Mode G657A1
Rack Dimension 430x250x43mm N.w. 2.65kgs
Rack Color Black Material Cold rolled steel sheet
High Light

fiber optic splitter

,

plc splitter

Leave a Message
Product Description

19" Chassis Metal OLT Cabinet 1 * 32 Fiber Optic PLC Splitter Module, Optical Fiber Splitter





Planar lightwave circuit optical fiber splitter 1260-1650nm module 19” rack mount type box body

is made of electrostatic spraying cold rolled plate, exterior adapter panel can install FC, SC, ST,

LC adapter. It is suitable for small capacity optical splitting in FTTH network,achieve optical splitting

and distribution function, It is mainly used in network cabinet or comprehensive cabinet,

19'' standard structure, rack-mounted.





Features

  1. Light weight, strong strength
  2. Good anti-shocking and dust-proof
  3. Asy install
  4. Sheet thickness:1.0mm
  5. 4cable ports at back
  6. Suitable for SC LC FC connectors
  7. Electrostatic spraying cold rolled plate material
  8. Rack dimension can be customized
  9. Splitting ratio can be customized



Application

  1.  Fiber optical communication system
  2.  CATV system
  3.  LAN system



Specification



Model

Max PLC splitter ratio

Dimension(W*D*H)mm

Connector

FSM-108/SC

1&1X8 SC

430x250x43

SC/LC/FC

FSM-208/SC

1&2X8 SC

430x250x43

SC/LC/FC

FSM-116/SC

1&2116 SC

430x250x43

SC/LC/FC

FSM-216/SC

1&2X16 SC

430x250x43

SC/LC/FC

FSM-132/SC

1&1X32 SC

430x250x43

SC/LC/FC

FSM-232/SC

1&2X32 SC

430x250x43

SC/LC/FC

FSM-164/SC

1&1X64 SC

430x250x86

SC/LC/FC

FSM-264/SC

1&2X64 SC

430x250x86

SC/LC/FC







Package information



Model

Inner pack/mm

Inner pack weight/kg

Carton size

/mm

Carton weight/kg

Carton qty/pcs

FSM-1U

465*285*75

2.6

485*425*305

14.2

5

FSM-2U

465*285*125

3.8

675*485*305

21.0

5



Accessory

  1. Wall mount screws
  2. Adapter screws
  3. Buffer tube
  4. SleeveRack Mount 19" 1 * 32 Fiber Optic PLC Splitter , Planar Lightwave Circuit Splitter 0
