Fiber Optic Termination Box
Created with Pixso. CATV FTTH FAT IP30 2 Port Fiber Termination Box Wall Mount

CATV FTTH FAT IP30 2 Port Fiber Termination Box Wall Mount

Brand Name: YINGDA
Model Number: FTB102H
MOQ: 500 PCS
Price: 0.18USD-4.29USD
Delivery Time: 5-8 working days
Payment Terms: T/T,Western Union, MoneyGram, L/C
Detail Information
Place of Origin:
china
Certification:
ISO
Capacity:
2 Single Fibers
Cable Ports:
4 Pcs
Dimension:
83.4*130*24.1 Mm
Cable Diameter:
2.0*3.0mm Drop Cable Or Indoor Cable
Material:
High Strength Plastic PC+ABS
Color:
White Or Gray
Application:
Fiber To The Home FTTH Or Indoor Use
Outports:
2pcs SC Coupler
Special:
Un-cut Cable Go Through The Box
Packaging Details:
1 pc per box, 200 pcs per carton shipping box
Supply Ability:
50000pcs/month
Highlight:

IP30 2 Port Fiber Termination Box

,

CATV 2 Port Fiber Termination Box

,

IP30 Fiber Termination Box Wall Mount

Product Description

CATV FTTH FAT IP30 2 Port Fiber Termination Box Wall Mount

FTTH FAT 2 Ports Fiber Terminal Termination Box Wall Outlet SC Flame retardant White ABS


This fiber access terminal is 2cores, ftth mini wall outlet, it  mainly used wall mounted or desktop in ftth network, The interface is SC adapters, UPC or APC is ok, it is good choice for CATV, CCTV or GPON networks too.


Features

  • With protection doors dustproof, IP30 dustproof,indoor use
  • Suitable for many types of modules, used in cabling network area subsystem
  • Embedded type surface, easy for installation and removal
  • SC simplex or LC duplex coupler surface mounted installation and concealed panel installation
  • All modules are solderless mode


Technical specification


ItemParameters
Cable used2.0*3.0mm drop cable or indoor cable
Fiber cladding diameter125um (G652 or G657)
Fiber diameter250um or 900um
Fiber modeSingle mode and multimode
Tensile strength>50N
Operating temperature-40~+85°C
AdapterSC&LC
Insertion loss≤0.2dB (1310&1550nm)
Fiber count2cores




Product Overview
CATV FTTH FAT IP30 2 Port Fiber Termination Box Wall Mount 0
Product Details

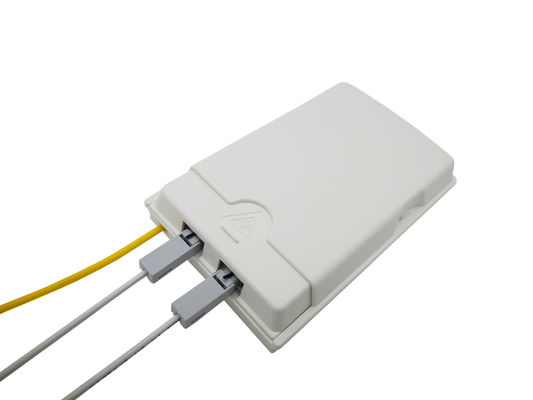

CATV FTTH FAT IP30 2 Port Fiber Termination Box Wall Mount 1
There is enough space on the cover for logo print for OEM request, we can do silkprint or laser print.  Also have a laser mark on the adatper cover for reminding.

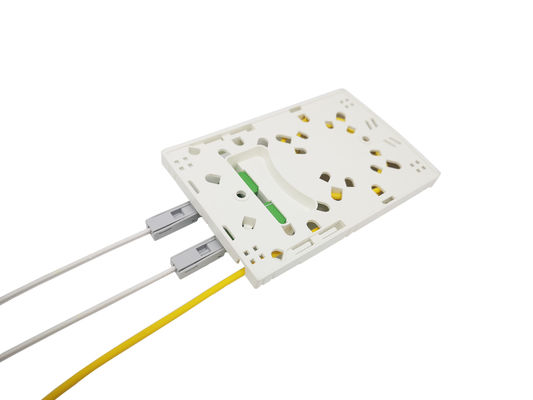

CATV FTTH FAT IP30 2 Port Fiber Termination Box Wall Mount 2

The box can be wall mounted by screws through the 2holes on the back of the box, which will be in accessory bag when delivery.

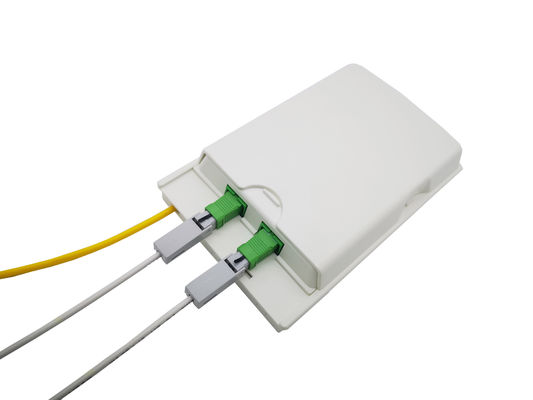

CATV FTTH FAT IP30 2 Port Fiber Termination Box Wall Mount 3
The adapter cover can be pull in and out by hand for better inistallation, which is unique design.

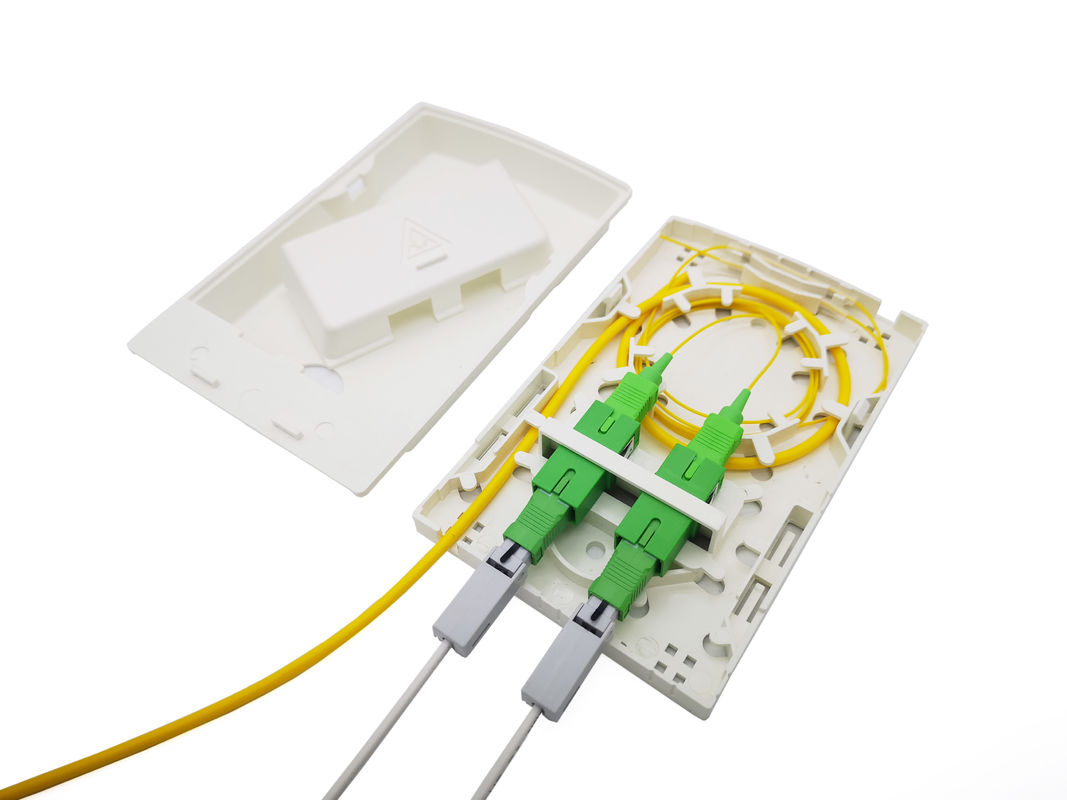

CATV FTTH FAT IP30 2 Port Fiber Termination Box Wall Mount 4
There is 2SC adapter holder inside, which can use adapter with flange or without,both ok. After the adapter is fixed, not easy to take it off, which make it stable and long life span.

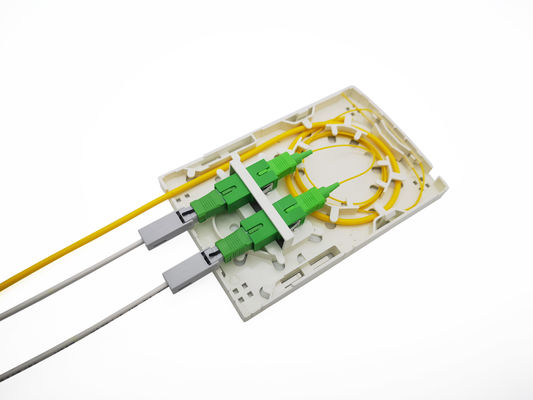

CATV FTTH FAT IP30 2 Port Fiber Termination Box Wall Mount 5

There is 2pcs heat shrink sleeve slots for fiber fusion splice, no need to worry about how to fix.



Application

  1. Optical fiber communication system
  2. Fiber optic CATV, FTTH fiber to the home
  3. Optical fiber access network
  4. Testing instruments, fiber optical sensors
  5. Fiber optic patch panels, cabinet type or wall-mounted type fiber optic distribution units


Wall mount installation

drill 2 holes over the wall based on the size in table 1, place the expansion boltφ5.5*30, place the
box to match up the holes and use bolt to fasten.
