2SC Port Fiber Optic Termination Box for FTTH PON Plastic Optical Rosette Caja Terminal

2SC Port Fiber Optic Termination Box for FTTH PON Plastic Optical Rosette Caja Terminal

  • High Light

    fiber optic terminal box

    ,

    fiber optic junction box

  • Max Capacity
    2 Cores
  • Outport
    2SC Adapter Port Or Drop Cable 2*5mm
  • Material
    Plastic ABS + PC
  • Color
    White Org Ray
  • Applicable
    FTTH Drop Cable, Indoor Cable, Round Cable
  • Size
    105*82*21mm
  • Adapter
    SC Simplex X 2pcs
  • Structure
    Inner Clip Design With Cover
  • Fiber Mode
    Single Mode, Multimode
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO,SGS
  • Model Number
    FTB86M
  • Minimum Order Quantity
    100 PCS
  • Packaging Details
    92 pcs per carton box
  • Delivery Time
    5-8days
  • Payment Terms
    Western Union, MoneyGram, T/T

2SC Port Fiber Optic Termination Box for FTTH PON Plastic Optical Rosette Caja Terminal

2SC Port Fiber Optic Termination Box for FTTH PON Plastic Optical Rosette Caja Terminal



The internal customer outlet box is designed for use inside the home in fiber optic FTTH network.

The box is designed to hold 2 x SC Simplex or 2 x LC duplex adapters.



Features

  1. Multi cable entry points
  2. Integrated heatshrink splice holder
  3. Holds up to 4 single fibres
  4. used with flangeless adapters
  5. Fixing screws included
  6. 2 x heat shrink splice protectors included
  7. Integrated fibre management



Applications

  1. FTTH (fiber to home)
  2. Optical Communication
  3. CATV NETWORK
  4. Wall mounted

Specifications



Model FTB86F
Maximum Single Fibre Count 4fibers
Maximum Number of heat splice 4fibers
Number of outlets 2pcs
Number of cable entre points 3
Dimension(H*W*D) 105*82*21mm
Net Weight 83g
Color White
Material ABS
RoHS Compliant Yes
Description in accordance with TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1



More product pictures:

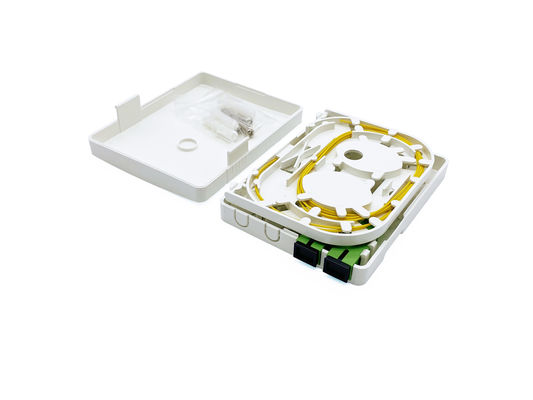

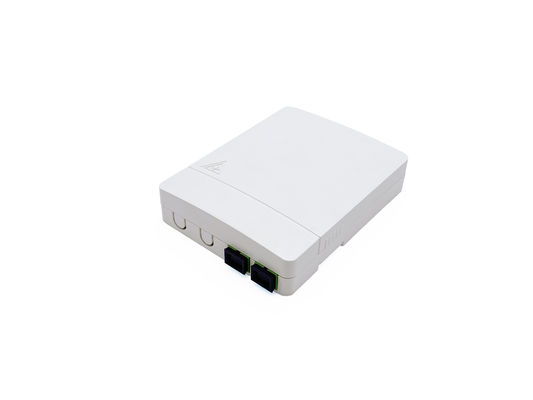

2SC Port Fiber Optic Termination Box for FTTH PON Plastic Optical Rosette Caja Terminal 02SC Port Fiber Optic Termination Box for FTTH PON Plastic Optical Rosette Caja Terminal 1

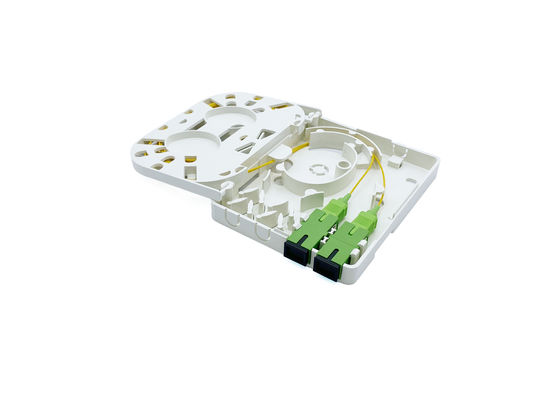

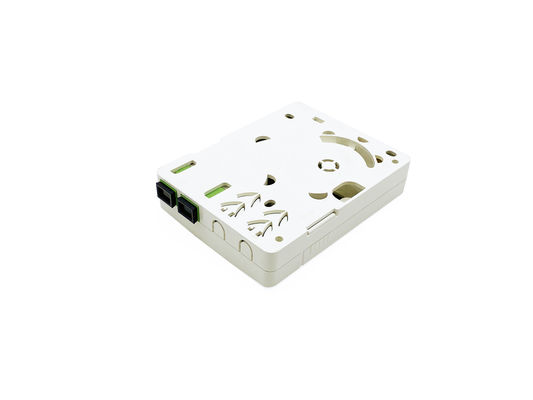

2SC Port Fiber Optic Termination Box for FTTH PON Plastic Optical Rosette Caja Terminal 22SC Port Fiber Optic Termination Box for FTTH PON Plastic Optical Rosette Caja Terminal 3





Order information



Model No. Adaptor Pigtail Capacity(Core)
FTB86F-1 Unload unload 1/2
FTB86F-1/SC/U/S 1x SC/UPC SX 1x SC/UPC SX 0.9mm 1
FTB86F-1/SC/A/S 1x SC/APC SX 1x SC/APC SX 0.9mm 1
FTB86F-1/LC/U/D 1x LC/UPC DX 2x LC/UPC SX 0.9mm 2
FTB86F-1/LC/A/D 1x LC/APC DX 2x LC/APC SX 0.9mm 2
FTB86F-2 - - 2/4
FTB86F-2/SC/U/S 1x SC/UPC DX 2x SC/UPC SX 0.9mm 2
FTB86F-2/SC/A/S 1x SC/APC DX 2x SC/APC SX 0.9mm 2
FTB86F-2/LC/U/D 1x LC/UPC QD 4x LC/UPC SX 0.9mm 4
FTB86F-2/LC/A/D 1x LC/UPC QD 4x LC/APC SX 0.9mm 4





YINGDA Produce all kinds of FTTH terminal box, socket panel, wall outlet for Fiber to the home network,

capacity 1 fibers, 2 fibers, 4 fibers all available. If you have inquiry, pls don't forget to send inquiry or questions. Thanks.
