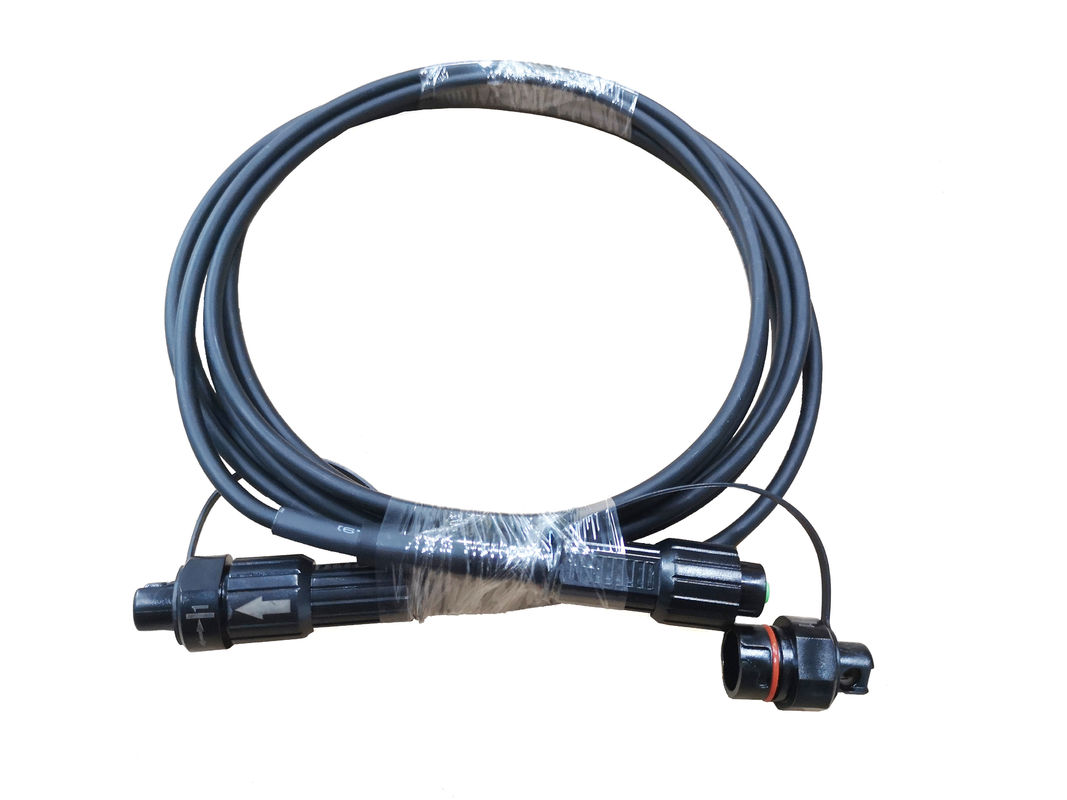

FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black

FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black

Products - Fiber Optic Patch Cord
  • High Light

    fiber optic patch cable

    ,

    fiber optic jumper

  • Application
    FTTA Outdoor Wiring
  • Connector
    SC / APC
  • Fiber Count
    1 Core
  • Fiber Type
    G.657A2
  • Cable Sheath
    LSZH
  • Cable Length
    3 Meters
  • Cable Color
    Black
  • Insertion Loss
    < 0.3dB
  • Cable Strength Member
    Aramid Yarn
  • Cable Diameter
    5.0mm Double Sheath Cable
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS,ROHS
  • Model Number
    YDPC-MSA-MSA-50LSB-A201-003
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1 piece / bag

FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black

  • FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black
  • FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black
  • FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black
  • FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black
  • FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black
Get Price Contact Now

FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black

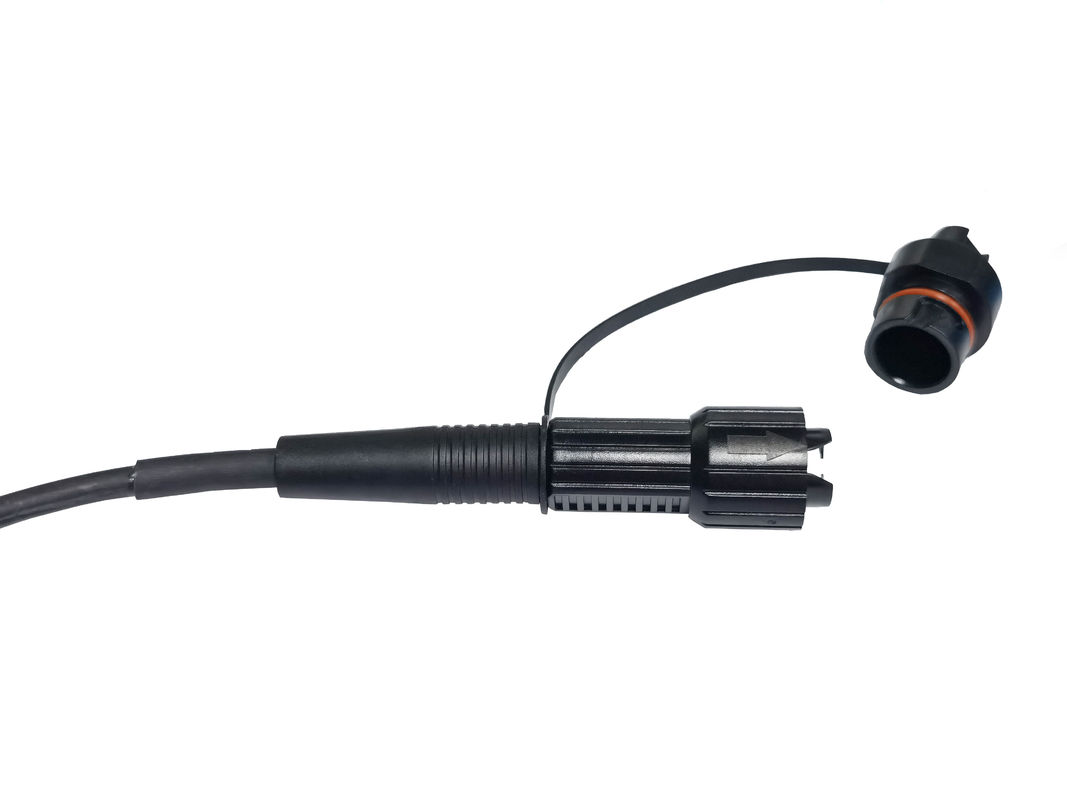

Mini SC waterproof reinforced connector has SC houseless core, spiral bayonet and multilayer rubber cushion. The special plastic shell is resistant to high ad low temperature, acid and alkali corrosion resistance, anti-UV. Its sealing waterproof performance can up to be IP67. The unique screw mount design is compatible with the fiber optic waterproof ports of Huawei equipment ports. It is suitable for 3.0-5.0mm single-core round cable or FTTH fiber access cable.


FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black 0
Features

  • Spiral clamping mechanism ensures long-term reliable connection
  • Guide mechanism, can be blinded with one hand, simple and quick, connect and install
  • Seal design: It is waterproof, dust-proof, anti-corrosion, anti-UV, etc
  • High quality plastic material, compact size, easy to operate
  • Through the wall seal design, with unique black dust cap
  • No need fusion, then can connect directly to achieve interconnection
  • IP67 waterproof indoor or outdoor use

FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black 1

FTTA 5mm Cable structure
This specifications covers the optical fiber cable for laying in outdoor installation. The optical fiber meets the requirements of ETISALAT.
FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black 2
Cable parameter

ItemValue
Fiber count1 core
Tight bufferDiameter850±50um
MaterialPVC
ColorWhite
Sub-unitDiameter2.9±0.1mm
MaterialLSZH
ColorWhite
Outer sheathDiameter5.0±0.2mm
MaterialLSZH/TPU/HDPE
Colorblack
Strength memberDouble Aramid Yarn


Connector parameter

FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black 3

Fiber typeUnitSMMM
UPCAPCUPC
ODmm2.0*5.0
Insertion lossdB≤0.20≤0.30≤0.20≤0.40
Return lossdB≥45≥50≥40≥50
Wavelengthnm1310/1550nm850/1300nm
Mating timestimes≥1000



INDIVIDUAL PACAKGE
FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black 4

FTTA Huawei Compatible Mini SC Reinforced Connector pre-terminated with remote cable 5.0mm SM G.657A2 LSZH 100Mts Black 5

Application

  • FTTH wiring project
  • Fiber optic communication in harsh outdoor environments
  • Outdoor communication equipment connection
  • Compatible with Huawei waterproof fiber equipment SC port
  • Remote wireless base station


Order Information ---YDPC-A-B-ESR-TC-L

NameConnector 1 at one side (A)Connector 2 at the other side (B)Cable type (E)Cable sheath(S)Cable color(R)Fiber type (T)Fiber count (C)Length (L)

Yingda=YD
PC=patch cord
PG=pigtail

MSC=Huawei Mini SC/UPC
MSA=Huawei Mini SC/APC
SSC=Supertap SC/UPC
SSA=Supertap SC/APC
SU=SC/UPC
SA=SC/APC
...

MSC=Huawei Mini SC/UPC
MSA=Huawei Mini SC/APC
SSC=Supertap SC/UPC
SSA=Supertap SC/APC
SU=SC/UPC
SA=SC/APC


23=2.0.*3.0mm flat cable
25=2.0*5.0mm flat cable
47=4.0*7.0mm flat cable
50=5.0mm round cable
30=3.0mm round cable
20=2.0mm round cable
...

LS=LSZH
PE=HDPE

G=gray
White=W
Black=B

2D=SM G.652.D
A1=SM G.657.A1
A2=SM G.657.A2
...

01=1core=simplex
02=2core=duplex
04=4core
...

001=1m
002=2m
...
100=100m
...

Example:
YDPC-MSA-SA-25LSR-A101-050
Pre-terminated patch cord with drop cable 2.0*5.0mm SM 6.657A1 LSZH 40meter Huawei compatible Mini SC/APC - SC/APC grey

NOTE: all connector is compatible with Huawei/Optitap/Hoptic/H connector, not original, please kindly note.


Yingda is manufacturer and trading combo,  welcome OEM/ODM
conact us at :
sales@yingdapc.com
whatsapp:+86 18688982406
