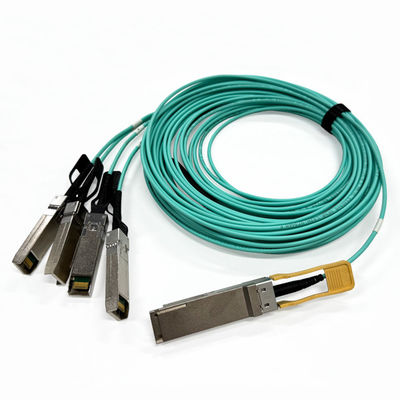

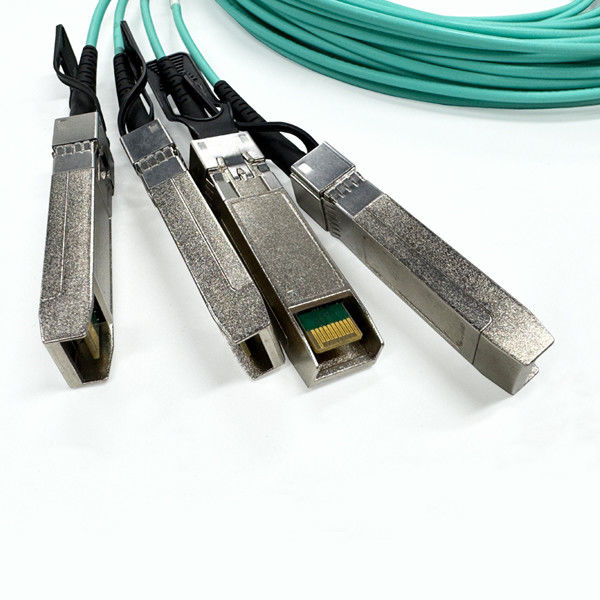

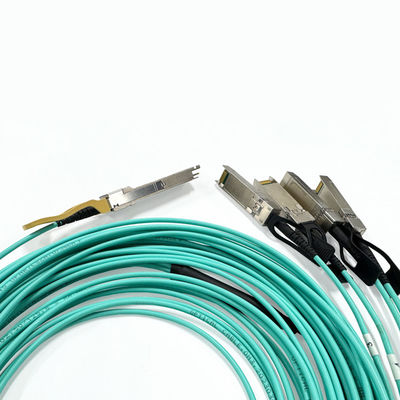

High Quality 100G QSFP28 OM3 Active Optical Cable AOC Cable Optical Transceiver Used For Network

MOQ: 1
Price: 1-20 USD
Delivery Period: 3-5 working days
Payment Method: D/A,D/P,T/T
Supply Capacity: 1000000per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
CE,ISO
Model Number
QSFP28-100G-AOC5M
Data Rate:
100Gbps
Length:
0.5-100meters Customized
Hot Pluggable:
Yes
Applications:
FTTH FTTB FTTX Network
Connector:
QSFP28 To SFP28
Operating Temperature:
0°C To 70°C
Cable Type:
Active Optical Cable
Compliance Standards:
RoHS/CE/FCC
Product Type:
Fiber Optic Transceivers
Type:
QSFP28-100G-AOC5M
Data Transfer Rate:
40Gbps
Distance:
1m 2m 3m 5m 7m Up To 300m
Temp:
0~70
Highlight:

100G QSFP28 OM3 Active Optical Cable

,

100G QSFP28 AOC Cable

Product Description

Description

QSFP28-4SFP28-AOC active optical cable, integrated four data channels, the total bandwidth of 100Gbps. 4 transmission channels, each channel can run at 25.3125 Gbps. QSFP + to 4x SFP + AOC cables are 100GBase QSFP + hybrid cables. One end is a QSFP + optical connector and the other end is a 4 SFP + optical connector. Transmission distance of not more than 100 meters. The fiber optic cable is a high-performance module for short-range multi-channel data communications and interconnect applications.

Technical Parameter


Product Model QSFP28- 4SFP25G-AOC
Transmission rate 100G
Transmission distance 1-100m (optional)
Packaging form QSFP28 to 4SFP28
Cable Type OM3&OM4 (optional)
Brand YINGDA
Cable material PVC environmentally friendly material
Operating temperature 0~70℃
Power less than 2.5W
Warranty 3 Year

Features


  • Hot-swappable QSFP28 and SFP28 form factors
  • 4-channel full-duplex active optical cable (including one 100G QSFP28 module and four 25G SFP28 modules)
  • 4-channel 850nm VCSEL laser array and PIN photodetector array
  • Built-in CDR circuits for receive and transmit channels
  • Compliant with QSFP28 MSA, SFP28 MSA, IEEE 802.3bm 100GBASE-SR4 Ethernet and IEEE 802.3by 25GBASE-SR Ethernet standards
  • Maximum rate up to 103.125Gbps
  • Interconnection up to 70m (OM3) or 100 (OM4) can be achieved through multimode fiber (cable length can be customized)
  • The maximum power consumption of the 100G QSFP28 module is less than 2.5W
  • Each 25G The maximum power consumption of the SFP28 module is less than 1W
  • Operating temperature: 0-70℃
  • Power supply voltage: 3.3V
  • Compliant with RoHS 6.0



Multiple Lengths Support Customization

Meet your various needs and arrange wiring reasonably for detailed customization process.

High Quality 100G QSFP28 OM3 Active Optical Cable AOC Cable Optical Transceiver Used For Network 0

Compatible Brands


Widely compatible with fiberoptic equipment from brands, such as HP,CISCO,ARISTA and HUAWEI ect.


High Quality 100G QSFP28 OM3 Active Optical Cable AOC Cable Optical Transceiver Used For Network 1


*Suitable for devices of the above brands with built-in SFP interfaces




Application


• Switch / router / HBA / SAN, NIC card

• Servers and storage devices

• Data center network

• Fiber Channel

• InfiniBand FDR/EDR

• 100Gbs Ethernet



Questions & Answers


Q : What cables lengths does YINGDA offer for 100G QSFP28 to 4x25G SFP28 Active Optical Cable ?

A: We offers 100G QSFP28 to 4x25G SFP28 Active Optical Cable in 1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m, 50m and inquiries for customized length are also welcomed.


Q: Can I get a free sample?
A: We can refund you sample cost after you make a formal order

Q: We are new in this fiber optic fields,can you help me and recommend me some items?
A: Yes,of course.it is our pleasure to help you with it. You only need to offer us more details about your application.

Q: What is your MOQ?
A: No MOQ for any sample test,at least 10pcs/models after sample order.

Q: OEM,ODM Service is available?
A: Yes,PACBTECH have strong ability to offer customers ODM&OEM products of highest quality. And it will requirement about your quantity.

Q: For Trade Terms,such as payment and leadtime.
A: Payment Terms:We mainly support T/T bank transfer,Paypal and Western Union
Price Terms:EXW,FOB Shenzhen,CIF
Shipping Methods: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,3-7work days; Bulk order 15-25work days(after your payment )
