J Hook Suspension Clamp Fiber Cable Installation Kits for ADSS Cable Round

Brand Name:	YINGDA
Model Number:	UPB
MOQ:	100pcs
Price:	0.14USD-10USD
Delivery Time:	2-5days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Dimension:

121*114*45mm

Material:

Alluminum Alloy

Breaking Load:

5KN

Fixtion Point:

3 Points

Cable Type:

OPGW, ADSS Cable

Bracket Type:

Tension Clamp

Application:

Pole Mounted

Weight:

0.2kg

Packaging Details:

30pcs/carton box

Supply Ability:

50000pcs per month

Highlight:

Round Cable Installation Kits

ADSS Cable Suspension Clamp

J Hook Suspension Clamp

Product Description

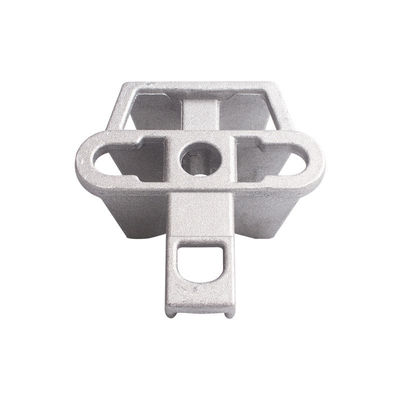

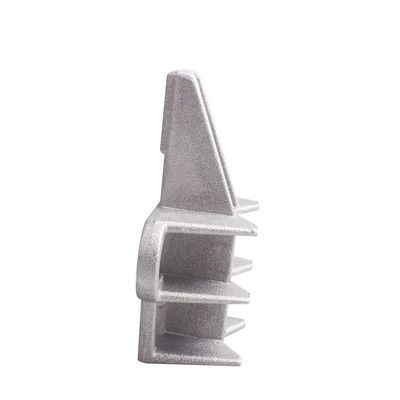

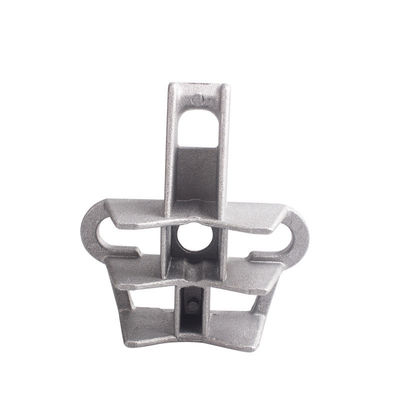

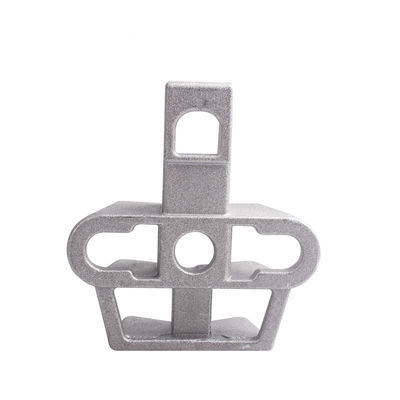

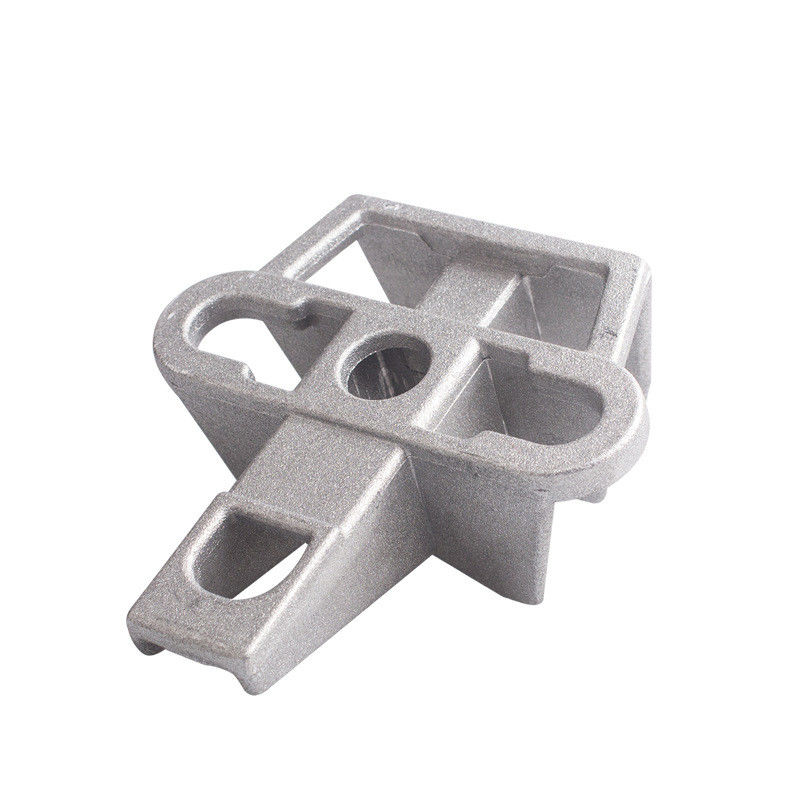

UPB bracket is manufactured from aluminum alloy, high mechanical strength and long lasting, widely used in fiber optic cable deployment system. It is used for the installation of 1 to 3 parallel cables or 5 drop wires, and good stay system on all types of poles like wooden, metal or concrete materials with 14 / 16 mm bolts or with two 20 mm bands. Meanwhile, the UPB bracket can used as a plate for the installation of cross-arms 5/14 and 5/15.

UPB Bracket Features

Easy installation and light weight;
Fixed to the pole by 2 stainless steel band (20 mm) or 1 bolts 14~16mm diameter;
Provide the principal of all in one device, by offering up to 5 clamping points;
High breaking load allows withstand a sufficient load without anchor clamp slip or break;
Material is aluminum alloy, passivized ensure high mechanical strength, long life span;
The installation can be proceed on the poles of walls, wooden, metal concrete material made, by using stainless steel band or bolts.

UPB Bracket Specification

Model	UPB
Dimension(LWD)	12111445mm
Material	Aluminum alloy
Bracket type	Tension
Application	Pole
Span	70-200 meters
Max. Breaking Load (MBL)	5KN
Net weight	200g
