UV Protected Nylon Drop Wire Clamp Cable Installation Kits For Round FO Drop Cable

MOQ: 100pcs
Price: 0.14USD-10USD
Payment Method: T/T
Supply Capacity: 50000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YINGDA
Certification
ISO,CE
Model Number
YDCC01
Model Number:
Cable Tension Clamp
Standard Or Nonstandard:
Standard
Product Name:
FTTH High Tension Flat Cable Clamp Nylon Clamps
Cable Entry:
Back/Side
Application:
Telecom Network
Color:
Black
Function:
Distribution Fiber System (FTTH)
Highlight:

Cable Installation Kits Drop Wire Clamp

,

Nylon Drop Wire Clamp

,

UV Protected Drop Wire Clamp

Product Description

Cable Installation Kits UV Protected Nylon Drop Wire Clamp for Round FO Drop Cable (2-6mm)

The drop wire clamp is composed of a mandrel shaped body and an opened bail that can be locked into the clamp body. It is made out of UV resistant nylon

Its unique design allows the dead-end of the cable without any radial pressure on the cable outer sheath and on the fibres.This provides an extra protection for the drop cable.

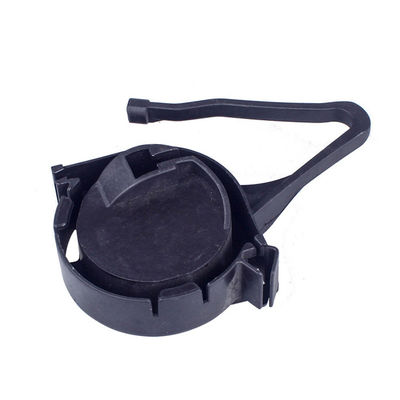

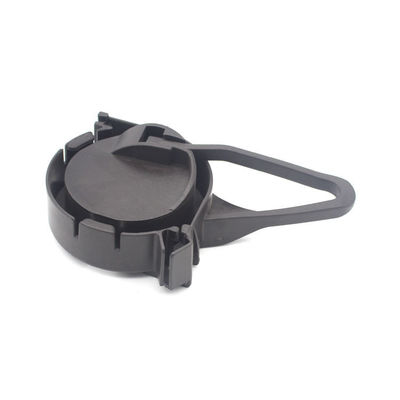

UV Protected Nylon Drop Wire Clamp Cable Installation Kits For Round FO Drop Cable 0UV Protected Nylon Drop Wire Clamp Cable Installation Kits For Round FO Drop Cable 1

Feature:

• Dead-ending of round drop cable on poles and buildings.
• Suspension of drop cable at intermediate poles by using 2 drop clamps.
• Capacity : Ø 2 to 6mm round cables.
• Min. failing load : 180 daN

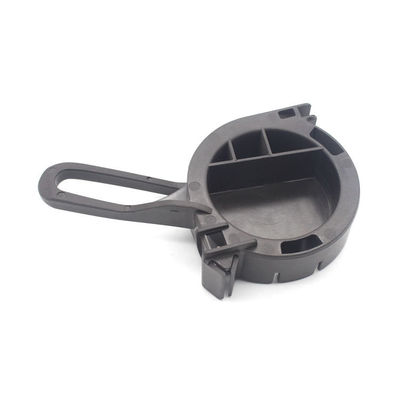

UV Protected Nylon Drop Wire Clamp Cable Installation Kits For Round FO Drop Cable 2

The Fiber clamp diameter: 140*102*24mm, compact size, more convenient to operate.

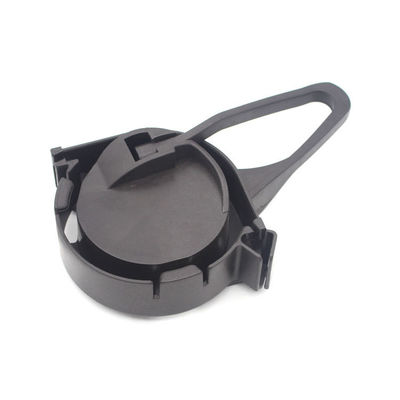

UV Protected Nylon Drop Wire Clamp Cable Installation Kits For Round FO Drop Cable 3

Suitable for cable:

Flat cable 2.0*3.0mm, 2.0*5.0mm

Round cable: 2-6mm


Specification:

Code Description Material KN Weight
YDCC01 Drop wire clamp for
round FO drop cable		 UV protected
thermoplastic		 1 0.06kg



Application:

Applied outdoor,for installation on the telecommunication supports,between the buildings and industrial constructions to fix and protect optical cables.

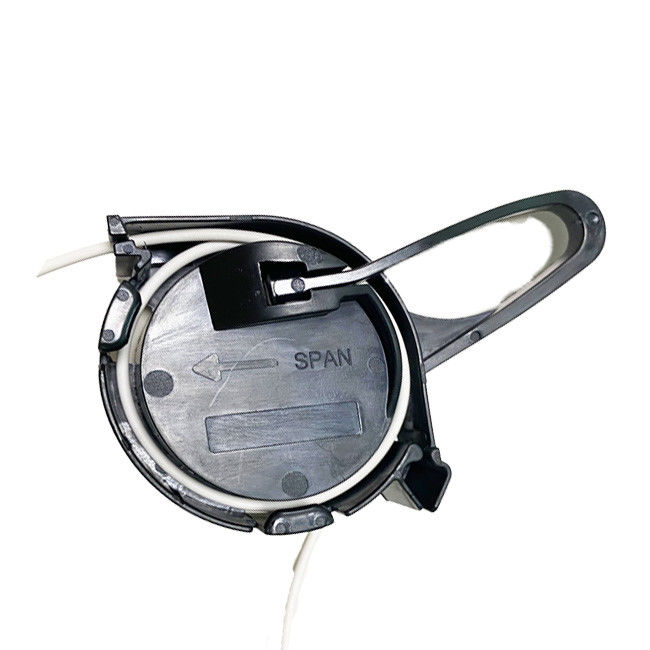

UV Protected Nylon Drop Wire Clamp Cable Installation Kits For Round FO Drop Cable 4

UV Protected Nylon Drop Wire Clamp Cable Installation Kits For Round FO Drop Cable 5
