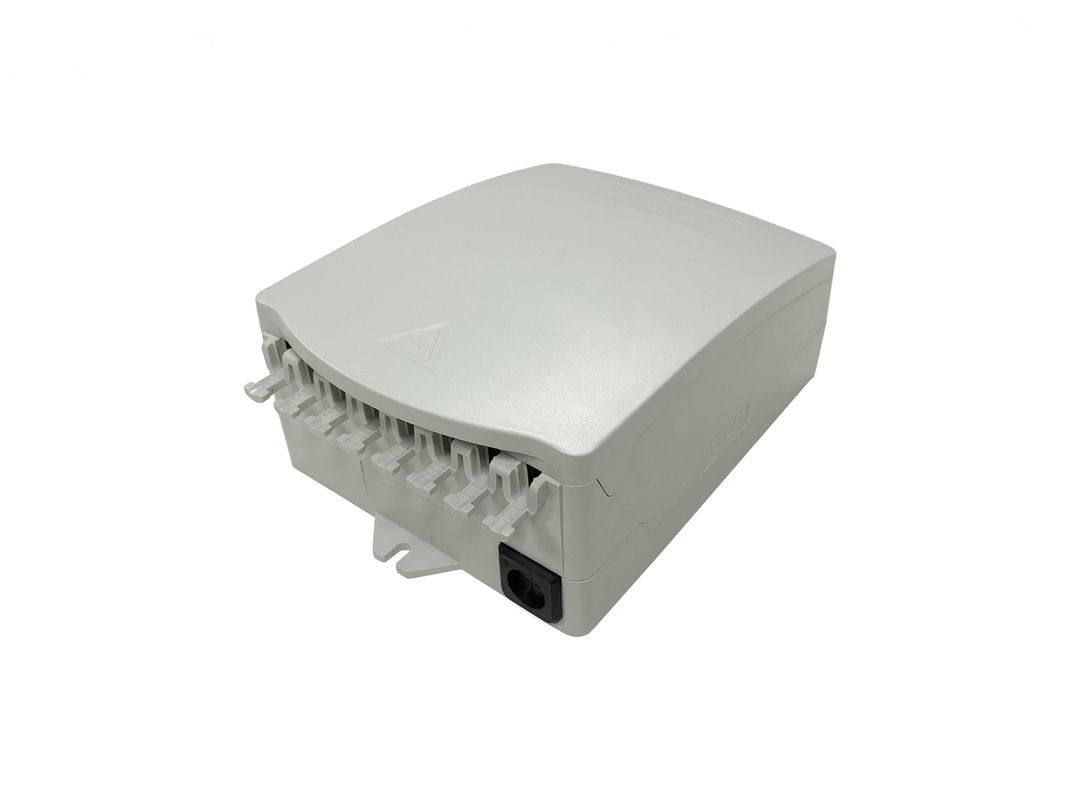

Wall Mount 8 Port FTTH Indoor NAP Box 8port Fiber Optic Terminal box for 2*5 flat drop cable

This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.

8 port Fiber Optic Splice Box Specification

Plastic Optical Fiber Enclosure Features

• Dust proof, RoHS proof with IP-55 protection level
• Integrated with 2 splice cassette and cable management rods.
• Manage fiber in a reasonable fiber radius condition
• Easy to maintain and extend the capacity
• Fiber bend radius control more than 40mm
• Suitable for the fusion splice or mechanical splice
• Three layer design, large area for efficient cable management and storage
• 8 ports exit for drop cable 2*5mm
• 2pcs 1:4 or 1pc 1:8 splitter with steel tube slots on the bottom
• Distribution cable can go through the box without cut, best choice for ftth indoor construction.

Three Layer Design

For distribution,splitting, fusion each 1 layer, enough space for storage the fiber. And fast operation and convenient to use.

For Distribution:

There are max. load with 8pcs SC SX or LC DX Fiber Coupler. and 8ports for drop cable 2*3mm abd 2*5mm.

Note: all kinds of fast connectors are available, length from 42mm to 60mm,have enough space.

For Splitting:

This is the back of the distribution plate,3slots for stainless tube: 1X2, 1X4, 1X8 mini PLC splitter

Large and reasonable winding area for splitter input and output pigtails.

For Fusion Splice:

It's Max.fusion splice 12cores dual layer, Sleeve slots 6pcs.

And it's  cable go througn design, no need cut extra main cable.

Fiber Optic Splitter Box Standard Accessory:

wall mount kits, heatshrink protection tube,nylon tie, sprial tube for 900um fibers,etc

Fiber Optic Cable Terminal Box Pack information

Uncut Optical Fiber Cable Box Installation Method; WALL MOUNT

More actual Pictures:
