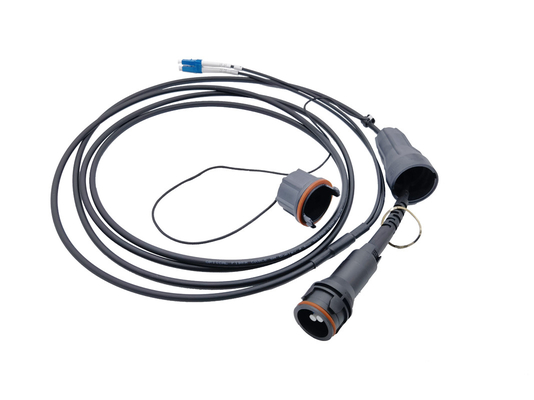

Single Mode IP67 FTTA FTTH Patch Cord LSZH 4.8mm G657A2
FTTA Waterproof IP67 Base Station FullAXS LC Duplex Cable Assembly LSZH 4.8mm G657A2 RRH
The new FullAXS connector systems were designed to function with a very large Z-axis tolerance, hence accommodating for the broadest range of transceivers on the market. This unique feature will allow end users to pick almost any transceiver they wish. Meanwhile, users can conveniently remove and replace transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box and expose its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard LC duplex interface for fast mating with all LC duplex SFP transceivers.s
With the development of distributed antenna systems (DAS), Fullaxs-LC connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.
The FullAXS connector can be designed for either single mode or multi-mode optical transmission applications. Use the cable assembly firmly establish themselves through the bulkhead is directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application.
Connector Parameter
| Fiber type | Single mode | Multi-mode |
| Insertion loss | <0.3dB | <0.5dB |
| Return loss | UPC>50dB, APC>60dB | >30dB |
| 1st connector | LC duplex | |
| 2nd connector | LC duplex uni-boot | |
| Fiber count | 2cores | |
| Cable diameter | 0.19”(4.8mm±0.2mm diameter) | |
| Cable material | LSZH | |
| Cable color | Black | |
| Fiber color | Blue orange |
|
FEATURES
APPLICATIONS
Mechanical specifications
| Parameter | Standard | Parameter | Standard |
| 150N pull force | IEC61300-2-4 | Temperature | 40°C – +85°C |
| Vibration | GR3115 (3.26.3) | Cycles | 50 Mating Cycles |
| Salt Mist | IEC 61300-2-26 | Protection Class/Rating | IP67 |
| Vibration | IEC 61300-2-1 | Mechanical Retention | 150 N cable retention |
| Shock | IEC 61300-2-9 | Interface | LC interface |
| Impact | IEC 61300-2-12 | Adapter Footprint | 36 mm x 36 mm |
| Temperature / Humidity | IEC 61300-2-22 | Duplex LC Interconnect | MM or SM |
| Locking Style | Bayonet style | Tools | No tools required |
Cable parameter
| Fiber count | 2 | |
| Tight buffer fiber | Dimension | 800±50μm |
| Material | LSZH | |
| Color | Blue, Orange | |
| Outer jacket | Dimension | 4.8±0.2mm |
| Material | LSZH | |
| Color | Black | |
Order information - YDPC-A-B-FCFT-CL
| YDPC | - | Connector A | - | Connector B | - | Fiber count =FC | Fiber type =FT | - | Cable length =CL |
|
YD=yingda PC=patch cord |
F(LCU)=FullAXS(LC/UPC) F(LCA)=FullAXS(LC/APC) F(MPO)=FullAXS(MPO) LCU=LC/UPC LCA=LC/APC MPO=MPO/MTP ... Xxx=NULL |
F(LCU)=FullAXS(LC/UPC) F(LCA)=FullAXS(LC/APC) F(MPO)=FullAXS(MPO) LCU=LC/UPC LCA=LC/APC MPO=MPO/MTP ... Xxx=NULL |
01=1core 02=2core 08=8core 12=12core ...
|
2D=G652D A1=G657A1 A2=G657A2 M1=OM1 M2=OM2 M3=OM3 M4=OM4 M5=OM5 ... |
001=1meter 002=2meter ... 010=10meter ... 120=120meter ...
|
For example:
FullAXS -LC/UPC duplex cable assembly 10meter G657A1 LSZH black
Part no.: YDPC-F(LCU)-LCU-02A1-010
key word: fullaxs patch cord, fullaxs lc, fullaxs
