Outdoor IP67 Fiber Optic Patch Cord Black LSZH SC APC Mini IP RRH Base Station

Place of Origin CHINA
Brand Name YINGDA
Certification ISO,SGS,ROHS
Model Number YDPC-SSA-SSA-25LSB-A201-003
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details 1 piece / bag
Product Details
Application FTTH Outdoor Wiring Connector SC / APC
Fiber Count 1 Core Fiber Type G.657A2
Cable Sheath LSZH Cable Length 3meter
Cable Color Black Insertion Loss < 0.3dB
Cable Strength Member Aramid Yarn Cable Diameter 2.0*5.0mm Ftth Drop Cable
High Light

IP67 Fiber Optic Patch Cord

,

LSZH Fiber Optic Patch Cord

,

LSZH fiber optic cable patch cord

Leave a Message
Product Description

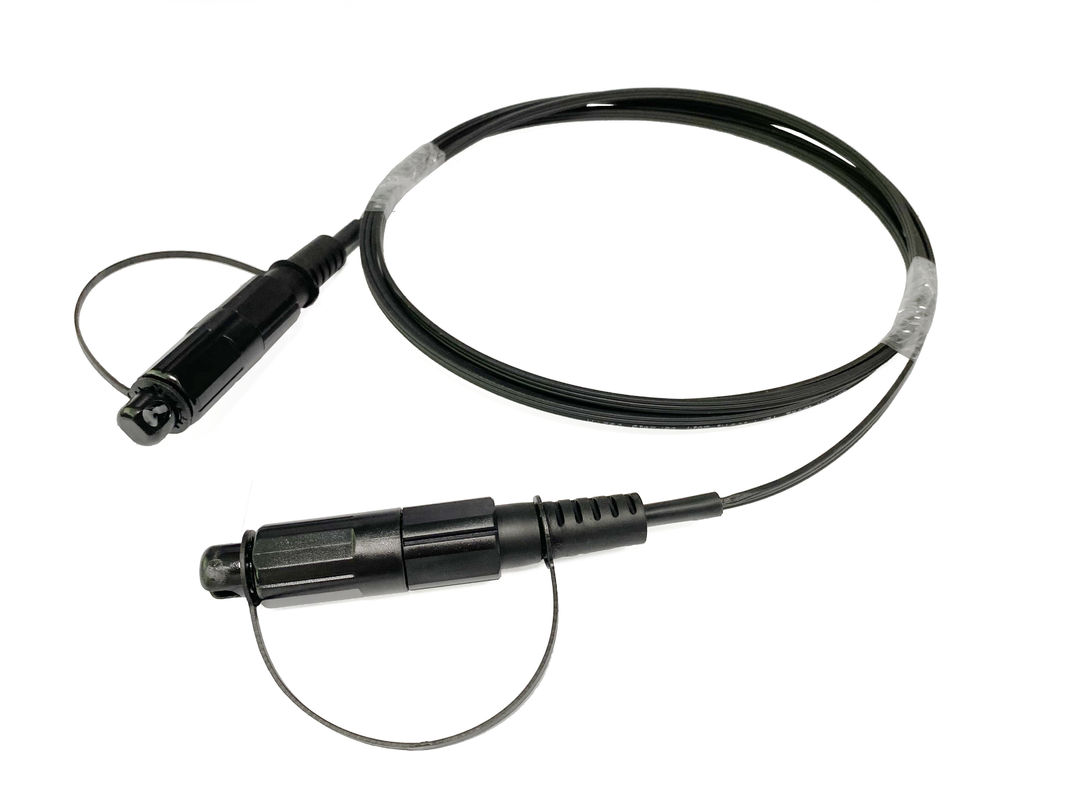

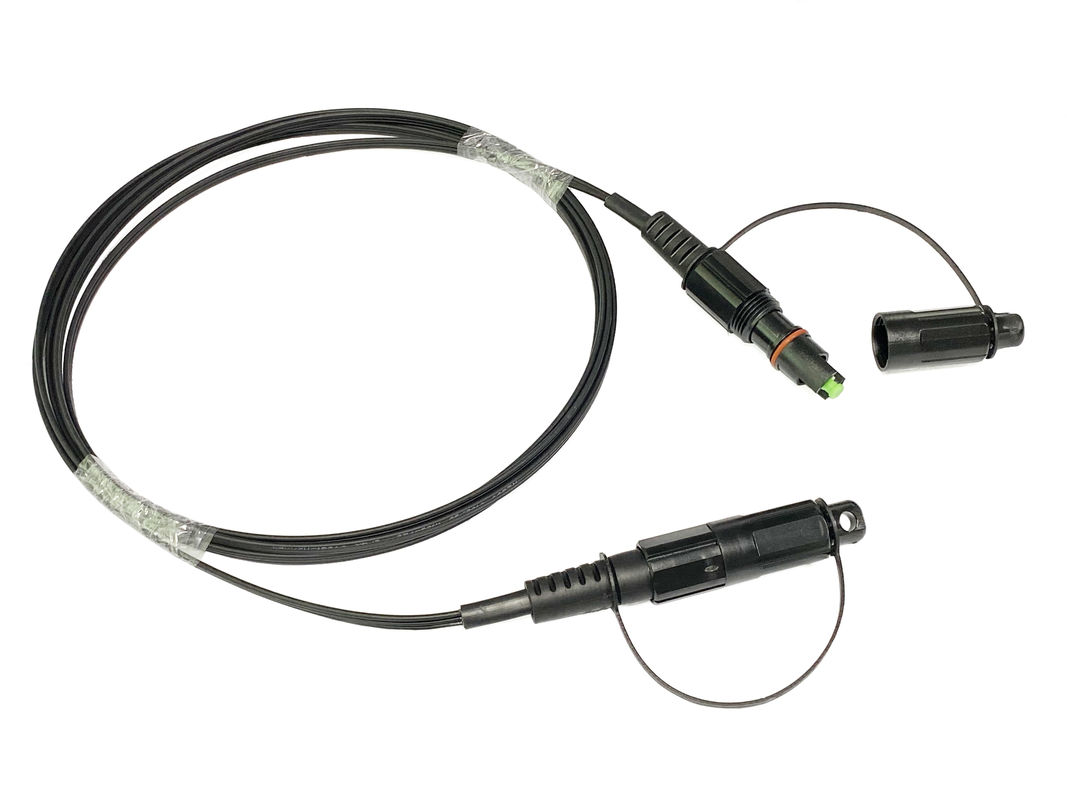

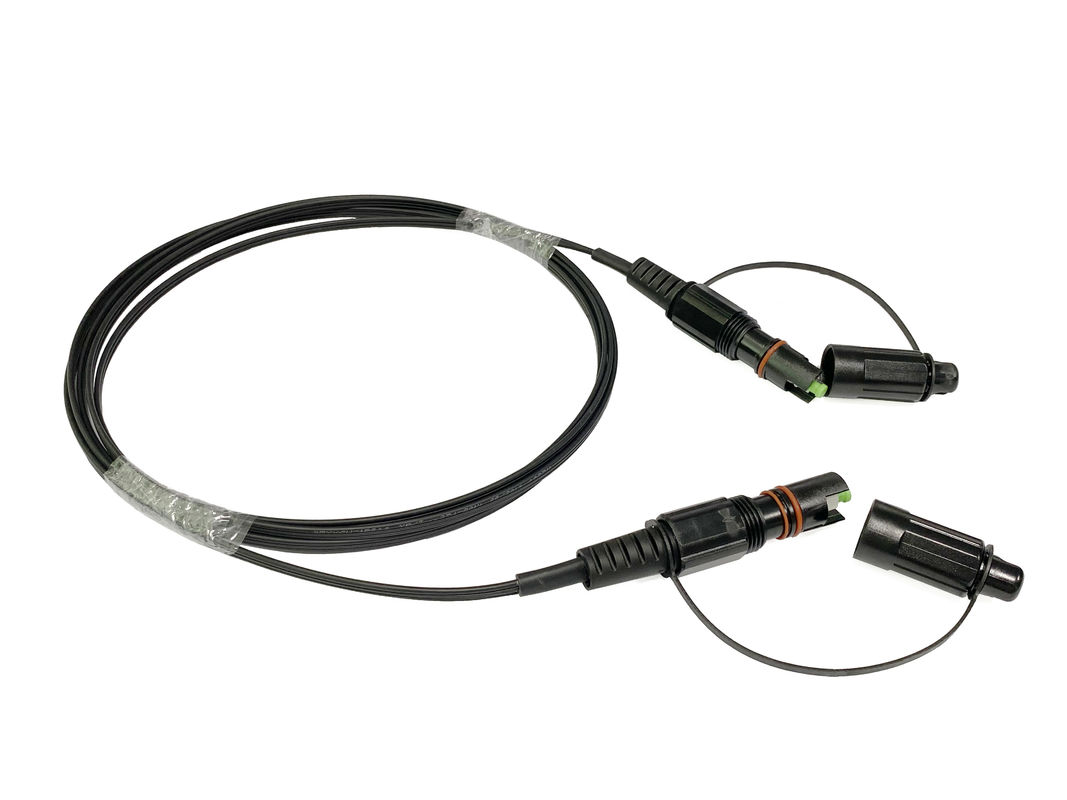

Outdoor IP67 Fiber Optic Patch Cord Black LSZH SC APC Mini IP RRH Base Station



Outdoor IP67 FTTH Optic Fiber Drop Cable Jumper Black LSZH SC APC Mini IP RRH Base Station

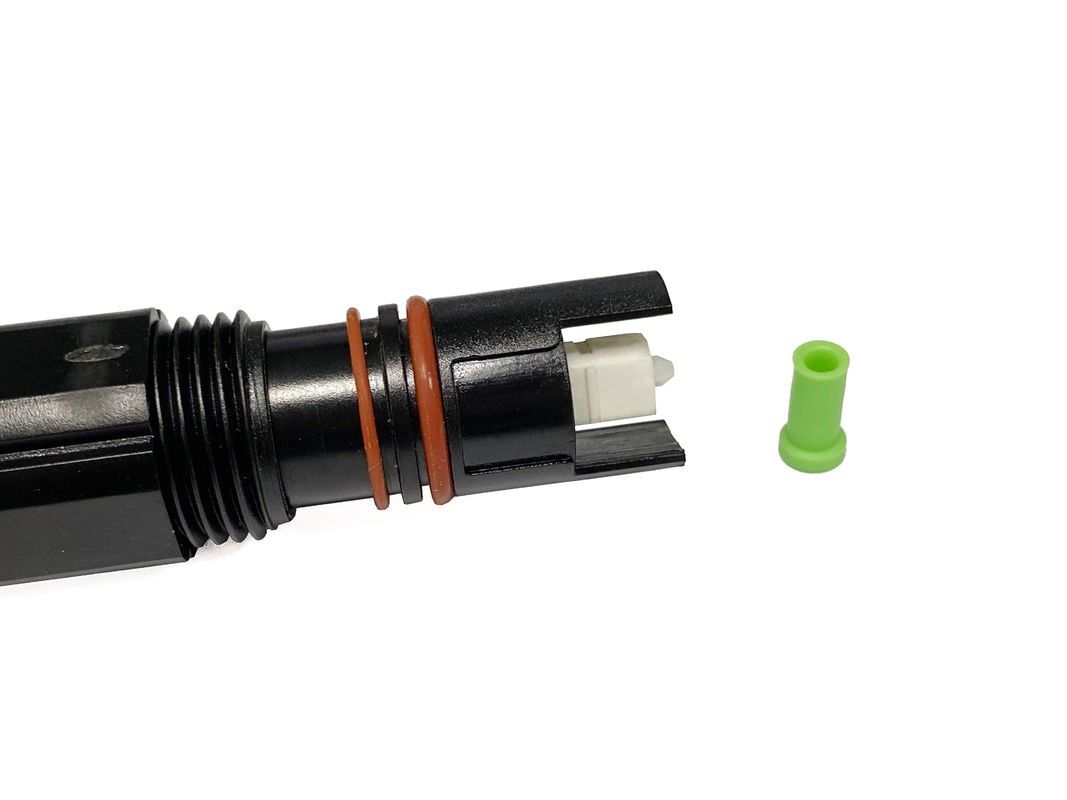

Yingda Supertap SC/APC fiber optic waterproof connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

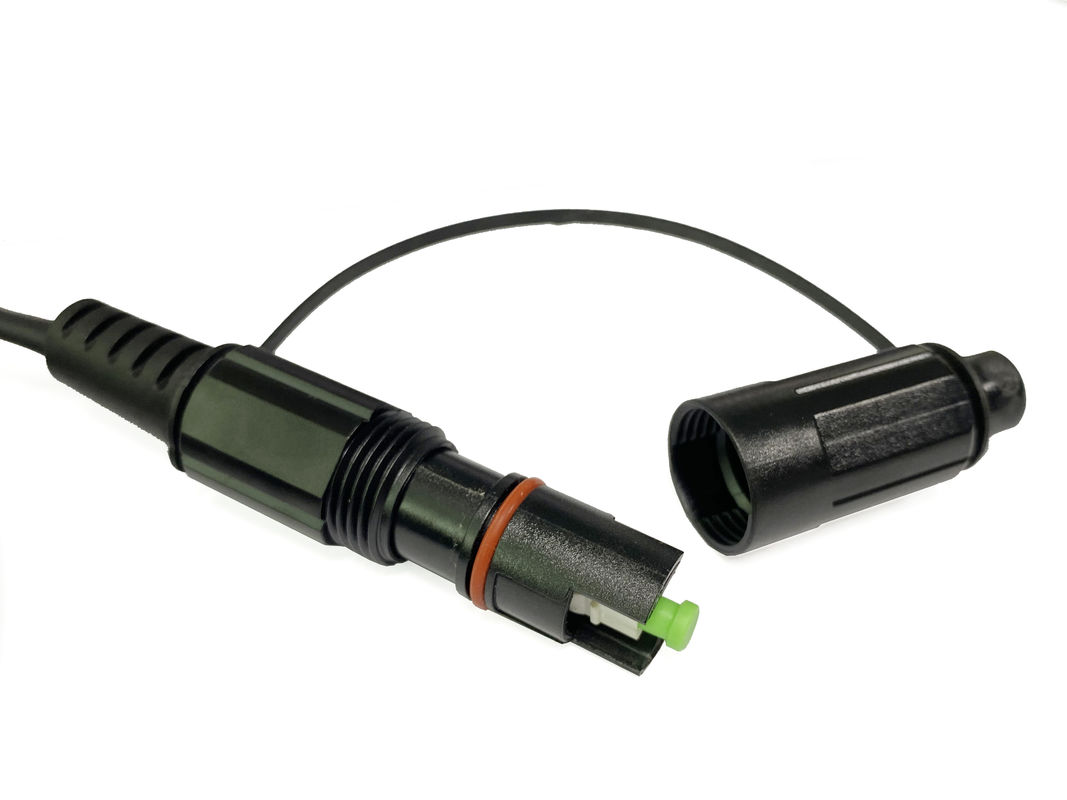

The Supertap connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either the AMT or in-line extension receptacle.

The SC/APC connectors mate to a standard adapter providing a common interface for FTTx applications. Available with flat drop or traditional round style OSP cables, the Supertap connectors provided an idea solution for direct burial, conduit or aerial installations.
Outdoor IP67 Fiber Optic Patch Cord Black LSZH SC APC Mini IP RRH Base Station 0

Cable structure
Outdoor IP67 Fiber Optic Patch Cord Black LSZH SC APC Mini IP RRH Base Station 1
Cable parameter

Model no. GJYXCH FTTH drop cable
Fiber count 1 Core
Cable Diameter 5.0*2.0mm
Cable Weight 18.5 kg/km
Strength member 2*OD:0.5mm FRP/Steel wire
Outer Sheath material LSZH
Sheath marking Laser printing @1m distance
Messenger OD:1.0mm Steel wire
Fiber Color red
Cable color Gray, white, black
Installation Temperature -20--+60℃
Operation and transport temperature -40-+70℃
Min Bending Radius(mm) Long term:10D, short term:20D
Allowable Tensile Strength(N) Long term:300 short term:600
Crush Load (N/100mm) Long term:1100 short term:2200


Features

  • Factory terminated, individual package with plastic bag or film, suitable for o n-site construction
  • Single fiber, SC- based connector, small size, standard style, compatible with corning Opti-Tap, Amphenol H connectors
  • Low profile in-line receptacle available,high precise design
  • Threaded coupling style, no installation tools required
  • Cost effective solution for in house termination.

  • Low insertion loss and added loss.

  • IP67 water, dust proof and corrosion resistant

  • The material in the jumpel cable are all-weather and UV-resistant.

  • Mechanical performance: IEC 61754-4 standard.

  • RoHS and REACH materials compliant.

Outdoor IP67 Fiber Optic Patch Cord Black LSZH SC APC Mini IP RRH Base Station 2Outdoor IP67 Fiber Optic Patch Cord Black LSZH SC APC Mini IP RRH Base Station 3
Application

  1. Outdoor harsh environment multi-purpose
  2. For connection between distribution box and RRH
  3. Deployment in Remote Radio Head cell tower applications


Outdoor IP67 Fiber Optic Patch Cord Black LSZH SC APC Mini IP RRH Base Station 4
Connector Specifications

Ingress protection (mated) IP68
Mating durability 50cycles
Pull force retention 100lbs(445N)
Operating temperature -40°C to +75°C
Insertion loss ≤0.3dB
Return loss ≤-55dB UPC, -65dB APC


Order Information ---YDPC-A-B-ESR-TC-L

Name Connector 1 at one side (A) Connector 2 at the other side (B) Cable type (E) Cable sheath(S) Cable color(R) Fiber type (T) Fiber count (C) Length (L)

Yingda=YD
PC=patch cord
PG=pigtail

MSC=Huawei Mini SC/UPC
MSA=Huawei Mini SC/APC
SSC=Supertap SC/UPC
SSA=Supertap SC/APC
SU=SC/UPC
SA=SC/APC
000=null
...

MSC=Huawei Mini SC/UPC
MSA=Huawei Mini SC/APC
SSC=Supertap SC/UPC
SSA=Supertap SC/APC
SU=SC/UPC
SA=SC/APC
000=null
...

23=2.0.*3.0mm flat cable
25=2.0*5.0mm flat cable
47=4.0*7.0mm flat cable
50=5.0mm round cable
30=3.0mm round cable
20=2.0mm round cable
...

LS=LSZH
PE=HDPE

G=gray
White=W
Black=B

2D=SM G.652.D
A1=SM G.657.A1
A2=SM G.657.A2
...

01=1core=simplex
02=2core=duplex
04=4core
...

001=1m
002=2m
...
100=100m
...

Example:
YDPC-MSA-SA-25LSR-A101-050
Pre-terminated patch cord with drop cable 2.0*5.0mm SM 6.657A1 LSZH 40meter Huawei compatible Mini SC/APC - SC/APC grey
NOTE: all connector is compatible with Huawei/Optitap/Hoptic/H connector, not original, please kindly note.




Yingda is manufacturer and trading combo,  welcome OEM/ODM

Outdoor IP67 Fiber Optic Patch Cord Black LSZH SC APC Mini IP RRH Base Station 5
