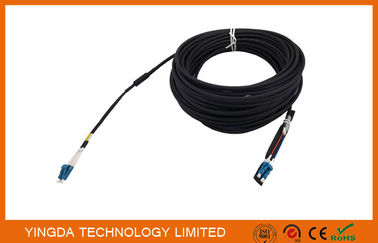

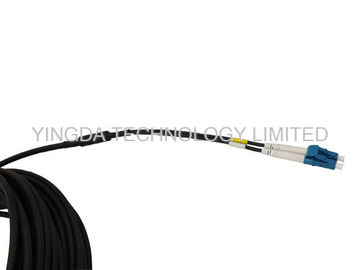

Duplex DLC LC Fiber Optic Patch Cord Leads 5.0mm 2 Core Optical Cable Assembly
  • name
  • name

Duplex DLC LC Fiber Optic Patch Cord Leads 5.0mm 2 Core Optical Cable Assembly

MOQ: 10pcs
Price: 0.36USD-30USD
Standard Packaging: 1pc/pack
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS CE ROHS
Model Number
LC duplex jumper
Application:
FTTA Outoor Waterproof
Cable:
Base Station Cable 5.0mm GYFJH
Cable Jacket:
Black LSZH
Connector:
LC/UPC
Fiber Count:
2 Fibers
Length:
On Customer Request
Logo:
OEM
Product Name:
Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord
Highlight:

fiber optic patch cable

,

fiber optic jumper

Product Description



Duplex DLC LC Fiber Optic Patch Cord Leads 5.0mm 2 Core Optical Cable Assembly





1. GYFJH Cable



Duplex DLC LC Fiber Optic Patch Cord Leads 5.0mm 2 Core Optical Cable Assembly 0



1.1 Structure:

Duplex DLC LC Fiber Optic Patch Cord Leads 5.0mm 2 Core Optical Cable Assembly 1





FTTA RRU Armored Outdoor Fiber Patch cord is used for Fiber to the Antenna, and Duplex Base Station

 Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor patch cord, built on LSZH cables with

 7.0mm or 4.8mm diameter, with water blocking aramid yarns and UV resistant black out jacket.



Features

  1. Good mechanical and environmental characteristics;
  2. Flame retardant characteristics meet the requirements of relevant standards;
  3. The mechanical characteristics of jacket meet the requirements of relevant standards;
  4. Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data
  5. transmission;
  6. Meet various requirements of market and clients;



Applications

  • BBU, RRU, RRH, LTE
  • Indoor/outdoor application
  • FTTH, FTTA application
  • Mainly used in wireless base station horizontal and vertical cabling



Connector specification



Item

Parameter

Connector

DLC/UPC

Insertion loss

≤0.3dB

Return loss

≥35dB

Fiber mode

Multi-mode,50/125um

Operating wavelength

850nm,1310nm

Test wavelength

850nm,1310nm

Repeat ability

≤0.1dB

Interchange ability

≤0.2dB

Durability

≤0.2dB

Fiber length

1m,2m.. Any length optional

Length and tolerance

10cm

Operating temperature

-40~+85°C

Storage temperature

-40~+85°C
