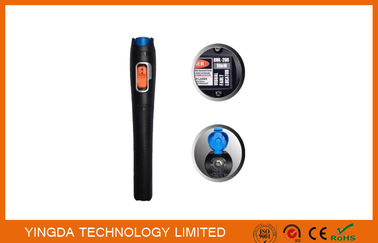

Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector

Name: Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector
Brand: YINGDA TECHNOLOGY LIMITED
SKU: BML-206
Price: 29.18 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	BML-206
MOQ:	1 piece
Price:	Negotiable
Delivery Time:	3 days

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Central Wavelength:

650nm±20nm

Output Power:

10mw, 1mw 15mw, 20mw, 25mw, 30mw Can Offer

Operating Model:

Pulsed (2Hz) And CW

Dimension:

175 *26 * 26mm

Net Weight:

50g (Without Battery)

Optical Connector:

2.5mm Or 1.25mm Universal Connector

Power Supply:

2 X AA Alkaline Batteries

Warrranty:

1 Year

Packaging Details:

1pc per box

Highlight:

fiber optic tool kits

fiber polishing film

Product Description

Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector

FEATURES:

Bright red laser at 650nm
Pulsed and CW operation
50 hours of operation(typical)
Standard AA alkaline batteries
Rugged and weatherproof design
2.5mm universal connector
One-year warranty and recommended calibration interval

SPECIFICATIONS

BML205	BML205-1	BML205-10	BML205-15	BML205-20	BML205-25	BML205-30
BML206	BML206-1	BML206-10	BML206-15	BML206-20	BML206-25	BML206-30
BML207	BML207-1	BML207-10
Output Power	> 1mW	> 10mW	> 15mW	> 20mW	>25mW	>30mW
Dynamic Distance *	> 5 km	8~10 km	12~14 km	15~17 km	18~20 km	25~30 km
Wavelength	650nm±20nm
Operation Mode	Pulsed (2Hz) and CW
Connector **	2.5mm or 1.25mm Universal connector

* The distance is tested by G.655, single mode, lab level fiber, loss<5dB/KM
** Standard connector is 2.5mm UPP, 1.25mm UPP will be customized and increase the cost

GENERAL SPECIFICATIONS

Size(HWD)	175mm 26mm 26mm
Weight	BML205/207: 80g, BML206: 50g
Storage Temperature	-20 -- +60℃ , < 90%RH
Operating Temperature	-10 -- +50℃ , < 90%RH

ACCESSORIES

BML205/207 Standard	BML206 Standard
Soft Bag*1	Packing Box*1 (Quick guide printed on box)
Quick Guide*1
Packing Box*1

Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector 0

Fiber Optical Visual Fault Locator BML-206 10mw 1mw 15mw 20mw 25mw 30mw Sc Fc Connector 2
