4port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted

Place of Origin china
Brand Name yingda
Certification ISO,CE
Model Number FRB-4D
Minimum Order Quantity 50PCS
Price contact sales for details
Packaging Details 1pc/box,20pcs/carton box
Delivery Time 1week
Payment Terms T/T, Western Union
Supply Ability 20000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PC+ABS Color White
Capacity 4 Cores SC, 8 Cores LC Pigtail Qty Max 8 Pcs
Adapter Qty 4pcs SC SX/LC DX Sample Support
OEM Support Application FTTH FTTB FTTX Network, Indoor
Mounted Type Wall Mounted,DIN Rack Mounted Size 80 X 80 X 31(mm)
Highlight

4port Fiber Termination Box

,

35mm Fiber Termination Box

,

DIN Rack Mounted Fiber Box

Leave a Message
Product Description

New products 4ports Indoor Fiber Wall Socket box DIN Rack mounted OTB With Dust-proof Cover



YINGDA product all kinds of fiber optic terminal box, splitter distribution box, socket panel and etc in plastic or metal materials, no matter indoor or outdoor use. Welcome inquiry.



FRB-4D Fiber Socket is specially designed for FTTH (Fiber to The Home) for indoor application. It is with a protective door for dust proof, and meanwhile it provides protection and management for the FTTx network building.



Sales point:

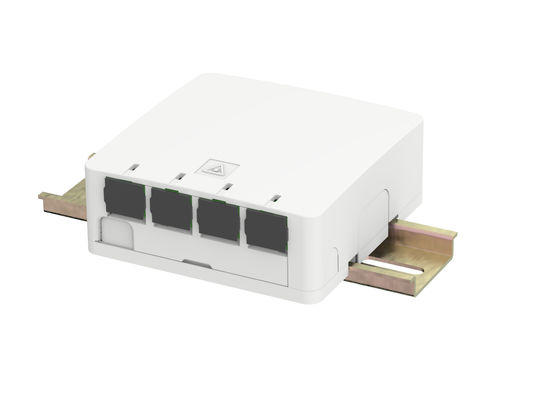

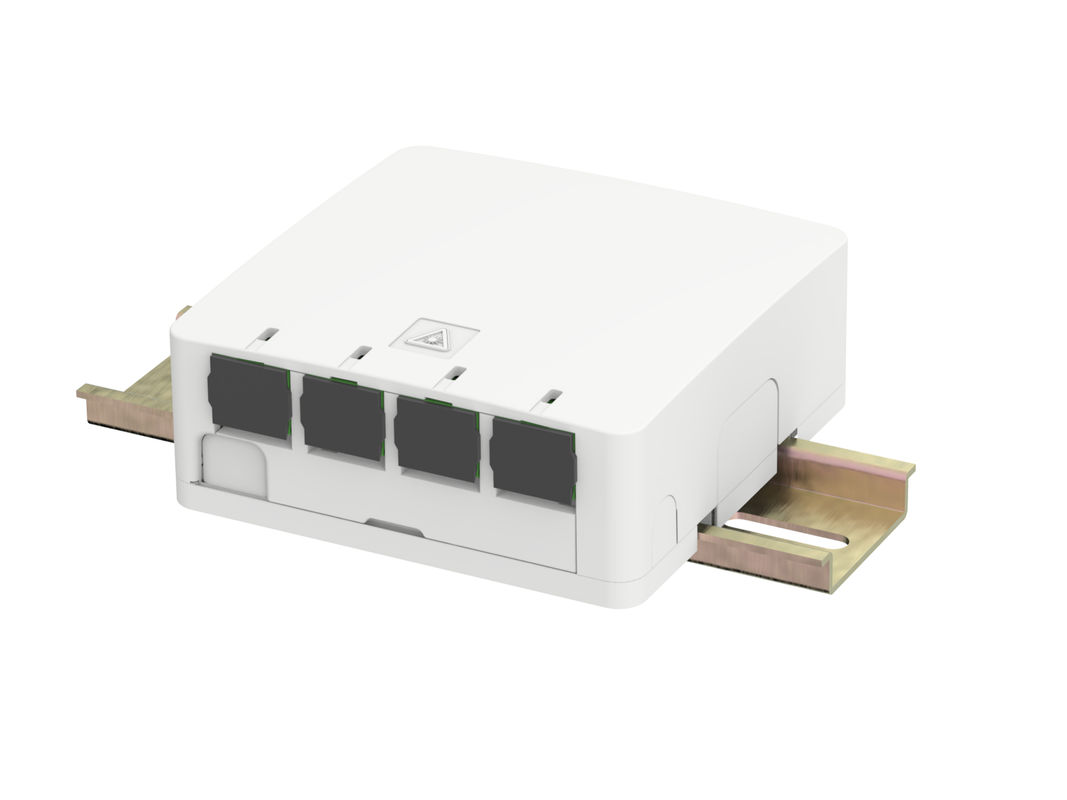

Ø Support Indoor wall mount and DIN-Rail  35mm Mounting

Ø Max capacity: 4 core,4 Mechanical Splice for drop cable

Ø Input Port Suitable Cable diameter 7-10mm.

Ø 3 Layer unique design, big space for fusion splice

       Ø small size and simple operation
       Ø Flexible termination methods:splicing+pigtail,FTTH fast connector onsite.






Specification:





Model FRB-4D
Material PC+ABS
Colour White(default)
Size (Pic 1) H x W x D = 80 x 80 x 31(mm)
Max. Adaptor Capacity 4 Ports (SC)
Empty Weight 70 G
Loaded Weight 90 G





Product Feature:



4port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 0

4port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 1

4port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 2

4port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 3

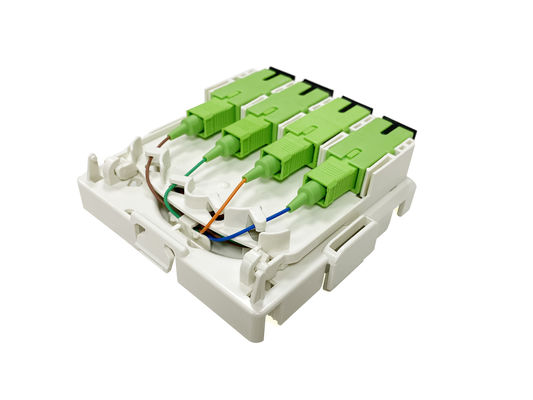

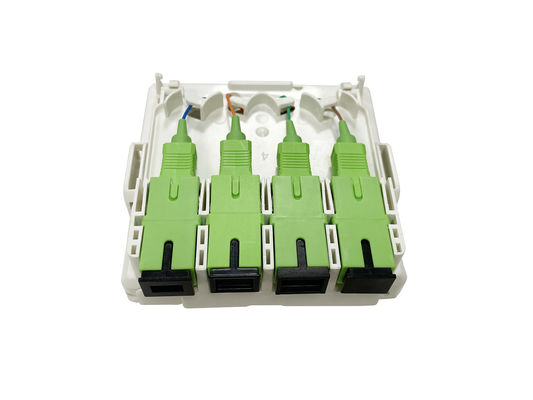

Max Capacity

This new fiber terminal box has 4 cores fusion splice capacity, is small size,light weight, unique 3-layer design, but easy to open and close,with colorful marks on the top cover to suit different operators.

4port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 4

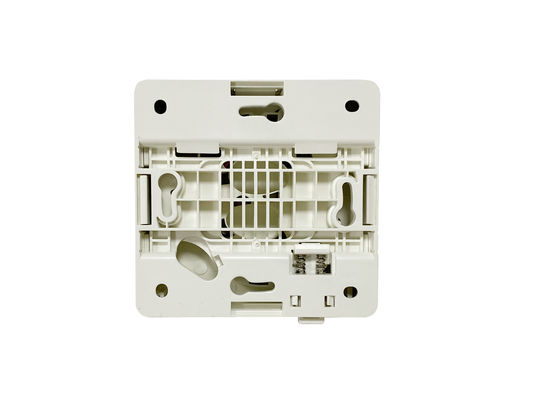

Wall Mount Plate

Unique Moveable back plate to install on wall, with 4pcs mounting holes,perfect for on site construction,it can also be used for DIN 35mm rack.

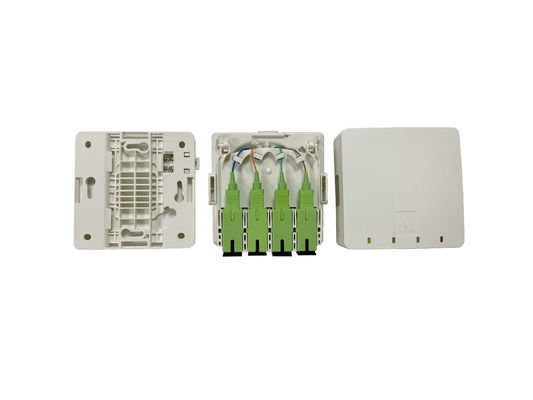

The three layers of this panel are connected to each other through buckles, without screws, making it very convenient for quick connection.

4port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 5



Pack information

Standard pack: Cardboard box+plastic bag

Standard accessory: nylon ties,wall mount screws sleeve



4port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 6

More detail pictures:

4port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 74port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 8

4port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 94port Small Indoor Fiber Termination Box For 35mm DIN Rack Mounted 10
