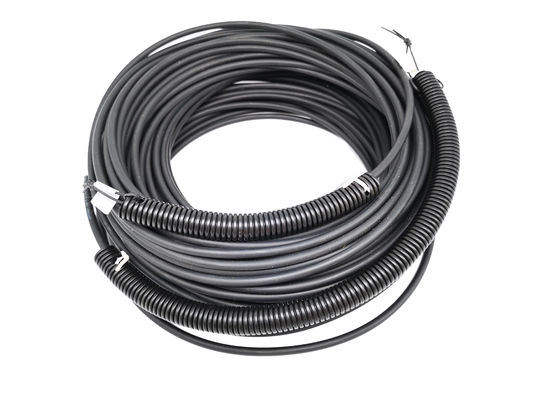

FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station

  • FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station
  • FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station
  • FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station
  • FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station
  • FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station
Place of Origin china
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number YDPC-DLC-DLC-0334-M202-070XXX
Minimum Order Quantity 500 pcs
Price negotiable
Packaging Details 1 pc/ box, 200pcs / carton box
Delivery Time 7days after payment
Payment Terms Western Union, T/T
Supply Ability 60,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector LC/UPC Fiber Count Duplex
Insertion Loss <0.3dB Cable Length Customized
Cable Diameter 7.0 Mm Fiber Type Singlemode SM 9/125um
Package Wooden Drum Cable Color Black
Appliatoin Base Station
High Light

fiber optic patch cable

,

fiber optic jumper
Leave a Message
Product Description

FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station


The DLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and
WiMax Base Station remote radios and Fiber-to-the Antenna (FTTA) applications.

Features

  1. IP65 protection,salt-mist proof
  2. Easy,reliable and cost-effective installation
  3. The connectors of Slide-A is Duplex LC and Side B can be LC, SC or FC
  4. Thread structure guarantees the trusted connection


Connector performance

ITEMPARAMTER
Fiber modeSingle modeMulti mode
Polish modeUPCAPCPC
Insertion loss≤0.2dB≤03dB≤0.3dB
Return loss≥50dB≥60dB≥35dB
Operating wavelength1310, 1550nm850nm, 1300nm
Test wavelength1310, 1550nm850nm, 1300nm
Repeatability≤0.1dB
Interchangeability≤0.2dB
Durability≤0.2dB
SFiber Length1m, 2m….. any length optional
Length and tolerance10cm
Connector typeSC FC LC ST, etc.
Operating Temperature-40C ~ +85C
Storage Temperature-40C ~ +85C

FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station 0FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station 1FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station 2
FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station 3
FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station 4

Fiber
 count

Cable
diameter
(mm)

Cable
weight
(kg/km)

Tensile(N)

Crush (N/100mm)

Mini Bend
 radius(mm)

Temperature
 range(°C)

Long
term

Short
 term

Long
 term

Short
 term

Dynamic

Static



2

7.0

42.3

200

400

1100

2200

20D

10D

-40 ~+80°C


Note:

  • All the values in the table,which are for reference only,are subject to charge without notice.
  • D is the outer diameter of the round cable
  • The tensile and crush values in the table are minimum.
  • Outer cable jacket and inner cable jacket are all LSZH material



Application

  • FTTA FTTP FTTX outdoor base station remote traction
  • RRU to BBU port interconnection
  • 3G, 4G, 5G distributed base stations
  • Power communication system, etc
  • Aerospace & Defence
  • Equipment diagnosis
  • FO sensor
  • WIMAX, BBU, RRU, RRH, LTE


FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station 5
BBU/RRU:
Optical Cable Assembly, DLC/PC,DLC/PC,Single mode 9/125um (multimode 62.5/125 50/125um),
GYFJH 2A1a(LSZH),7.0mm, 2 Cores, 0.03m/0.34m,2mm, Outdoor protected branch cable(armored type)
Length= 10m, 20m xxx Meters, A end (RRU).
FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station 6
FTTA DLC optical cable assembly 7.0mm single mode G657A2 2.0mm breakout LSZH Armored BBU RRU waterproof Base Station 7

Order information -YDPC-CTA-CTB-F1F2-FTFC-CLXXX


YDPC-CTA=Connector A-CTB=Connector B-F1=fanout length AF2=fanout length B-FT=fiber typeFC=Fiber count-CL=Cable lengthXXX=Waterproof type

YD=yingda
PC=patch cord
PG=pigtail



DLC=LC dupdx
DSC=SC duplex
...



DLC=LC dupdx
DSC=SC duplex
...



01=1CM
03=3CM
34=34CM
...

01=1CM
03=3CM
34=34CM
...



2D=G652D
A1=G65A71
A2=G65A72
M1=OM1
M2=OM2
M3=OM3
M4=OM4
M5=OM5
...

02=2core
04=4core



010=10mts
020=20mts
120=120mts
...

PDLC
ODVC
NSN
FULLAXS
H CONNECTOR
Opti-tap
Mini SC
...
XXX=no

For example:
Optical Cable Assembly,DLC/PC,DLC/PC,Multi-mode,GYFJH , 2A1a(LSZH),70m,7.0mm,2 ,Cores,0.03m/0.34m,2mm,Outdoor Protected Branch Cable
ftta patch cord DLC-DLC single mode G65A72 2core-----Part No.: YDPC-DLC-DLC-0334-M202-070XXX
