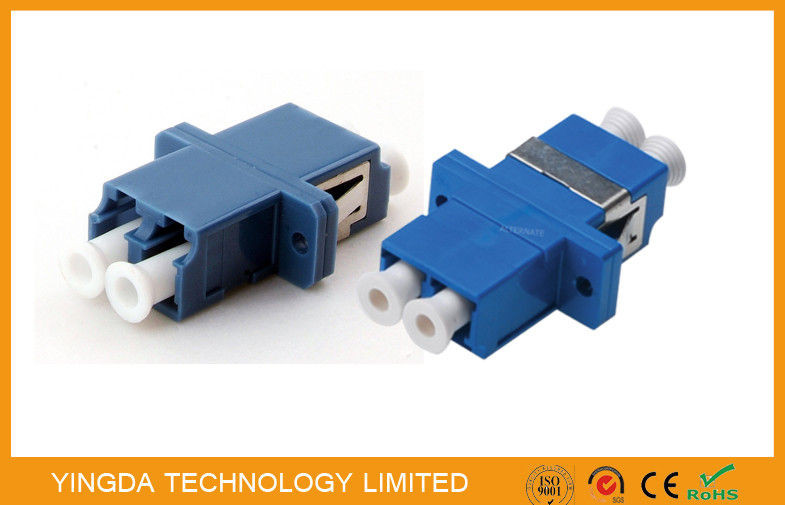

PBT Fiber Optic Adapter LC

PBT Fiber Optic Adapter LC

  • High Light

    fiber optic coupler

    ,

    bare fiber adapter

  • Fiber Count
    Duplex, Zipcord
  • Connector Material
    Plastic
  • Adapter Color
    Green. Blue, Beige, Purple, Aqua
  • Sleeve Material
    Ceramic
  • Fiber Type
    SM, MM,OM3,OM4
  • Polish Mode
    APC, UPC, PC, SPC
  • Working Temperature
    -40 ~ +85 °C
  • Wavelength
    1310nm, 1550nm,850nm
  • House Material
    PBT, ABS
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    AD-LCS-DX
  • Minimum Order Quantity
    1000pcs
  • Price
    Negotiable
  • Packaging Details
    50 pc / box
  • Delivery Time
    5 working days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    200km/ month

PBT Fiber Optic Adapter LC

PBT Fiber Optic Adapter LC Duplex SC Footprint, LC Fiber AdapterSM DX





Features

  1. Low insertion loss <0.2dB
  2. High return loss
  3. Small size, high density
  4. High precision mechanism
  5. Simple installation and operation



Application

  • Optical fiber communication room / network cabinet
  • Fiber Optic Cross Cabinet
  • CATV
  • EPON
  •  FTTP



Specification



Item

Single mode

multimode

Polish

UPC

APC

UPC

PC

Insertion loss

≤0.2dB

≤0.2dB

≤0.3dB

0.3dB

Return loss

≥50dB

≥60dB

≥50dB

≥35dB

Max. attenuation

0.4dB@1310nm

0.3dB@1550nm

0.4dB@1310nm

0.3dB@1550nm

3.0dB@850nm

1.2dB@1300nm

3.0dB@850nm

1.2dB@1300nm

attenuation

Single mode:1310nm≤0.35dB/km;1550nm≤0.25dB/km

    multimode:850nm≤3.0dB/km;1300nm≤1.0dB/km

durability

≥1000 / Matings

Working temperature

-30℃~ +70℃

Note: the parameters in the table for reference purposes only, if the numerical change without notice.



Order information



1.  End face polish: PC, UPC. APC

2. Cable type; single mode (SM= 9/125) , multimode (MM= 50/125 or  62.5/125)OM3 ;OM4

3. Cable capacity: Simplex or Duplex

4. Cable jacket: PVC,LSZH ,PU...

5. Cable diameter: 0.9mm 1.6mm 2.0mm  3.0mm 4.0mm......

6. Cable length: L=1M,2M,3M `````````(M=Meter) or customized

7. Cable color: customized





All kinds of LC adapter can be choosed:

 Simplex, Duplex, Quad, with flange or without flange,shutter type,etc.

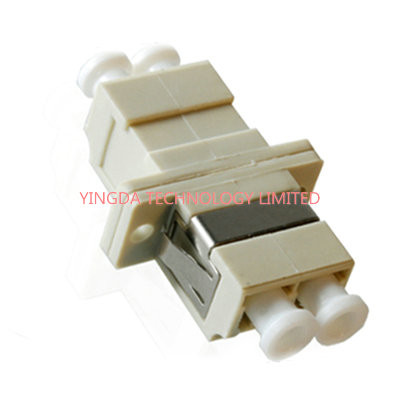

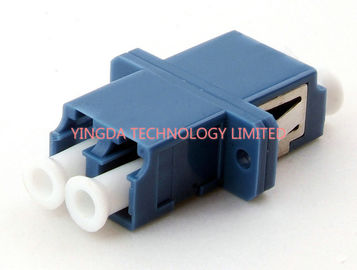

PBT Fiber Optic Adapter LC 0



More product show:

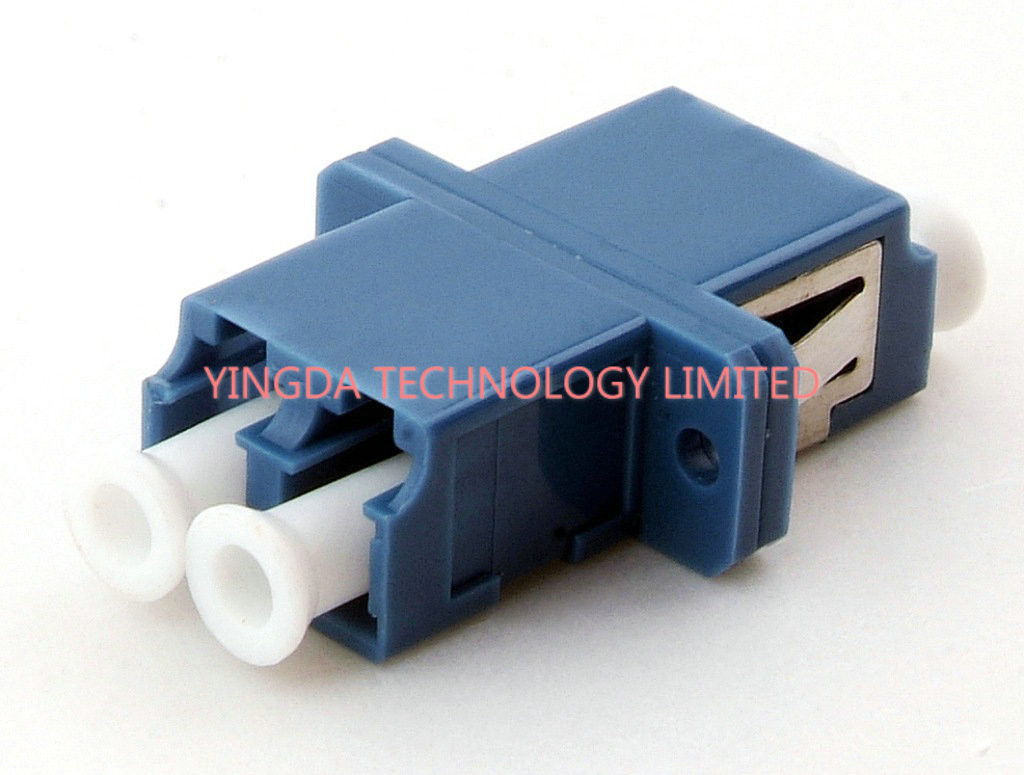

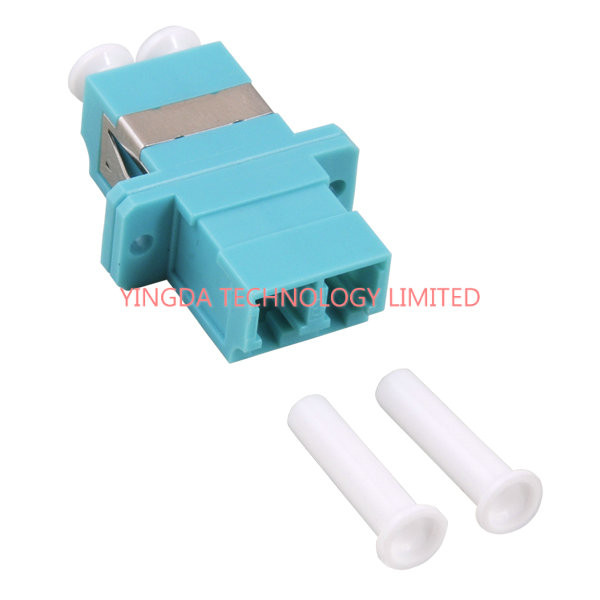

PBT Fiber Optic Adapter LC 1PBT Fiber Optic Adapter LC 2PBT Fiber Optic Adapter LC 3PBT Fiber Optic Adapter LC 4PBT Fiber Optic Adapter LC 5
