Fiber Optic Attenuator
Created with Pixso. CATV 10 dB Optical Fiber Attenuator SM SC FC LC ST MU , Single Mode Fiber Attenuator

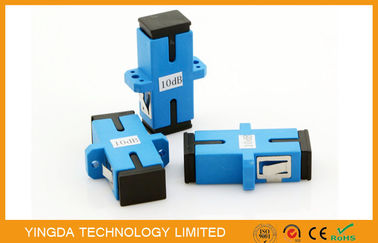

CATV 10 dB Optical Fiber Attenuator SM SC FC LC ST MU , Single Mode Fiber Attenuator

Brand Name: YINGDA
Model Number: ATTN-SCS-01-B10
MOQ: 100PCS
Price: Negotiable
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Detail Information
Place of Origin:
china
Certification:
ISO
Attenuation:
10dB
Wavelength Range:
1200-1650nm
Test Wavelength:
1310nm /1550nm
Material:
Plastic PBT/ABS
Additional Loss:
0.2dB
Working Temperature::
-40~+75 (℃)
Fiber Optic Type:
Single-mode
Standard:
GR910, IEC
Connector:
SC FC LC ST E2000 MU
Connector Color:
Blue
Product Name:
Fiber Network Adapter,fiber Optic Coupling,media Converter Adapter,microwave Attenuators,high Power Attenuators,fixed Coaxial Attenuator,hybrid Attenuator
Packaging Details:
50 pc / plastic blister box or
Supply Ability:
50,000pcs per month
Highlight:

optical fiber attenuator

,

inline optical attenuator

Product Description

CATV SC Attenuator 10 dB Optical Fiber Single Mode SM, SC FC LC ST MU





Fixed optical fiber attenuator is made of high precision standard dust. Refined. It use for a variety

of optical fiber transmission line, high precision attenuation, stable and reliable performance.

Performance characteristics have no relationship with wavelength change, can realize the adapter

and attenuator both functions.



 Due to its attenuation accuracy, high additinal loss,it is used in optical distribution frame, optical

fiber network system, the low speed optical fiber transmission system.



Optical fiber attenuator divide into flange adapter (coupler) type and Female to male or Variable

(VOA) type, according to connectors, can have MU, SC, ST, FC, LC etc..



From the microwave network point of view, attenuator is a two port lossy microwave networks.

It belongs to pass type microwave components.





FEATURES

  • Wavelength Independent
  • Low ripple
  • Excellent environmental stability
  • Design certified to more than 200mW continuous
  • Power handling capacity with no degradation in performances
  • Backreflection performance to < -55dB available
  • for UPC and < -60dB available for APC
  • Polarization insensitive



APPLICATIONS

  1. Long Haul Telecommunication
  2. Fiber in the Loop (FITL)
  3. Local Area Networks (LAN)
  4. Cable TV & Video distribution
  5. Passive Optical Networks
  6. Network Testing



Specification



Parameter

Condition

Value [dB]

Min

Typical

Max

Attenuation





1 ~ 10







15, 20



Return Loss

SPC

> 40

> 45



UPC

> 50

> 55



APC

> 60

> 65



Attenuation Accuracy

1 ~ 10



±0.5



15 ~ 20



±1.0



Operating Wavelength [nm]

1310 / 1550

Operating Temperature

-40℃ ~ +85℃

Humidity

75℃, RH 95%



CATV 10 dB Optical Fiber Attenuator SM SC FC LC ST MU , Single Mode Fiber Attenuator 0CATV 10 dB Optical Fiber Attenuator SM SC FC LC ST MU , Single Mode Fiber Attenuator 1
