SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable

SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable

  • High Light

    fiber optic jumper

    ,

    multimode patch cord

  • Connector
    SC/UPC, SC/PC Connector
  • Fiber Count
    Duplex
  • Insertion Loss
    <0.2dB
  • Cable Length
    Customized
  • Cable Diameter
    2.0 Mm
  • Fiber Type
    Multimode 50/125um OM3 10G
  • Package
    1pc/ Plastic Bag
  • Cable Color
    Aqua
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    MCP-LSF-DX01
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc/ box, 150pcs / carton box
  • Delivery Time
    7days after payment
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    60,000 pcs per month

SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable

SC- SC Mode Conditioning Patch Cord Duplex 50/125um OM3 10G Fiber Optic Cable





Description


YINGDA Mode Conditioning Duplex Fiber Optic Patch Cable (50/125um or 62.5/125um) is use in

Gigabit Ethernet 1000BASE-LX applications. When deploying new high-speed 1000BASE-LX

routers and switches in existing multi-mode backbones, mode conditioning cable are a must.

Our Mode Conditioning cables allow 1000BASE-LX Ethernet to be run over a multi-mode

fiber optic backbone by offsetting signal loss. All Mode Conditioning Fiber Optic Cables

 from the YINGDA are IEEE 802.3z compliant and completely eliminate Differential Mode

Delay (DMD).



Features

  1. Comply with the IEEE 802.3 z (Gigabit Ethernet) standards
  2. Shielding effect of differential mode delay
  3. Low insertion loss (< 0.4 dB)
  4. Suitable for 50 um and 62.5 um multimode optical fiber cable
  5. Permanent displacement seal
  6. Suitable for the current cable design

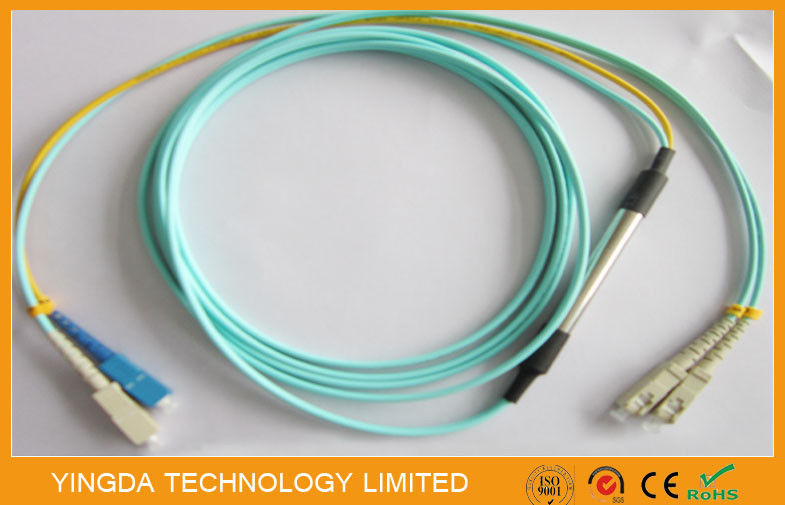

SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable 0

SC- SC Mode Conditioning Patch Cord Duplex 50 / 125um OM3 10G Fiber Optic Cable 1



Specification



Item

Multi-mode fiber(MM)

Fiber type

62.5/125um

50/125um

Average insertion loss/dB

0.4



Max insertion loss/dB

0.5



Interchangeability/dB

<0.2



Fiber offset value/um

17<offset<23

10<offset<16

Max Angle offset/°

1

1

Working temperature/℃

-20~+70



Tensile strength/kg

>10







Application

  1. Remote transmission to short transmission of one billion - bit systems
  2. The sensor
  3. Optical fiber access network
  4. Local area network (LAN)
  5. Gigabit Ethernet network - 1000Base LX wavelength (1310nm)



Order information



Item

Equipment

connector type

Plant

connector type

Fiber type

Cable

diameter

Cable

 length

MCP









FC(PC/UPC)

FC(PC/UPC)

50/125um

2.0mm

0.5meter

SC(PC/UPC)

SC(PC/UPC)

62.5/125um

3.0mm

1.0meter

LC(PC/UPC)

LC(PC/UPC)





...

ST(PC/UPC)

ST(PC/UPC)









MTRJ











We can also offer other types:
