Fiber Cable Joint Box
Created with Pixso. Blockless Fiber Cable Joint Box , 4 Port Vertical Fiber Optic Splitter Box

Blockless Fiber Cable Joint Box , 4 Port Vertical Fiber Optic Splitter Box

Brand Name: YINGDA
Model Number: GJS-2002
MOQ: 100PCS
Price: NEGOTIABLE
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T, L/C
Detail Information
Place of Origin:
china
Certification:
ISO SGS CE ROHS
Cable Ports:
4 Ports
Cable Diameter:
2ר20 Mm; 2ר40 Mm
Color:
Black
Dimension:
510*250mm
Installation Method:
Wall Mount, Pole Mount, Manhole, Underground,aerial
Splitter:
2X 1:32 Blockless PLC Splitter
Adapter:
SC 34 Pcs
Drop Cable:
34 Pcs Drop Cable Input/output
Splice Tray:
Max. 3pcs
Max Capacity:
36 Fibers
Packaging Details:
1 pc / box, 6 pcs/ carton box
Highlight:

fiber optic cable junction box

,

fiber optic cable joint box

Product Description

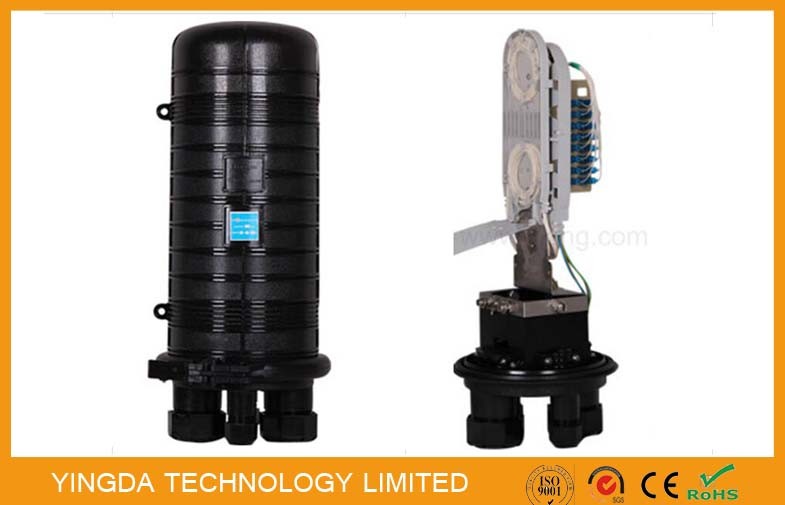

1:32 Blockless Splitter Dome Closure, 4 Ports Vertical Joint Closure







YINGDA Produce all kinds of Fiber Optic Splice Closures, inline type, dome type,

mechanical sealing or heatshrinkable sealing both ok. welcome inquiry.





 Features:

  • The closure adopts mechanical sealing structure.

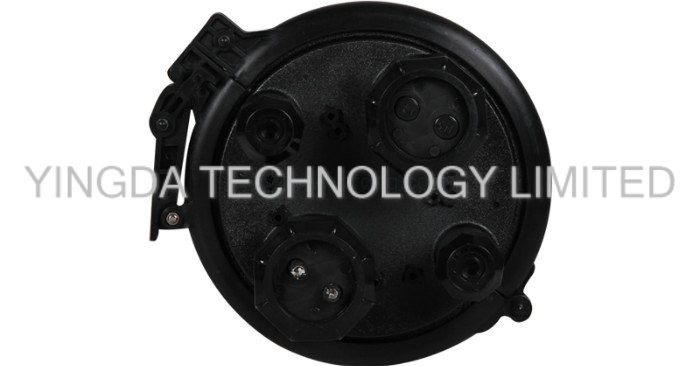

  • There is one oval shaped cable port entrances in base.
  • The big entrance is used for the sealing of uncut straight-through fiber cable,
  • the small ports are used for branch fiber cable and drop cable.
  • To adopt engineering PC plastic with high-strength to make the closure has longer life time
  • and excellent sealing performance.
  • It can be installed two 1:32 blockless PLC splitter in Max.
  • There are different drop cable elements to be chosen (Φ5,2*3).
  • Max. 34 pcs drop cable input/output (special type can be customized).
  • The patented sealing structure keep good sealing performance after re-entry and re-using.
  • It could save the installation time and improve work efficiently.



Applications:

  1. Suitable for bunchy fibers
  2. Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
  3. It's especially applicable to FTTH optical fiber distribution





Specifications



Model no.

Splice Tray

Capacity

Wiring  mdule

Qty & Max. Qty

Splitter Tray

Max.

Type of Adaptor

& Max. Qty

Max.

 Capacity

GJS-2002

(Bunchy)

3 pcs  (6-12f per tray)

1

1

SC 34 pcs

36F

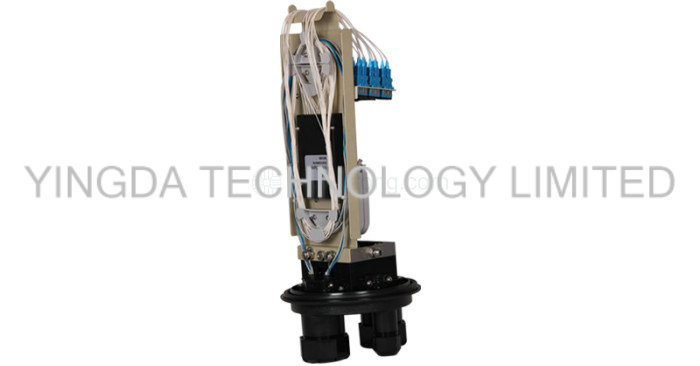

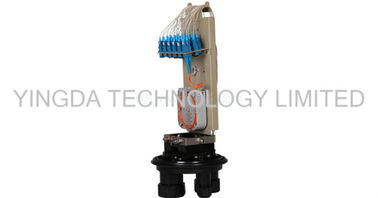

 Product structure



Blockless Fiber Cable Joint Box , 4 Port Vertical  Fiber Optic Splitter Box 0
