LC UPC Fiber Optical Attenuator Male To Female Fiber Optic 3dB 10dB 15dB 20dB
  • name
  • name
  • name
  • name

LC UPC Fiber Optical Attenuator Male To Female Fiber Optic 3dB 10dB 15dB 20dB

MOQ: 100PCS
Price: Negotiable
Standard Packaging: 1 pc / plastoc bag
Delivery Period: 3-5 days
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
ATTN-LCS-01-B04
Attenuation:
1dB - 20dB Fix
Test Wavelength:
1310nm, 1550nm
Body Material:
Plastic
Additional Loss:
0.1dB
Working Temperature::
-40～+85 (℃)
Fiber Optic Type:
Single-mode, Multimode
Industry Standard:
Telcordia TA-NWT-001209
Connector Type:
LC/UPC
Color:
Dust Cap: White, Connector Body: Blue
Connector Shape:
Female To Male Attenuator
Product Name:
Fiber Network Adapter,fiber Optic Coupling,media Converter Adapter,microwave Attenuators,high Power Attenuators,fixed Coaxial Attenuator,hybrid Attenuator
Highlight:

LC UPC Fiber Optical Attenuator

,

20dB Fiber Optical Attenuator

,

Male To Female Fiber Optic Attenuator

Product Description

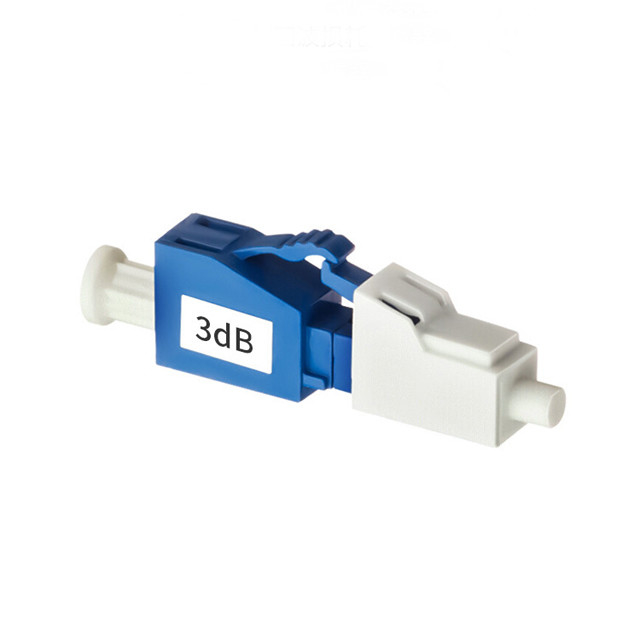

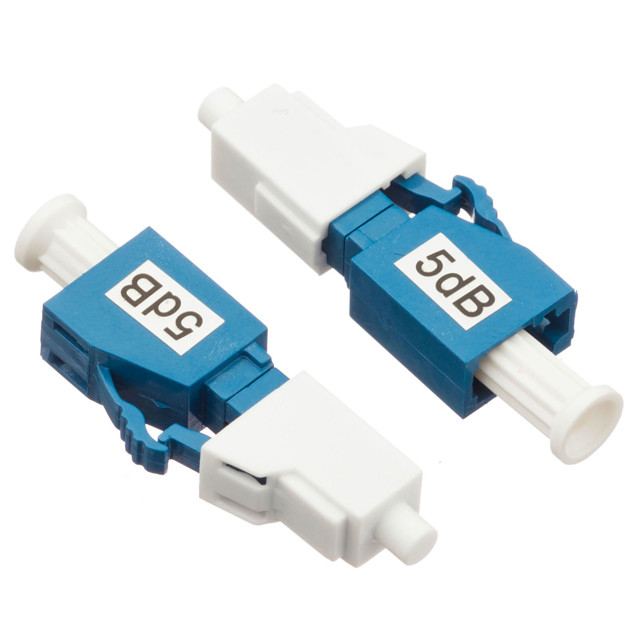

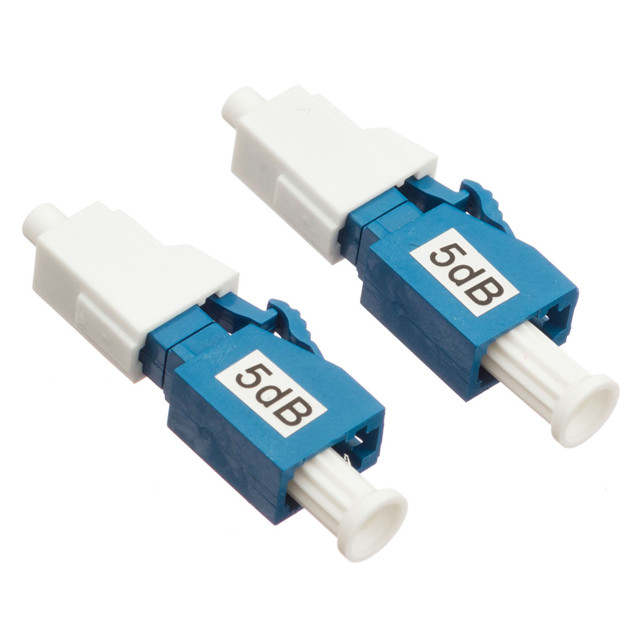

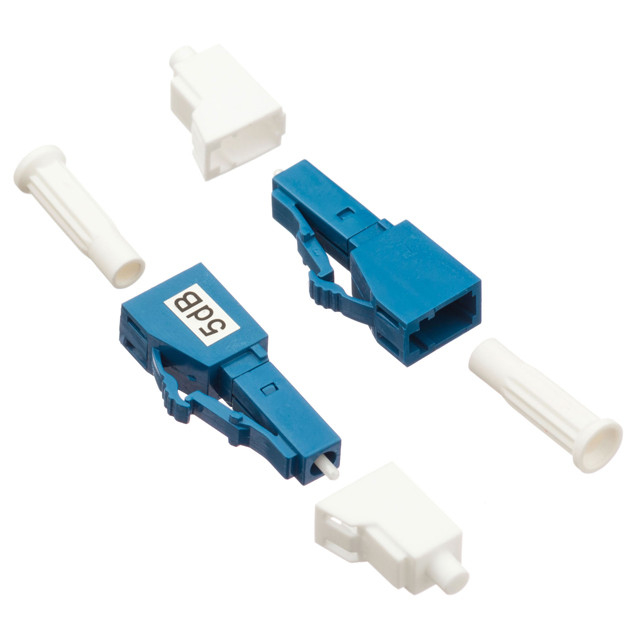

LC/PC Optical Attenuator Male to Female Fiber Optic Attenuator LC/UPC 3dB





Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.



According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

 attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB,

3dB,5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.





Features

  1. Single mode and Multimode
  2. Zirconia sleeves or Phosphor bronze sleeves
  3. NTT standard compatible
  4. Increases panel density and quick plug in installation
  5. New SC footprint for duplex and 4 way design, more compact for most patch
  6. Compliant with Bellcore GR-910-CORE
  7. All parts compliant with ROHS



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB＜±0.5 dB

5-10dB＜±10%

11-25dB＜±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃～+75℃





LC UPC Fiber Optical Attenuator Male To Female Fiber Optic 3dB 10dB 15dB 20dB 0LC UPC Fiber Optical Attenuator Male To Female Fiber Optic 3dB 10dB 15dB 20dB 1LC UPC Fiber Optical Attenuator Male To Female Fiber Optic 3dB 10dB 15dB 20dB 2LC UPC Fiber Optical Attenuator Male To Female Fiber Optic 3dB 10dB 15dB 20dB 3LC UPC Fiber Optical Attenuator Male To Female Fiber Optic 3dB 10dB 15dB 20dB 4
