FTTR Passive 1:5 Unbalanced Mini Blockless Fiber Optic PLC Splitter SC 1X5 70/30 60/40
-
High Light
fiber optic splitter
,fbt coupler
-
Split Ratio1x5 Splitter
-
ConnectorSC APC Connector
-
Fiber TypeSinglemode G657A
-
Channel 1 Insertion Loss1.9-4.6dB
-
Channel 2-514.8-9.8dB
-
Wavelength1260 - 1650 Nm
-
PDL(Max.)0.2-0.3dB
-
StandardTelcordia GR-1221 And GR-1209
-
Place of Originchina
-
Brand NameYINGDA
-
CertificationISO, CE
-
Model Number1x5 Unbalanced splitter
-
Minimum Order Quantity100 pcs
-
Pricenegotiable
-
Packaging Details1pc/ box, 20pcs/carton box
-
Delivery Time5-8days after payment
-
Payment TermsWestern Union, T/T, MoneyGram
-
Supply Ability10,000 pcs per month
FTTR Passive 1:5 Unbalanced Mini Blockless Fiber Optic PLC Splitter SC 1X5 70/30 60/40
FTTR Passive 1:5 Unbalanced Mini Blockless Fiber Optic PLC Splitter SC 1X5 70/30 60/40
Fiber Optics PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it’s compact size,these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems. Installation is simple using a variety of connector types or fusion splicing.
YINGDA supply Planar Lightwave Circuits which are key components used in FTTx networks including 1:2 1:3 1:4 1:5 :6 1:12 1:24 1:32 1:64 1:128 and 2:2 2:4 2:8 2:24 2:32 2:64 etc. It is with a wide range of working wavelength from 1260nm to 1620nm. The PLC splitter can be with optional various kinds of connectors and cable length, they feature compact size and very good optical performance.
Nowadays FTTR fiber optic network need more unbalanced split ratio, so our unbalanced splitter with chips instead of fusion couplers emerge and graduallly in big demand on market.
1:5 Optical Splitter Features
- One-stop Solution Provider for Fiber OpticTelecommunication Connectivity Industries.
- 10 years manufacture experience
- Meet the standard of Telcordia GR-1209-core,GR-1221-core
- Factory price;
- Certified by CE,ROHS,ISO,SGS,TLC;
- 1xN,2xN optional;
- Low insertion loss, Low PDL and High reliability
- High return loss and Good repeatability
- Wide wavelength range
1x5 Mini Unbalanced Splitter Specification
| Split ratio (%) | 75/25 | 67/33 | 50/50 | 5/95 | 85/15 | 80/20 | 60/40 | 40/60 | ||
| Operating wavelength (nm) | 1260-1650 | |||||||||
| Fiber type | G657A or customized | |||||||||
| IL max(dB) | channel 1 | 1.9 | 2.5 | 3.9 | 16.3 | 1.7 | 1.8 | 2.8 | 4.6 | |
| channel 2-5 | 14.8 | 13.1 | 10.5 | 7.5 | 16.5 | 15.1 | 12.0 | 9.8 | ||
| IL uni(dB) | Channel 2-5 | 0.9 | 0.9 | 0.9 | 0.9 | 1.8 | 1.8 | 1.8 | 1.8 | |
| Return loss (dB) | ≥55 | |||||||||
| Directivity (dB) | ≥55 | |||||||||
| PDL (max.) | 0.2 | 0.3 | ||||||||
| Uniformity (max.) | 0.8 | |||||||||
| Wavelength dependent loss (dB) | ≤0.3 | |||||||||
| TDL (max.) | 0.5 | |||||||||
| Operating temperature | -40 ~+85 | |||||||||
| Storage temperature | -40 ~+85 | |||||||||
| Dimension (mm) / LXWXH | Bare fiber | 60x7x4 | ||||||||
| 900um | 60x7x4 | |||||||||
| ABS box | 120x80x18 | |||||||||
1x5 unbalanced splitter can be with different split ratios to meet different requirements, except balanced. All datas can be meet by PLC CHIPs, not need to fusion splice, which may be fiber broken or not stable during long time transporation or temperature change.
In order to distinguish split channel or ratio on site construction by human eye, output loose tube pigtails 900um use differnt color, for example blue, the rest to use white. Colorful is accpetable, sample is available. When order, please advice.

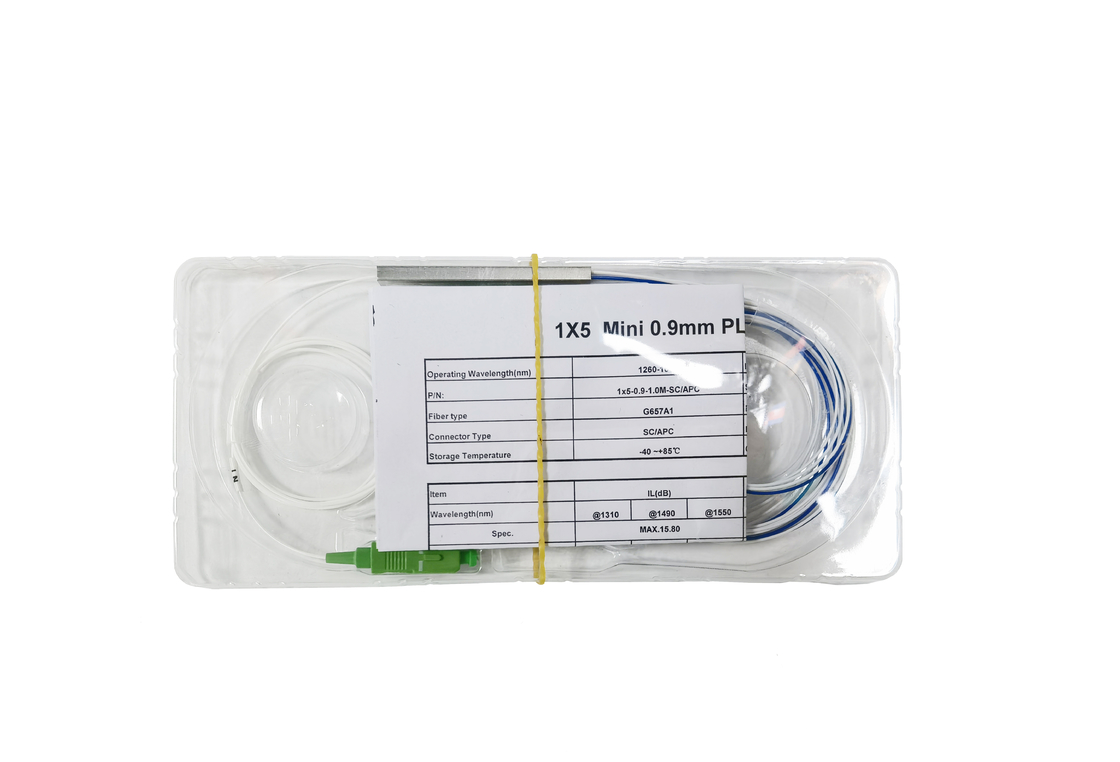

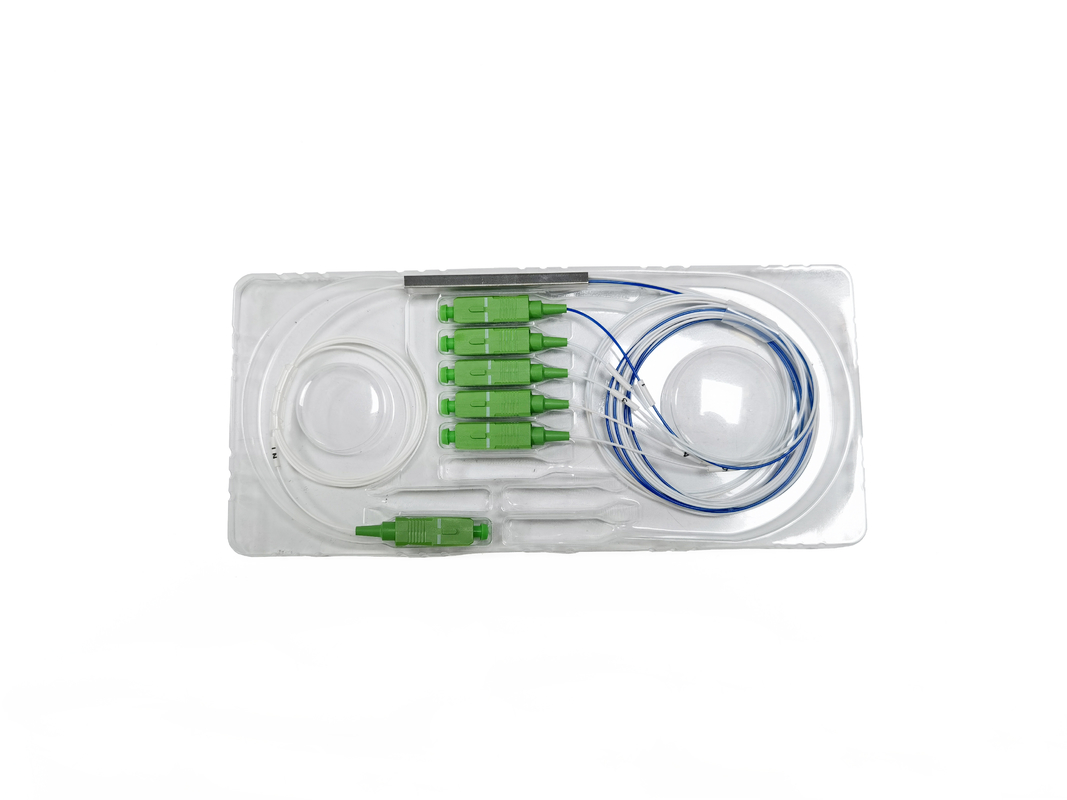

The steel tube is standard size, not special, whic ease on site construction and uniform. There will be a sticker on steel tube if customer need. OEM is ok. When delivery, it will be fix on the blister box slot which is especially design, not movable to make the fiber in safe.
Input and output connectors can be customized, SC FC LC ST with UPC, APC polish.
There will be number ring to distinguish, input with IN.
If output with colorful loose tube, there will be no number rings, pls kindly note.
- Unique blister box deisgn, all connectors will be put in slots to make it in place during transporation, better protection than plastic bag or foam. Transparent materials make it visible to check.
- Reasonable bend radius ensure good optical performance.
- Each 1x5 plc splitter will be deliver with test report included.
1*5 PLC splitter Application
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
1x5 Unbalanced Splitter Compliance
- Telcordia GR-1209-CORE
- Telcordia GR-1221-CORE
- RoHS
