SC / LC Fiber Optic Termination Box 4 Port

SC / LC Fiber Optic Termination Box 4 Port

  • High Light

    fiber optic terminal box

    ,

    fiber optic distribution box

  • Material
    Metal
  • Color
    Black
  • Max Capacity
    4 Fibers
  • Adapter
    SC/LC
  • Cable Ports
    2 Pcs
  • Application
    FTTH FTTX FTTB ODN PON Network
  • Dimension
    16*10*3.5cm
  • Thickness
    0.6, 0.8, 1.0mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    WTB-S04
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1pc / box, 10pcs / carton box
  • Delivery Time
    5days after payment
  • Supply Ability
    500,000 pcs per month

SC / LC Fiber Optic Termination Box 4 Port

SC / LC Fiber Optic Termination Box , 4 Port Wall Mount Terminal Box 4 Fibers​





Description



Fiber Optic Cable terminal box is use for connecting small capacity cable with the terminal.

It has the function of fixing fiber optic cable and welding.



Features

  1. Electrostatic spraying, beautiful appearance, easy to operate.
  2. Equip with cable fixed device, splice tray, thread ring.
  3. Splice tray use superposition structure,max capacity 96core,ribbon fiber up to144cores.
  4. It can insulate the cable metal parts and the terminal box shell and with grounding device
  5. Have enough space for terminal placement and remaining fiber storage.
  6. Size is customize



Specification



Model

Capacity

/ core

Size

/ mm

Remark

WTB-S04

4

190*100*35

  1. White/Black;
  2. Box body for cold-rolled sheet,
  3. surface electrostatic spraying,
  4. 4/8 /12/24 adapter exports,
  5. suitable for FC, SC, ST

WTB-S08

8

260*130*40

WTB-S12

12

268*138*46

WTB-S24

24

265*140*60

WTB-S8P

265*140*45

Plastic SC adapter output 8ports





Technical parameters



Environment temperature

-25~+45°C

Relative humidity:

≤85%( 30°C)

Atmosphere pressure

70-106KPa

Insulated Resistance

≥2×10MΩ/500V (DC)

Intensity:

≤15KV(DC)/1min no spark-over and no flying arc

Bending radium

≥40mm



ApplicatIon

  • Telecommunications
  • Local Area Networks
  •  FTTH deployment
  • CATV

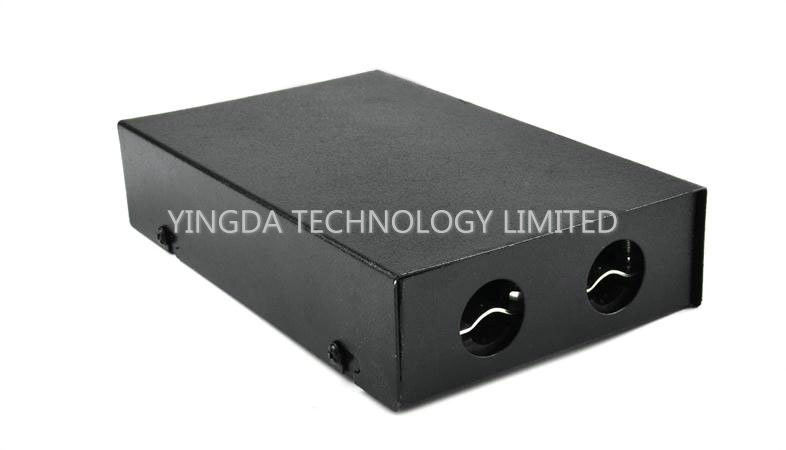

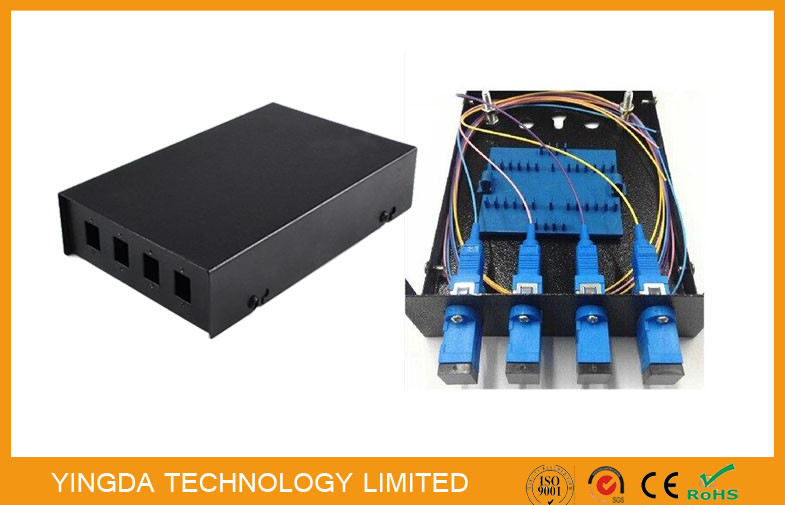

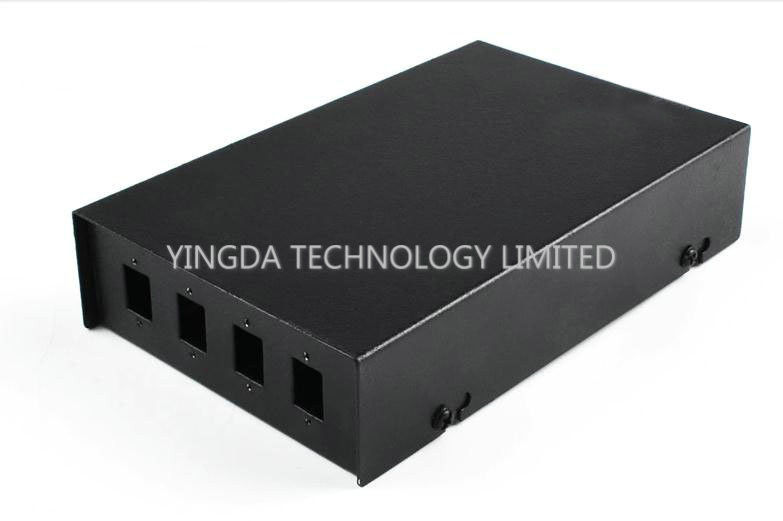

SC / LC Fiber Optic Termination Box 4 Port 0SC / LC Fiber Optic Termination Box 4 Port 1SC / LC Fiber Optic Termination Box 4 Port 2



Other types:

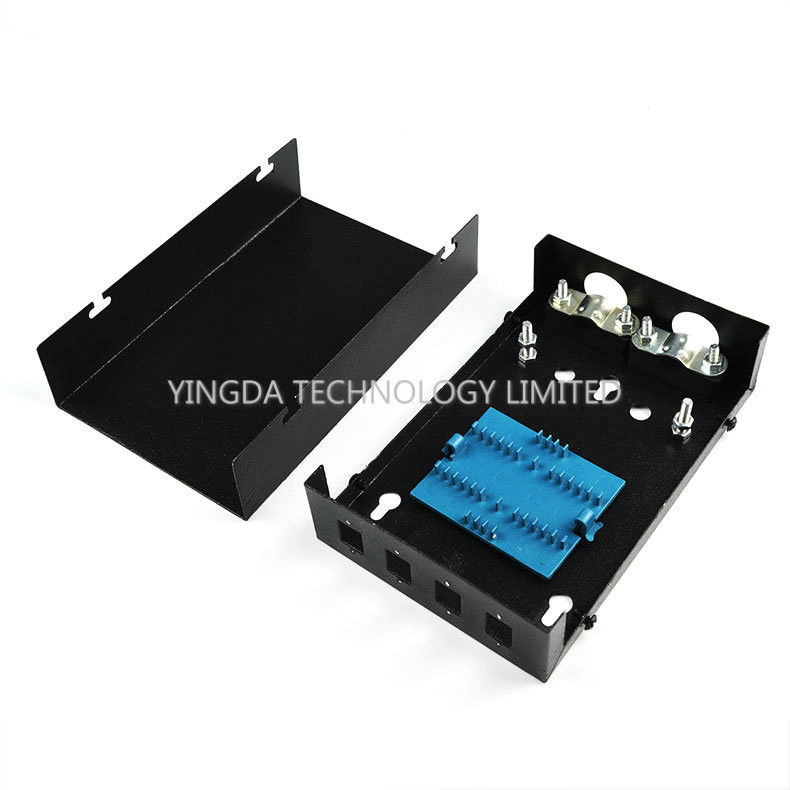

SC / LC Fiber Optic Termination Box 4 Port 3SC / LC Fiber Optic Termination Box 4 Port 4
