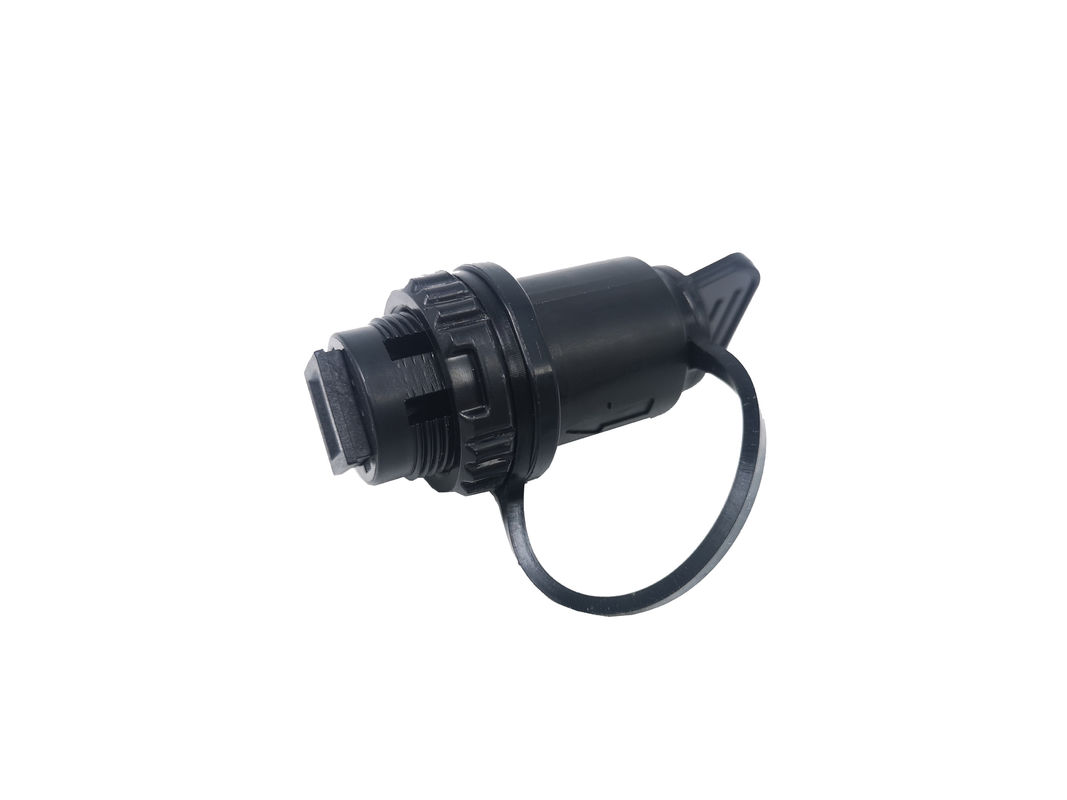

FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler

FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler

  • High Light

    IP67 Fiber Optic Adapter

    ,

    FTTA Fiber Optic Adapter

    ,

    IP67 SC Adaptor

  • House Material
    ABS
  • Color
    Black, Green, Red
  • Fiber Count
    1 Core / Single Fiber
  • Sleeve Material
    Ceramic / Zironic
  • Fiber Type
    Single Mode
  • Flange
    No Flange
  • Polish Mode
    APC
  • Feature
    Huawei Compatible
  • Insertion Loss
    <0.25dB
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO, CE
  • Model Number
    YDAD-SA01H
  • Minimum Order Quantity
    10PCS
  • Price
    Negotiable
  • Packaging Details
    25pcs/box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    200K per month

FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler

FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler



FTTA IP67 Outdoor Waterproof Huawei Compatible Mini SC Adaptor Adapter Coupler Black

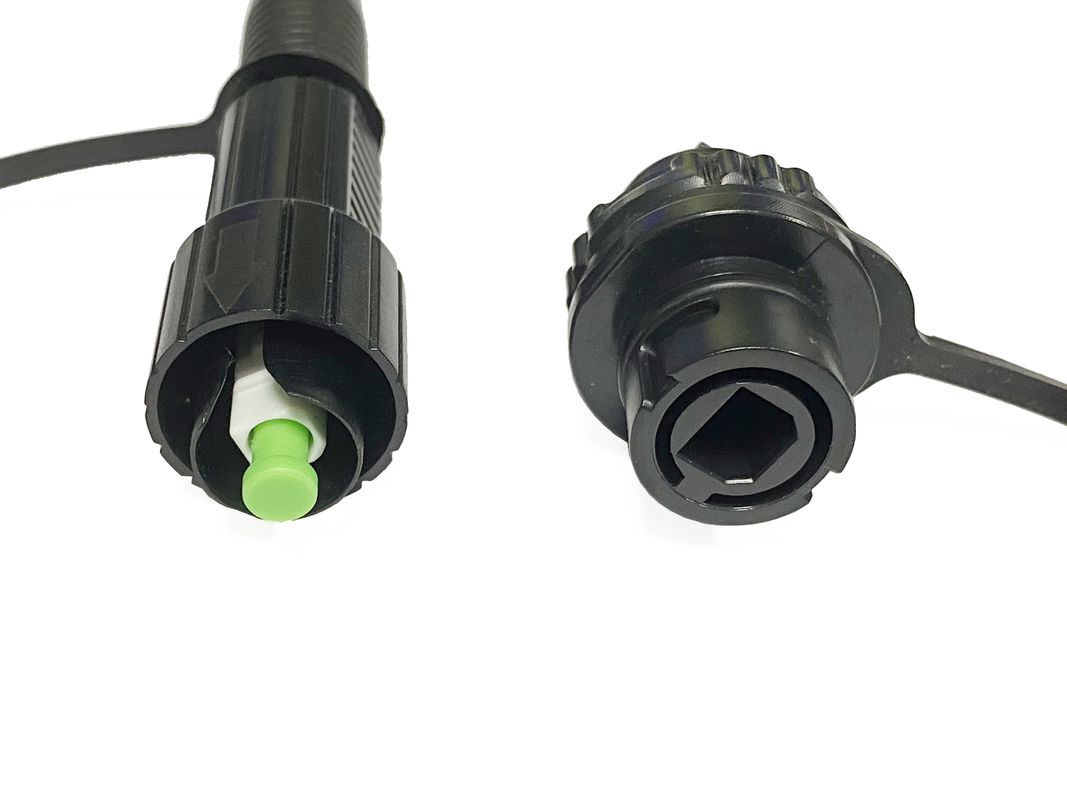

This optical adapter is compatible with HUAWEI MINI SC connectors, easy and fast to operate. It is environmental seal and mechanical protection for 1 fibers simplex SC interface connection. Inside cover can protect ferrule end face far away scratch when mating with receptacle; One hand Bayonet-style mechanical latch. It provides quick installation solutions and has good performance on mating receptacle / Adapter. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side application.



FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler 0

Features

  • IP-67 water and dust protection
  • Low profile in-line receptacle available
  • Can be installs without special tool, faster network roll out and customer installations
  • 100% tested before delivery, built in a controlled environment
  • Provides superior weather resistance for FTTA and other outdoor applications
  • Allows flexibility to use with NAP box, CTO box, enclosure boxes
  • Lower cost deployment by utilizing plug and play solutions.



FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler 1FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler 2

FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler 3



Application

  • Telecom networks 5G tower
  • CATV, LAN, WAN
  • Broadband networks
  • CPRI, FTTP, FTTA solution



FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler 4



FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler 5

FTTA IP67 Fiber Optic Adapter Huawei Compatible Mini SC Adaptor Coupler 6





key word: huawei mini sc adapter, mini sc adaptor, sc adapter, sc coupler
