1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp

1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp

  • High Light

    fiber optic junction box

    ,

    fiber optic distribution box

  • Material
    PC ABS
  • COLOR
    WHITE
  • Size
    86*86*23mm
  • Application
    Ftth Indoor Wall Mounted
  • Fusion Capacity
    1cores
  • Adapter Qty
    1 SC/UPC Adaptor
  • Product Name
    Fiber Optic Termination Box
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    FTB86-ISCU
  • Minimum Order Quantity
    500pcs
  • Price
    negotiable
  • Packaging Details
    1pc/plastic bag, 50pcs/inner box, 200pcs/carton box
  • Delivery Time
    3-5days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    500k pcs per month

1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp

1 Port PP Ftth Optical Fiber Termination Box SC UPC Socket Panel With Metal Cable Clamp





Feature

  • Standard 86 type panel, small size and simple operation
  • Large arc-shaped winding column to avoid the potential damage risks
  • UL94 V1 flame retardance complied (UL94 V0 is available upon request)
  • Multi-function optical fiber socket for a variety of cables and multi-mode access
  • Flexible termination methods: splicing + pigtail, mechanical splice + pigtail, fast connector on site.



Cable structure

1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp 0

Application



  • Wall mount
  • Suitable for 2*3mm FTTH Drop Cable



Configuration



Material Size Max. Capacity Empty Weight Loaded Weight Color
PC+ABS

H*W*D (mm)

86*86*27

SC: 2 ports LC: 4 ports 0.2kg 0.3kg

White





Real product pictures:



1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp 1   1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp 2

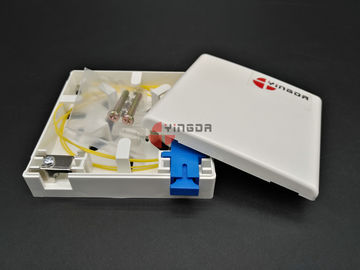

Front: 1 SC port, 1 cable entry port with metal fix.

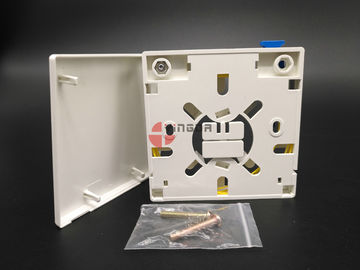

Back: 2 wall mount hole at middle, deliver in accessory bag

cover and bottom is seperated, can be take off by hand easily.



1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp 3   1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp 4



box+1 SC/UPC pigtails 50cm long  900um yellow G65A71 LSZH+ 1 piece SC/UPC adapter with flange

adapter and pigtails can be pre-terminated at factory,and test all technical parameters is ok, then can make shipment.



1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp 5   1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp 6



the metal cable fix component can make the entry cable tightly in long run, and SC adapter is PEI material, zinc rolly housing connectors, three circle ferrrule, good sleeve, make sure long life span.



1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp 7   1 Port PP Ftth Fiber Optic Termination Box SC UPC Socket Panel With Metal Cable Clamp 8



Package information:  1pc / plastic bag, 50 pcs/ small box, 200 pcs / carton box.







We have many types of 86 ftth box for wall mounted indoor cable distributino and termination. see below in details:

if u have any new questions or inquiry, please don't forget to contact us at once
